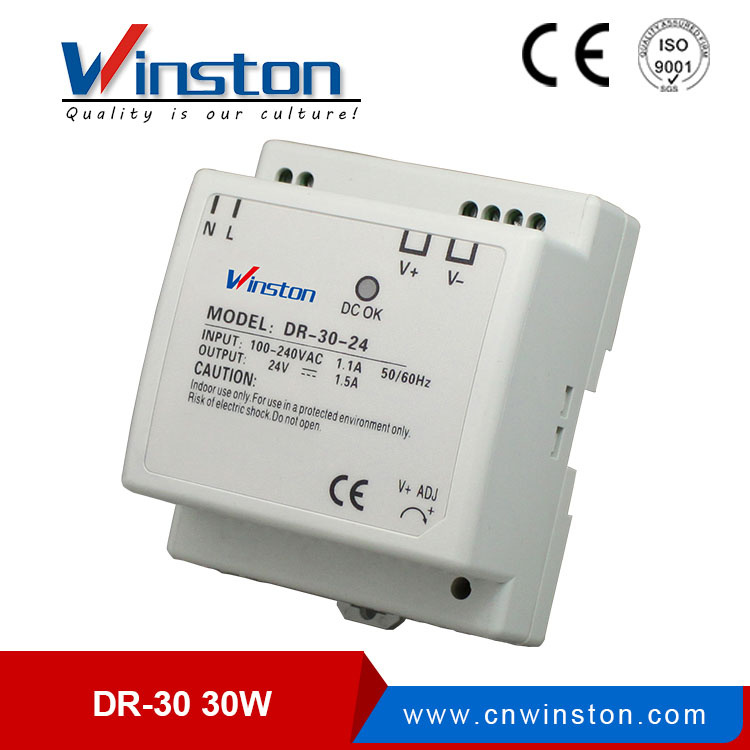

DIN Rail Single Output Switching Power Supply with Ce (DR-30W-5 DR-30-12 DR-30-15 DR-30-24)

DIN Rail Single Output Switching Power Supply with Ce (DR-30W-5 DR-30-12 DR-30-15 DR-30-24)
Price: US $ 8-9.46/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: DR-30
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe
Antistop: Switching Power Supply
Workmanship: The Exquisite German Technology
Dimensions: 78*93*56mm
Test: 100% Full Load Burn-in Test
Output Type: Single
Warranty: 2 Years
Input Voltage: Full Range
Connection Mode: Series Switching Power Supply
Starting Mode: Separate-excited Switching Power Supply
Voltage Regulating Mode: Width Modulation Type
Power Supplying System: Level 1 Power Distribution Equipment
Certification: RoHS
Output Power: 30W 45W 60W 75W 120W 240W 480W
Brand: Winston

Product Description

DIN Rail switching power supply

1. Features:

Universal AC input/ full range
Protections: Short circuit/ Over load/ Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
Solation class 2
LED indicator for power on
100% full load burn-in test
2 years warranty
Dimensions: 78*93*56mm (W*H*D)

Specifications:


 MODEL

DR-30-5

DR-30-12

DR-30-15

DR-30-24








    OUTPUT






DC VOLTAGE

5V

12V

15V

24V

RATED CURRENT

3A

2A

2A

1.5A

CURRENT RANGE

0-3A

0-2A

0-2A

0-1.5A

RATED POWER

15W

24W

30W

36W

RIPPLE & NOISE (max.) Note.2

80mVp-p

120mVp-p

120mVp-p

150mVp-p

VOLTAGE ADJ. RANGE

4.75-5.5V

10.8-13.2V

13.5-16.5V

21.6-26.4V

VOLTAGE TOLERANCE Note.3

±2.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION

±1.0%

±1.0%

±1.0%

±1.0%

LOAD REGULATION

±1.0%

±1.0%

±1.0%

±1.0%

SETUP, RISE TIME

800ms, 60ms,50ms/230VAC at full load

HOLD UP TIME (Typ.)

100ms/230VAC     21 ms/115VAC at full load





     INPUT



VOLTAGE RANGE

85 ~ 264VAC     120-370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

74%

81%

82%

83%

AC CURRENT (Typ.)

0.88A/115VAC 0.48A/230VAC

INRUSH CURRENT (Typ.)

COLD START 15A/115VAC,30A/230VAC



 PROTECTION



OVERLOAD

105 -160% rated output power

Protection type: Constant current limiting, recovers automatically after fault condition is removed

OVERVOLTAGE

5.75-6.75V

13.8-16.2V

17.25-20.25V

27.6 -32.4V

Protection type: Shut down o/p voltage, re-power on to recover





ENVIRONMENT



WORKING TEMP.

-10ºC ~ +50ºC (Refer to "Derating Curve")

WORKING HUMIDITY

20 - 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85"C, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/"C (0 ~ 50'C)

VIBRATION

10 ~ 500Hz, 2G 10min./1 cycle, period for60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6


    SAFETY &
       EMC
    (Note 4)


SAFETY STANDARDS

Design refer to EN50178

WITHSTAND VOLTAGE

l/P-0/P:1.5KVAC l/P-FG:1.5KVAC 0/P-FG:0.5KVAC

ISOLATION RESISTANCE

l/P-0/P:100M Ohms / 500VDC / 25'C/ 70% RH

EMC EMISSION

Compliance to EN55011, EN55022 (CISPR22) Class B, EN61000-3-2,-3

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A


    OTHERS


MTBF

441,5K hrs min. MIL-HDBK-217F (25'C)

DIMENSION

78*93*56mm (W*H*D)

PACKING

0.27Kg; 45pcs/14Kg/1.02CUFT






      NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 "c of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor.
3.Tolerance : includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
