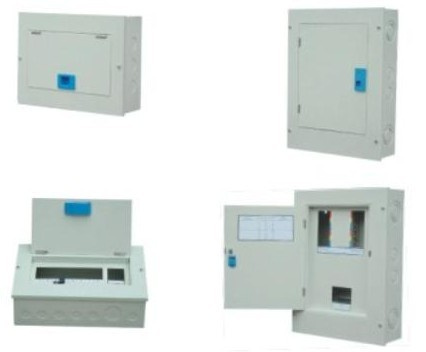

DIN Rail Type Distribution Board

Prod Model:	MDS, MDT, MDD, MDB, MEA, MEB, MEC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension:	Customized
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	CB
Poles Number:	Customized

Product Description

Mounting Box Enclosure Box
Specifications
1. Metal enclosure and door, Mounting plate
2. Bar Lock, Polyurethane door seal
3. Himel type
4. Degree protection: IP65
Standard configuration:
Enclosure and door
Mounting plate
Bar Lock
Polyurethane door seal
Cable gland plate and gasket
Degree of protection: IP66 to E N60529
External mechanical impact resistance: I K10
Surface treatment:
Textrured epoxy polyester powder coating

Material and color:
Body and front door: Cold roll steel to paint in RAL7032
Mounting plate: Galvanized steel or plain steel to paint in RAL2004 smooth finish

Model	H (mm)	W(mm)	D(mm)
ME252015	250	200	150
ME302015	300	200	150
ME302515	300	250	150
ME302520	300	250	200
ME303015	300	300	150
ME303020	300	300	200
ME403015	400	300	150
ME403020	400	300	200
ME404020	400	400	200
ME503015	500	300	150
ME503020	500	300	200
ME503025	500	300	250
ME504015	500	400	150
ME504020	500	400	200
ME504025	500	400	250
ME504030	500	400	300
ME505020	500	500	200
ME604015	600	400	150
ME604020	600	400	200
ME604025	600	400	250
ME605015	600	500	150
ME605020	600	500	200
ME605025	600	500	250
ME606025	600	600	250
ME606030	600	600	300
ME705020	700	500	200
ME705025	700	500	250
ME705030	700	500	300
ME806020	800	600	200
ME806025	800	600	250
ME806030	800	600	300
ME808020	800	800	200
ME808030	800	800	300
ME1006025	1000	600	250
ME1000630	1000	600	300
ME1008025	1000	800	250
ME1008030	1000	800	300
ME10010030	1000	1000	300
ME1208030	1200	800	300
ME12010030	1200	1000	300
