DIN Singlemode Multimode Fiber Optic Connector

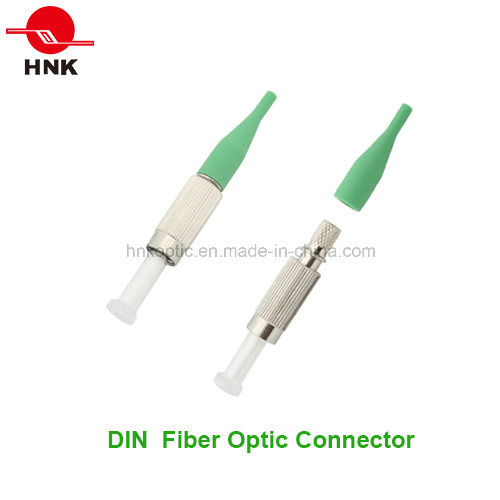

Name: DIN Singlemode Multimode Fiber Optic Connector
Brand: all-electronics-online.com
SKU: 786040035
Availability: InStock
Rating: 4.3 (22 reviews)

Price:	US $ 0.7/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DIN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connector Boots Diameter:	0.9mm
Fiber Count:	Simplex
Connector Ferrule:	Ceramic
Coupling Type:	Screw Thread Fitting
Ferrule Diameter:	2.5mm
Structure:	DIN
Number Of Cores:	Single-Core
Application:	Fiber Optic Network Connection
Connector Type:	DIN
Brand:	HNK or OEM

Product Description

Fiber Optic Connectors are an important component in a fiber optic network; they are used on
a fiber optic patch cord or pigtail with an adaptor to make connections. In order to achieve
accurate and precise connections of the fiber ends, very high quality ceramic components are
used. Fiber optic connectors made with precision and high quality ceramic components provide
a high reliability connection when used with the various adapters. We make sure that every
connector that leaves our production is tested and performs as per the international standards.

Features
.   High quality ceramic components and Material
.   End-face geometry requirement complies to Telcordia GR-326-CORE
.   100% tested on optical performance (Insertion Loss & Return Loss)
.   Simplex, duplex and higher core densities
.   900 micron, 2mm, 3mm cable applications

Optical Performance Data

Item	Single mode			Multimode
	PC	UPC	APC	62.5/125	50/125	50/125 10G
Insert Loss/connector (single Fiber)	0.3dB Max. (0.2dB typ.)			0.3dB Max. (0.2dB typ.)
Return Loss	≥45 dB	≥50 dB	≥60 dB	PC≥35dB
Insert Loss/MTRJ Connector	0.5dB Max. (0.45dB typ.)			0.5dB Max. (0.45dB typ.)
Pull Strength	≥98N			≥98N

Shenzhen HNK Optics Co., Ltd. (hereinafter referred to as "HNK") is a leading professional Fiber Optic and Data connectivity solution supplier and exporter from China. We focus on producing Fiber Optic Equipment, passive components and assemblies to the customer worldwide. With over 10 years experiences in massive production of Fiber Optic product the reliable stabilities of its high quality and excellent performance of its products. HNK has been continually growing and expanding the product lines to keep up the pace of industry trends.

HNK' S ISO9001 certified factory in Shenzhen, China, which occupy over 2000 square meters, with over 100 experienced workers, and 10 technical staffs, with advanced test equipment and facility. All HNK products are 100% visually and optically tested and are fully traceable through our ISO9001: 2008 certified quality system, also meet the standards of organizations such as Telcordia-326-CORE, ANSI/TIA/EIA, ISO/IEC 11801 and IEEE.

HNK' S knowledgeable sales, strong R&D team are dedicated to understanding your requirements and designing products & solutions to meet your needs.

HNK obtains the good reputations all these years from customer worldwide, for short lead time, fast and on-time delivery, excellent products quality, competitive price and good services.
