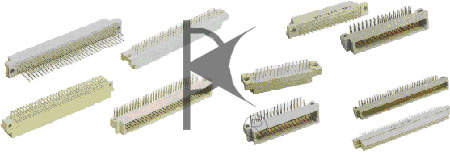

DIN41612-C Series Rectangular Connectors

Name: DIN41612-C Series Rectangular Connectors
Brand: all-electronics-online.com
SKU: 121343
Availability: InStock
Rating: 5 (109 reviews)

Price:	US $ 1.7-1.9/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	C Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	C96
Size1:	C48
Size2:	B64
Size3:	B32
Type:	Socket Terminals
Application:	Transmission of Electrical Signals
Material:	Plastic Boday
Certification:	CE
Brand:	Kaipu

Product Description

C series rectangular connectors is a kind of product providing the assurance of high quality and reliability. It's manufactured in strict accordance with IEC603-C and DIN41612. The termination type of this series is solder and wrap. The connector is interchangeable with the similar ones of foreign brands. On the basis of these series we also designed and manufactured the C/2 series, B series, B/2 series to meet your specific requirement.

Product Ordering

C / 96 / - M / S

                       1     / 2          /   3      / 4
      1. Name of series:      C,C/2,B,B/2
      2.Number of contacts: 32,48,64,96
      3. M-male connector,F-female connector
      4. S-solder,W-wrap

Technical characteristics

Temperature	Relative humidity	Atmosphere	Vibration	Shock
-55°C~+125°C	(90~95)% at40+2°C	101KPa~6.7Pa	5~500Hz,100m/s²	10~40strokes/min 250m/s²

Current	Voltage	Contact resistance	Endurance
1A	250V	≤15mΩ	500cycles

Environment	Voltage proof	Insulation resistance
Normal	1000V	≥1000MΩ
High temperature	1000V	≥500MΩ
Moisture	500V	≥50MΩ
Low pressure	200V	-

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
