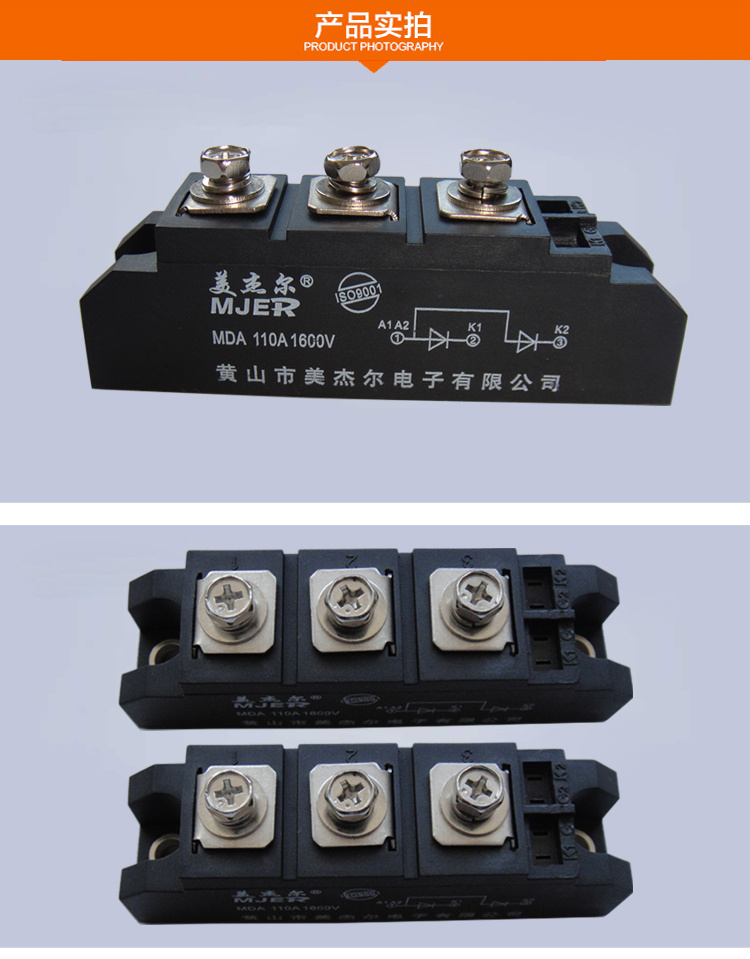

Diode Module Mda 110A 1600V

Diode Module Mda 110A 1600V
Price: US $ 6.5-7/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: MDA110A1600V
Life: Over 1 Year
Certificates: Ce, ISO9001:2008
Payment: T/T, L/C, Paypal
Lead Time: 15days
MOQ: 10
Manufacturing Technology: Optoelectronic Semiconductor
Material: Compound Semiconductor
Type: Intrinsic Semiconductor
Package: Standard
Application: Motor Control, Lighting Control
Model: Mda
Brand: Mjer

Product Description

Feature:
The chips are electrically insulated from bottom plate 2500V AC voltage.
Packaged as per international standard.
Complete pressure connection structure , with excellent temperature characteristics and power cycling capacity.

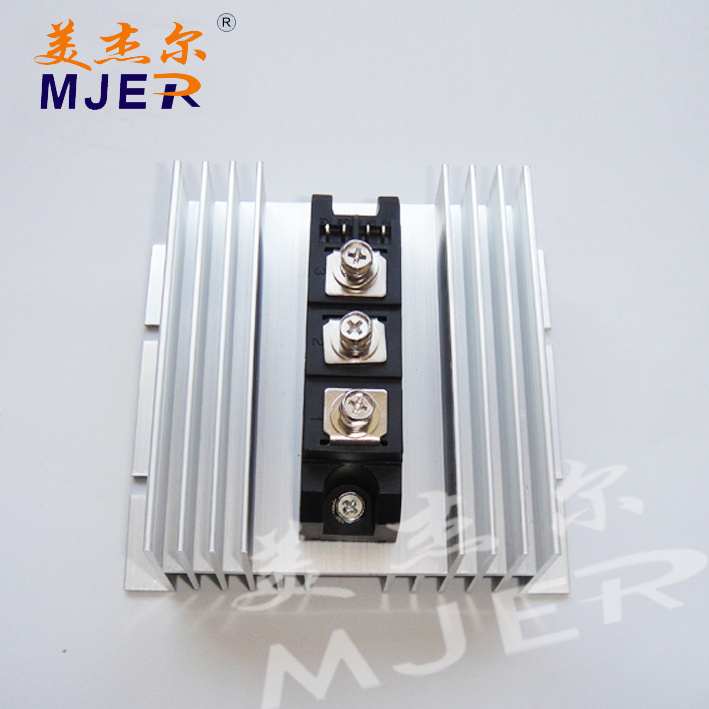

Forced air cooling for modules below 400A and air cooling or water cooling for modules above 500A.

Application:

DC power supplies of appliances and devices.
AC&DC motor control Soft star ting for motors.
Various rectifying power supplies.
Electric welders , Frequency transformers.
Battercharging and discharging.

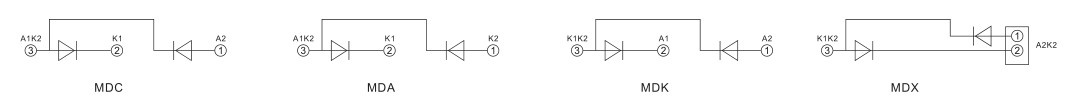

Circuit schematic diagram:



Specification:


Type
IT(AV)
A
VRRM
V
VTM@IFMIRRM
mA
IF(RMS)
A
IFSM
Ax100
Rjc
ºC/W
Tjm
ºC
Viso
V(AC)
Outine
VA
MD*25A25500-25001.658410.651.3001.3001.30025002/4
MD*55A55500-25001.458861.300.7000.7000.70025002/4
MD*90A90500-25001.3381412.300.4700.4700.47025002/4
MD*110A110500-25001.4581732.600.3500.3500.35025002/4
MD*130A130500-25001.38122123.900.3100.3100.31025005/6
MD*160A160500-25001.56122516.000.2300.2300.23025005/6
MD*200A200500-25001.38123148.000.2100.2100.21025005/9
MD*250A250500-25001.432039311.00.1400.1400.14025007/9
MD*300A300500-25001.352047112.50.1300.1300.13025007/9
MD*350A350500-25001.503055015.00.1100.1100.11025008/9
MD*500A500500-25001.354078521.00.900.900.90250010
MD*600A600500-25001.654078512.00.1300.1300.130250010
MD*800A800500-25001.654094215 00.1100.1100.110250011
MD*1000A1000500-25001.7040125618.00.0800.0800.080250012
MD*500A*500500-25001.354078521.00.900.900.90250013
MD*600A*600500-25001.654078512.00.1300.1300.130250014
MD*800A*800500-25001.6 54094215.00.1100.1100.110250014
MD*1000A*1000500-25001.704012 5618.00.080080080250015
Note: * can be C,A,K,X.


How to Order?

1. Please let us know what kind of model.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay the discussed deposit soon.
5. After getting your deposit payment, all goods will be sent to you in by sea or air within one month.
6. OEM/ODM is welcomed.
Terms of Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we can declare lower value if needed.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Terms of Payment:
1. For bulk order, TT or L/C at sight.
2. 30% deposit and 70% against shipping documents.
3. Sample order we accept payment such as paypal, western union, visa card.
Warranty:
1.We provide 2 year quality warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods .
How to contact me:
TEL: 0086 577 62628176
FAX:0086 57762628176
Address:Xinguang Road No.75.Yueqing city,Wenzhou ,Zhejiang,325603,China
Company:HUANGSHAN MJER IMP.AND EXP.CO.,LTD

Hangshan MJER Electric Co., Ltd is a professional manufacturer for semiconductors. Our company is located in the ' China Electric Capital' - Liushi, Wenzhou, with convenient transpor tation which is close to Wenzhou airpor t, railway station, and por t. After years of innovation and hard work, our company strictly follows the international standards for scientific research, development, design, and production. We pay great attentions to ever y detailed factor and insist 'keep innovation and pursuit for technological progress' as our principle. We own a professional R&D team with experienced engineers and advanced producing and testing equipments. We keep learning updated new technology abroad and improving our quality. After several years of developing, we have successfully established a multi-level marketing network and the products are sold widely around the world.

The products from our company are strictly under the national standard. We can mainly manufacture: Schottky / fast recover y diode, fast thyristor module, rectifier module, common thyristor module, thyristor, rectifier tube mixing module, non insulated thyristor, ordinar y rectifier module, non insulated thyristor module, non insulated rectifier module, single / three phase rectifier module, bridge rectifier, solid state relay, ZP rectifier tube, KP thyristor, KS bidirectional thyristor, ZX rotating rectifier tube, KX rotating thyristor, SS water cooling radiator, SF air cooling radiator, shunt, core, silicon rectifier, power semiconductor module, the power regulator, motor soft star ter (cabinet), power rectifier assembly series and so on.

All the employees from MJR follow to 'vir tuous talents, integrity work, scientific and technological innovation', 'people-oriented', and 'customer focused' as our philosophy to innovate and develop. We offer first class quality, reasonable price and best ser vice after sale to satisfy the customers for bilingual profits. Our ability is limited, but our creation is unlimited. We will keep working on innovation and constantly surpassing to optimize our own enterprise images. We are willing to establish our relationships with both new and old customers all over the world.
