Diode Module Mdk 110A 1600V

Diode Module Mdk 110A 1600V
Price: US $ 6.5-7/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: MDK110A1600V
Life: Over 1 Year
Certificates: Ce, ISO9001:2008
Payment: T/T, L/C, Paypal
Lead Time: 15days
MOQ: 5
Manufacturing Technology: Optoelectronic Semiconductor
Material: Compound Semiconductor
Type: Intrinsic Semiconductor
Package: Standard
Application: Motor Control, Lighting Control
Model: S
Brand: Mjer

Product Description






Feature:

The chips are electrically insulated from bottom plate 2500V AC voltage.
Packaged as per international standard.
Complete pressure connection structure , with excellent temperature characteristics and power cycling capacity.
Forced air cooling for modules below 400A and air cooling or water cooling for modules above 500A.

Application:

DC power supplies of appliances and devices.
AC&DC motor control Soft star ting for motors.
Various rectifying power supplies.
Electric welders , Frequency transformers.
Battercharging and discharging.

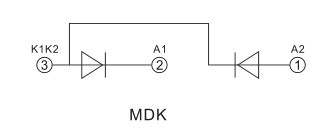

Circuit schematic diagram:



Specification:
TypeIF(AV)VRRMVTM/ITMIRRMIF(RMS)TjmVisoOutline

AVV/AmAA°CV(AC)
 MDK 25A25 400~26001.5/808411502500101F
 MDK 55A55 400~26001.5/1708861502500101F
 MDK 70A70 400~26001.5/27081101502500 201F
 MDK 90A90 400~26001.5/2708141 150 2500 201F
 MDK 110A110  400~26001.5/330173 150 2500 201F
 MDK 130A130 400~26001.5/41012 212 150 2500 301F
 MDK 160A160 400~26001.5/48012 251 150 2500 301F
 MDK 200A200 400~26001.5/60012 314 1502500 301F /401F
 MDK 250A250 400~26001.5/75020393 1502500 401F
 MDK 300A300 400~26001.5/90020 471 150 2500 401F
