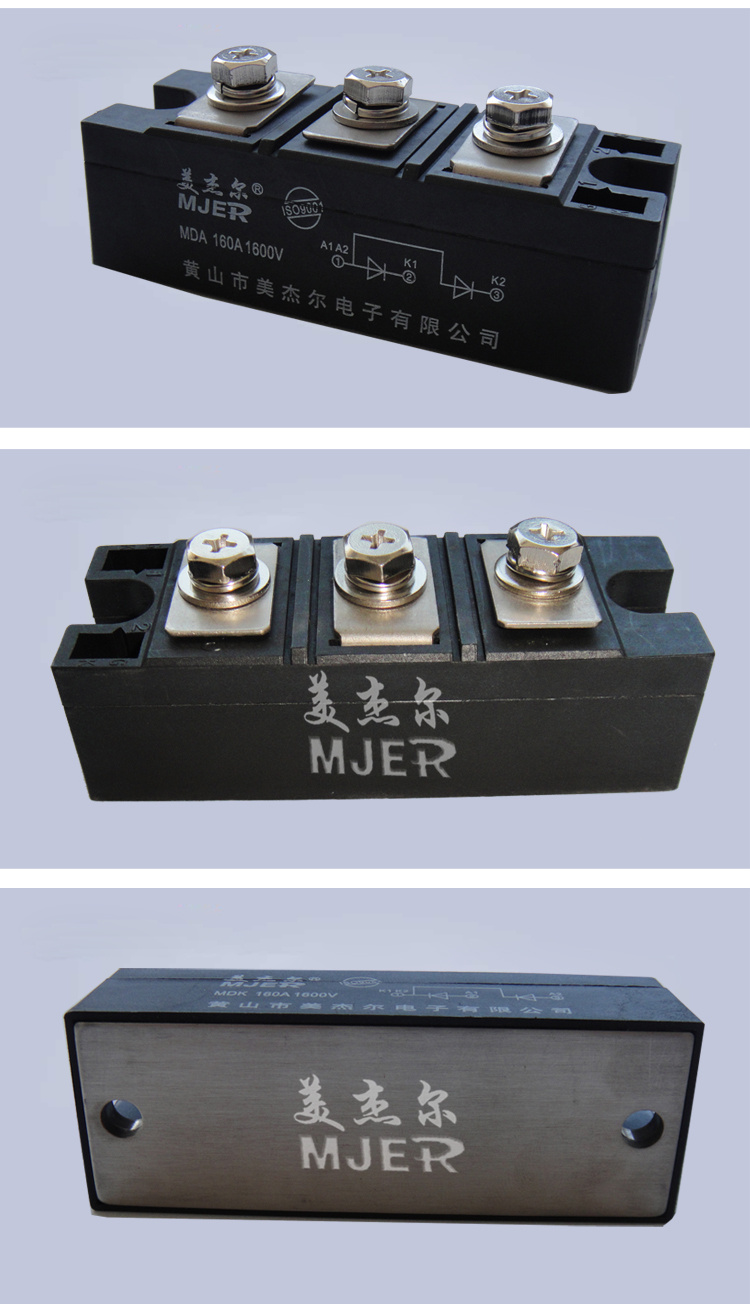

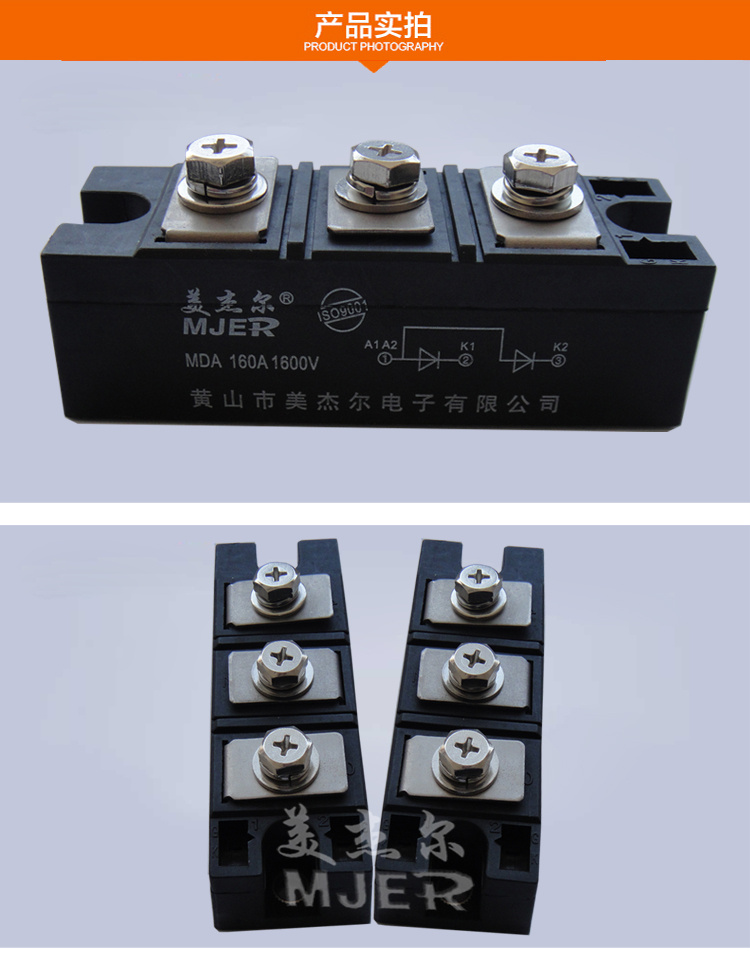

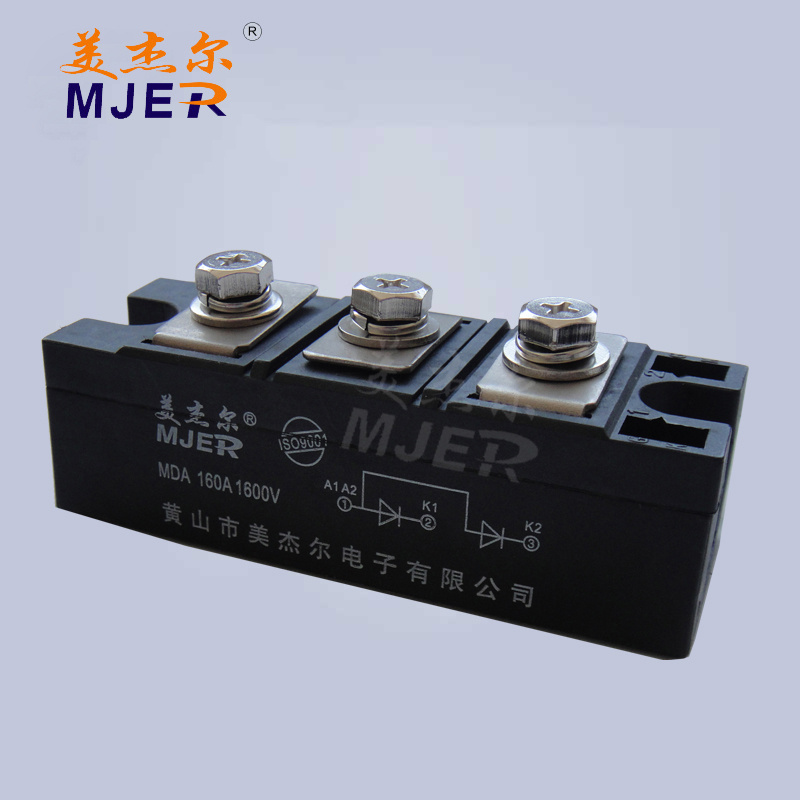

Diode Module Mdk 160A 1600V
| Price: |
US $ 13-13.5/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
MDK160A1600V |
| Life: |
Over 1 Year |
| Certificates: |
Ce, ISO9001:2008 |
| Payment: |
T/T, L/C, Paypal |
| Lead Time: |
15days |
| MOQ: |
5 |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Compound Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
Standard |
| Application: |
Motor Control, Lighting Control |
| Model: |
Mdk |
| Brand: |
Mjer |
Product Description
SUMMARY:The use of the environment should be no violent vibration and impact, environmental medium impurities and atmosphere without corrosion and damage to the insulation of.module die junction temperature: -40~150ºCdiode, environmental temperature not higher than 40ºC; environmental humidity is less than 86% Module.before use must install radiator, heat can be forced by natural cooling, cold when applied to the actual load current is more than 40A devices, generally need to choose a forced air cooling system Forced cold, wind speed should be greater than 6m/s,equipment up and running 30 minutes60 minutes. reached thermal equilibrium We require anti diodes mounted radiator temperature less than 50ºC the highest effective When the radiator is the work environment at the temperature of 25ºC, the temperature of the radiator should be less than 75 DEG C; if the environment temperature At 45ºC, the temperature of the radiator should be less than 95ºC.must ensure that the control of air and the cabinet body circulation flow of air in the cabinet When the anti reverse diode module installed in the control cabinet, control cabinet must be installed on the top of the 23 platform to the cabinet body ventilation of the axial flow fan (hot air is rising, conducive to heat dissipation). and control cabinet Near the bottom around the need to set the shutter.Application:DC power supplies of appliances and devices.
AC&DC motor control Soft star ting for motors.
Various rectifying power supplies.
Electric welders , Frequency transformers.
Battery charging and discharging
solar system!

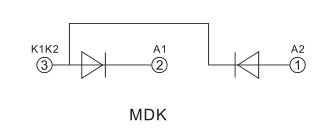

Circuit schematic diagram:
Specification:| Type | IF(AV) | VRRM | VTM/ITM | IRRM | IF(RMS) | Tjm | Viso | Outline |
| | | | | | | |
| A | V | V/A | mA | A | °C | V(AC) |
| MDK 25A | 25 | 400~2600 | 1.5/80 | 8 | 41 | 150 | 2500 | 101F |
| MDK 55A | 55 | 400~2600 | 1.5/170 | 8 | 86 | 150 | 2500 | 101F |
| MDK 70A | 70 | 400~2600 | 1.5/270 | 8 | 110 | 150 | 2500 | 201F |
| MDK 90A | 90 | 400~2600 | 1.5/270 | 8 | 141 | 150 | 2500 | 201F |
| MDK 110A | 110 | 400~2600 | 1.5/330 | 8 | 173 | 150 | 2500 | 201F |
| MDK 130A | 130 | 400~2600 | 1.5/410 | 12 | 212 | 150 | 2500 | 301F |
| MDK 160A | 160 | 400~2600 | 1.5/480 | 12 | 251 | 150 | 2500 | 301F |
| MDK 200A | 200 | 400~2600 | 1.5/600 | 12 | 314 | 150 | 2500 | 301F /401F |
| MDK 250A | 250 | 400~2600 | 1.5/750 | 20 | 393 | 150 | 2500 | 401F |
| MDK 300A | 300 | 400~2600 | 1.5/900 | 20 | 471 | 150 | 2500 | 401F |
Our certificates:
How to contact us :Address:Xinguang Road No.75.Yueqing city,Wenzhou ,Zhejiang,325603,China
TEL: 0086 577 62628176
FAX:0086 57762628176
Hangshan MJER Electric Co., Ltd is a professional manufacturer for semiconductors. Our company is located in the ' China Electric Capital' - Liushi, Wenzhou, with convenient transpor tation which is close to Wenzhou airpor t, railway station, and por t. After years of innovation and hard work, our company strictly follows the international standards for scientific research, development, design, and production. We pay great attentions to ever y detailed factor and insist 'keep innovation and pursuit for technological progress' as our principle. We own a professional R&D team with experienced engineers and advanced producing and testing equipments. We keep learning updated new technology abroad and improving our quality. After several years of developing, we have successfully established a multi-level marketing network and the products are sold widely around the world.

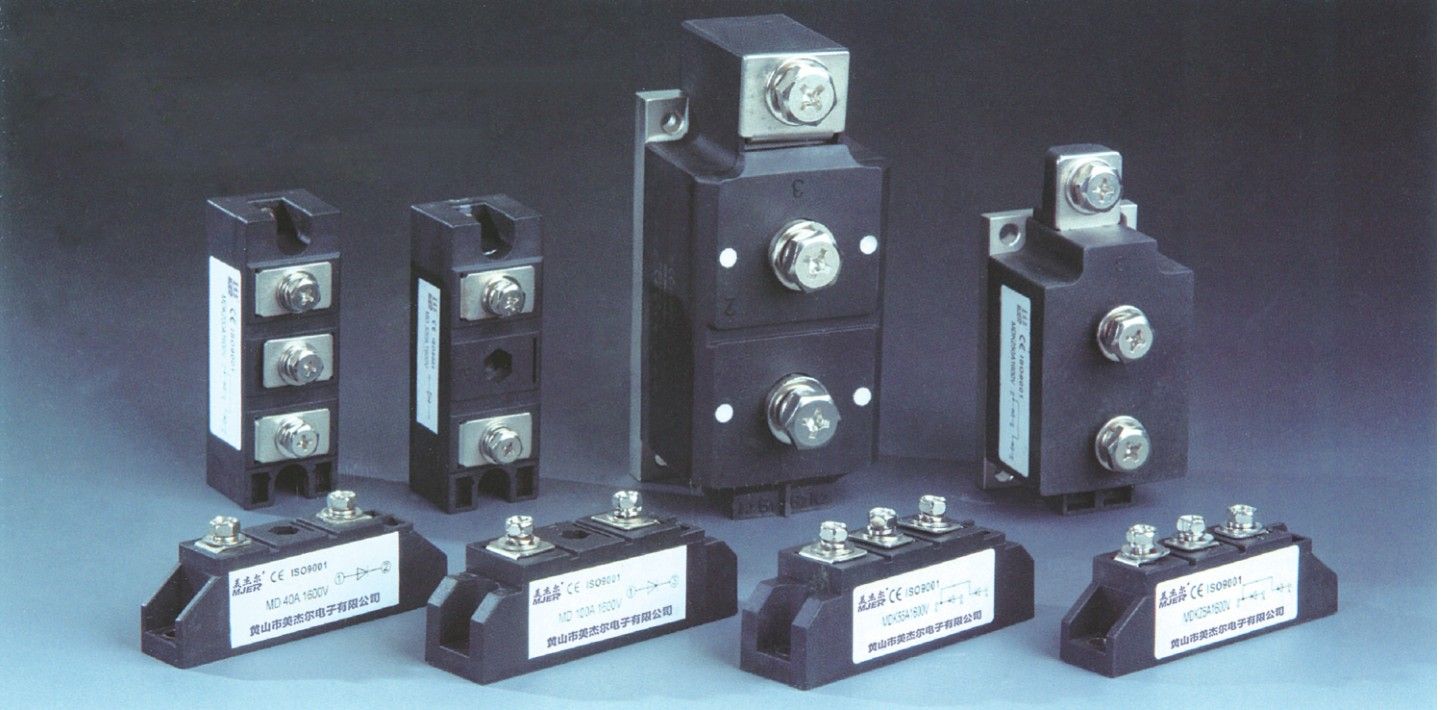

The products from our company are strictly under the national standard. We can mainly manufacture: Schottky / fast recover y diode, fast thyristor module, rectifier module, common thyristor module, thyristor, rectifier tube mixing module, non insulated thyristor, ordinar y rectifier module, non insulated thyristor module, non insulated rectifier module, single / three phase rectifier module, bridge rectifier, solid state relay, ZP rectifier tube, KP thyristor, KS bidirectional thyristor, ZX rotating rectifier tube, KX rotating thyristor, SS water cooling radiator, SF air cooling radiator, shunt, core, silicon rectifier, power semiconductor module, the power regulator, motor soft star ter (cabinet), power rectifier assembly series and so on.
