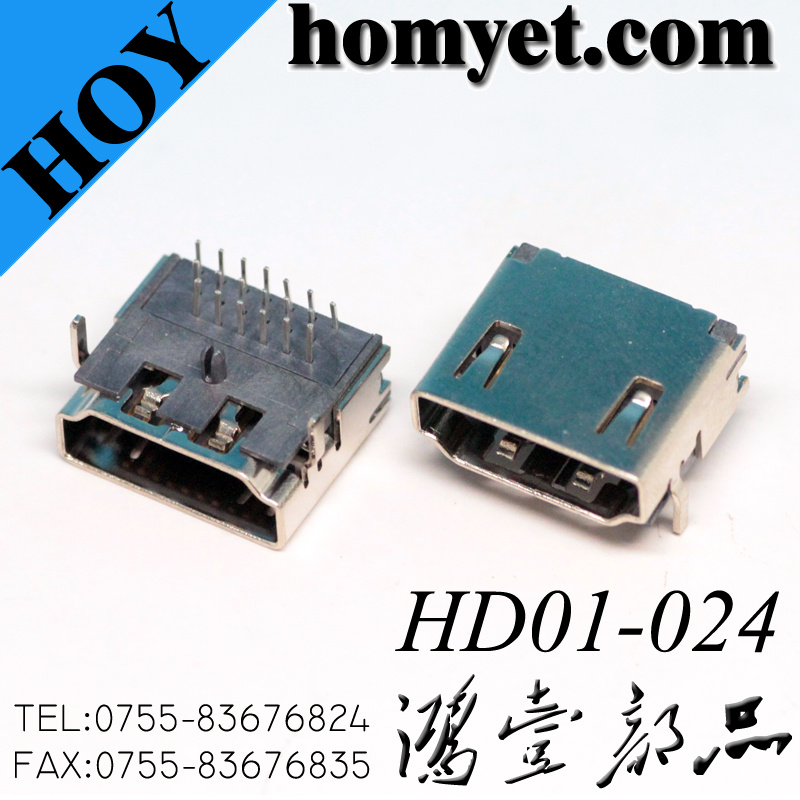

DIP Type HDMI Connector

DIP Type HDMI Connector
Price: Negotiable/Piece
Min Order: 1000/Piece
Pay Type: T/T,Paypal
Prod Model: HD01-024
Interface Type: USB
Terminal Material: Copper Alloy
Certification: RoHS
Gender: Female
Application: Audio & Video

Product Description

High Speed 14Pin Gold-plated HDMI Female Connector
Supports start high-speed transmission.

Material:
Housing: Thermoplastic  UL94-0 Color: Black.
Outer Shell: Brass, T=0.50mm
Terminal: Photoshop Bronze, T=0.22mm
Contact plating: Nickel underplating over all, gold plating at contact area, Tin at soldering area.
Shell plating: Nickel plating over all
Terminal solder-tail coplanrity 0.10mm max.

Contact: Gold flash plated in contact area 80U" min tin Plated in solder area 30U" min nickel underplated over all
Shell: 50U" min nickel plated overall

Specification:

Current rating: 0.5AMPS
Voltage rating: 40V AC (rms)
Contact resistance: 30m ohms max.
Withstand Voltage: 500V AC for 1 minute
Insulation resistance: 100M ohms min.
Work Temperature:-25ºC~+85ºC
Resistance to soldering to sodering heat: 265° C for 5 seconds and only wave soldering process
HALOGEN FREE  / ROHS  / TAPE PACKING

Application:
 TV/STB/DVD/HDTV/PC/Automobile Data Recorder/Digital Camera/HUB/

Manufacturing:
connectorIn house
teiminalIn house
ToolingIn house
InjectionIn house
PCBOut
SMTOut
SolderingIn house
CableIn house
AssemblyIn house
CapacityConnectors:300KK/M

Packaging & Shipping
1) Packaging: Carton
2) Shipping:
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms: T/T, L/C, PayPal; 20% deposits; 80% balance before delivery

Why Choose Us?
1) We can provide you with different types of micro switches for your selection.
2) MOQ: 2000pcs,mixed order acceptable, welcome trial order.
3) We can provide free samples for your test.
4) Various operating force, height and colour for one item for your choice.
5) Safety, on-time delivery, excellent quality with competitive price.
6) OEM and ODM professional design.
