Direct Buried Double Jacket Single Armored Cable

Name: Direct Buried Double Jacket Single Armored Cable
Brand: all-electronics-online.com
SKU: 794489855
Availability: InStock
Rating: 4.6 (129 reviews)

Price:	US $ 0.38-0.4/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYFTY53
Inner Jacket:	HDPE
Outer Jacket:	HDPE
Od:	15mm
Application:	Communication
Certification:	ISO9001
Type:	Fiber Optic Cable
Connection Structure:	Fiber Optic Cable
Sheath Material:	PE

Product Description

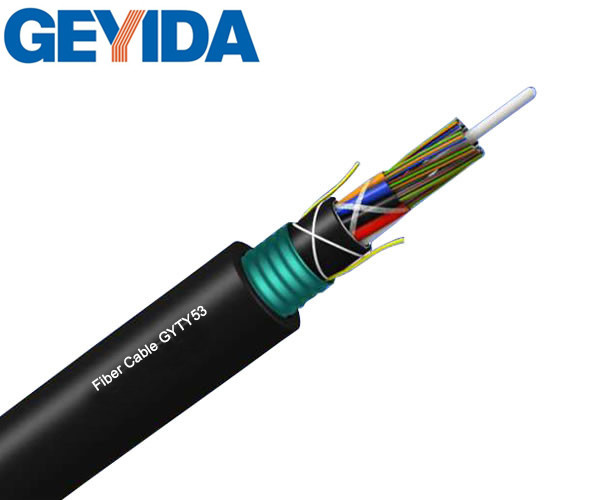

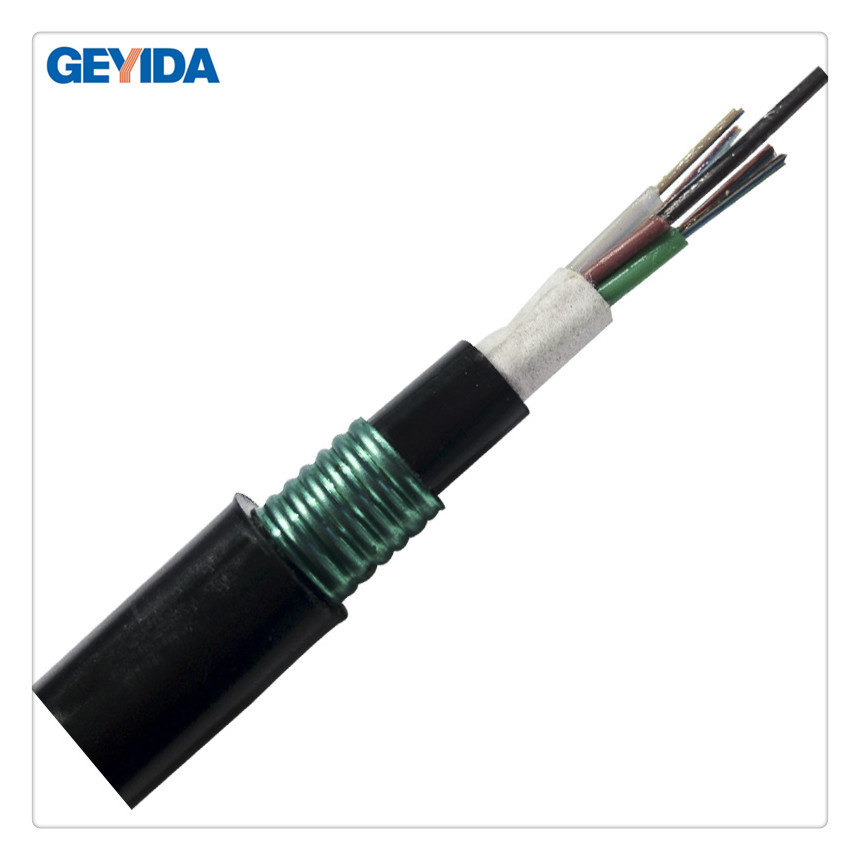

Direct Buried Non-Metallic Outdoor Fiber optic Cable -GYFTY53

Description:

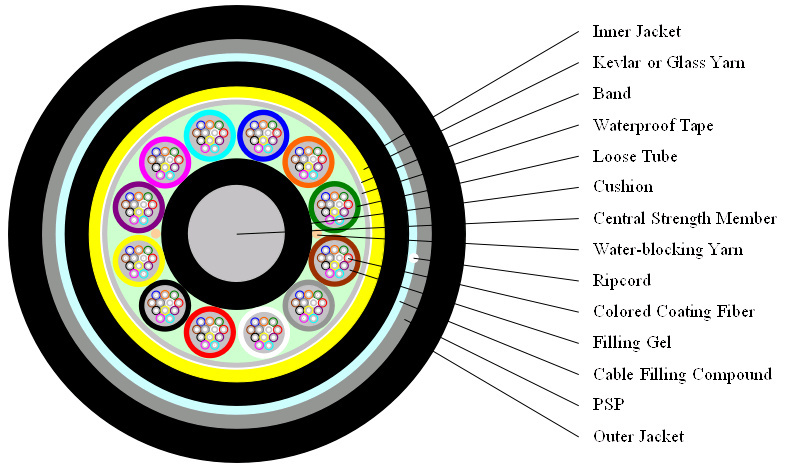

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene(PE) for cable with high fiber count, locates in the center of core as metallic strength member. Tubes(and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate(APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE sheath.

Features:
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Loose tubes filling compound
5. Crush resistance and rlesxibility
6. The following measures are taken to ensure the cable water tight
7. Single fiber reinforoad plastic as the central strength member
8.100% cable core filling

Outdoor Popular cables

optical characteristics



		G.652	G.655	50/125um	62.5/125um
attenuation(+20ºC)	@850nm			≤3.0db/km	≤3.0db/km
	@1300nm			≤1.0db/km	≤1.0db/km
	@1310nm	≤0.36db/km	≤0.4db/km
	@1550nm	≤0.22db/km	≤0.23db/km
	@850nm			≤600mhz.km	≤200mhz.km
bandwidth(class A)	@1300nm			≥1200mhz.km	≥600mhz.km
numerical Aperture				0.200±0.015na	0.275±0.015na
cable cut-off waveleng th xcc				≤1620nm	≤1450nm
storage/operating temperature:-40ºC to +70
storage/operating temperature:-40ºC to +70
