Dirk 2 Transmitter with 1 Receiver Driving Crane Hoist Crane Wireless Air Traffic Industrial Remote Control F21-E1
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
F21-E1 |
| Application: |
Industrial Machinery |
| Signal Transmission: |
Radio Waves |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Material: |
Plastic |
| Battery Type: |
AA Battery |
| Voltage: |
DC/AC12V,AC380V,AC110V,AC220V,DC/AC36V |
Product Description

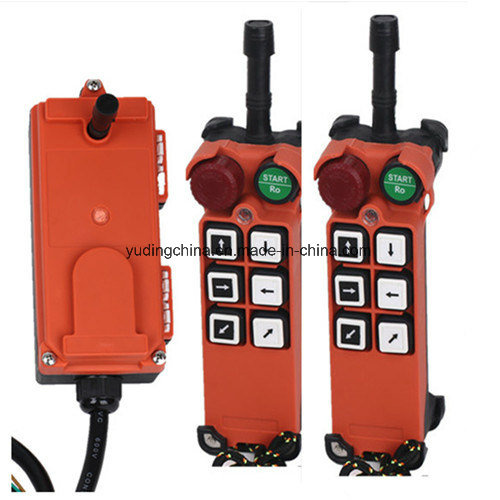

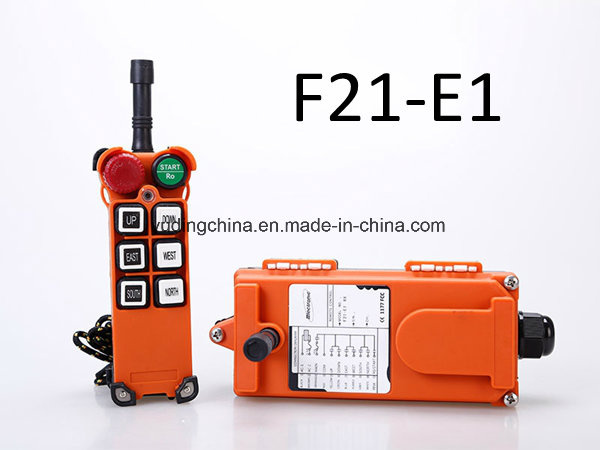

Dirk 2 transmitter with 1 receiver Driving Crane Hoist Crane Wireless Air Traffic Industrial Remote Control F21-E1
Feature:*6 Single speed push buttons +one EMGS button+ one START button
+ one STOP button + one SWITCH
* control points up to 6
* With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
* with the Rotate key switch to guarantee the safety.
* set the internal functions by computer interface
* up/down,east/west,south/north push button can be set start ,close,speed up,
jump strokes,ordinary etc Standard configuration:
One transmitter ;
One receiver;
One 1m cable connect with receiver
One operation and maintain manual . | Transmitter: | size :156*56*49mm | weight: 320g |
| Receiver: | size:185*85*85mm | weight:550g |
Basic Information: | TX Model | F21-E1-TX-V-(E) |
| TX Size | about 15.6*5.6*4.9cm |
| TX Weight | about 211g(without Batteries) |
| Housing Materail | glass fiber-reinforced nylon-6 |
| Protection Degree | IP65 |
| Temperature Rating | -35°C ~ +85°C(Regardless of the battery temperature tolerance) |
| TX power Supply | Two 1.5 volts Batteries(AA Size) |
| Number of buttons | 6 Single speed buttons,1 START button,1 mushroom button |
| Button Marking | English or Arrow tip |
| I.D.Code | 4.3 billion |
| Voltage Warning |
TX Red LED will flash slowly when the volts under 2.2V,
and unable to start TX under 1.8V. |
|
| Operating Frequency | 310.0325-331.165MHz |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH |
| RF Power | <10DBm |
| Fault Detection | TX Red LED is flashing quickly:
1.Not in the correct way to start;
2.One of the pushbutton is jammed.
TX LED will flash slowly:
1.Please change two new batteries |

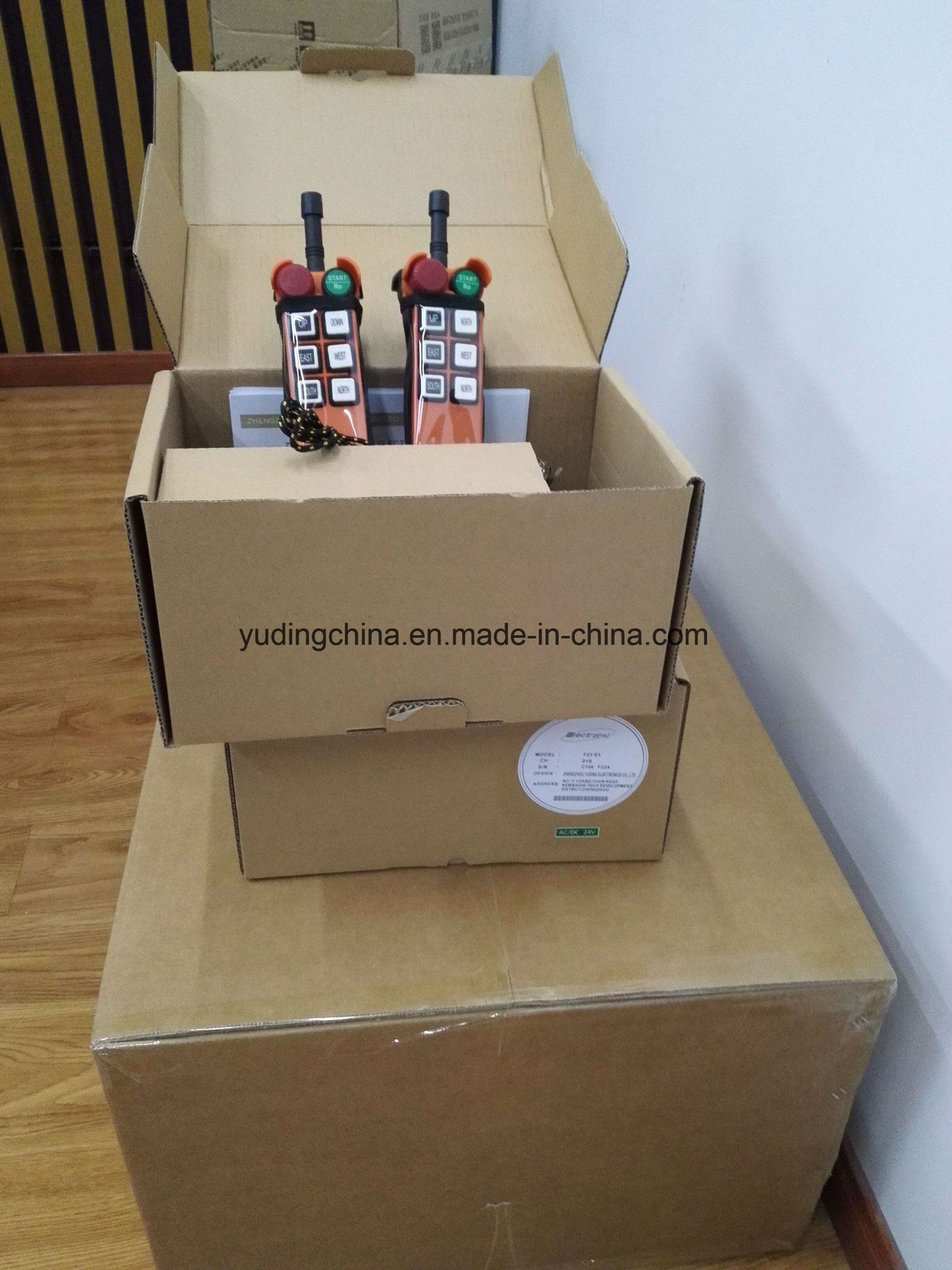

Package:
1 set per box
10 set per carton
FAQ:Q: are you manufacturer or trading company?
A: yes , we are manufacturer , more than 10 year experience in industrial radio remote control system we have our own R&D department , more than 15 production lines
Q: what's your MOQ?
A: one set is accept for trail order
Q: how long is the guarantee?
A: one year warranty , technical support always
Q: what's your delivery time?
A: usually 2-7 working days according to your order quantity
Q: how is your quality control?
A: all working process according to ISO9001-2008 , each industrial radio control equipment will be checked by machines two times and by work stuff one time , total 3 times
Q: what certificate you have ?
A: ISO9001-2008 , CE ,FCC
Q: what's your payment terms?

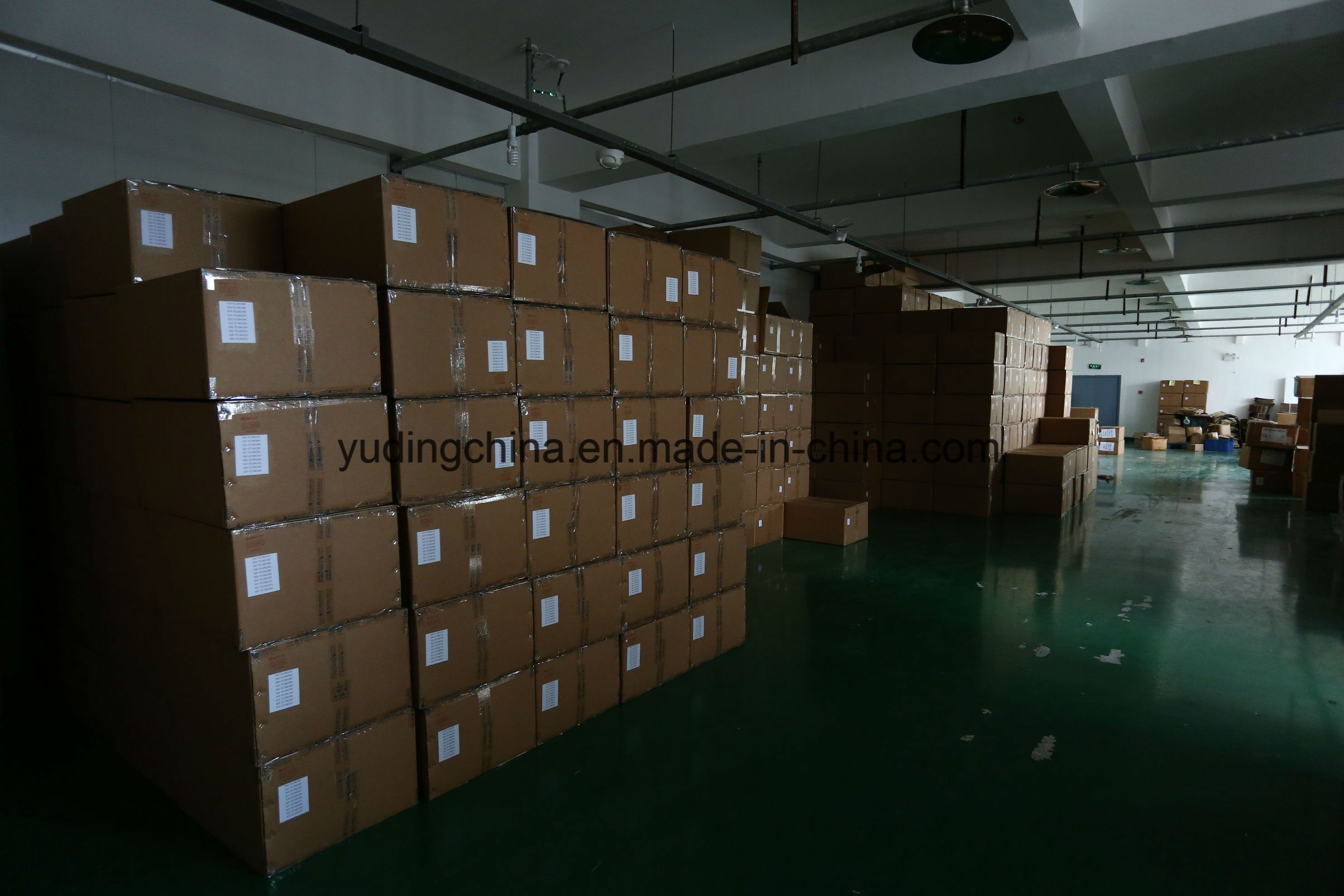

A: usually by T/T , also accept western union Our warehouse:
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
