Disc Suspension Anti-Pollution/Anti-Fog Type Insulators IEC Standard

Name: Disc Suspension Anti-Pollution/Anti-Fog Type Insulators IEC Standard
Brand: all-electronics-online.com
SKU: 694879272
Availability: InStock
Rating: 4.6 (79 reviews)

Price:	US $ 4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XHP-80 XHP-80C XHP-100 XHP-120 80-120KN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IEC Insulator Type:	IEC Standrad Anti-Pollution Suspension Insulator
Application:	High-voltage
Material:	Porcelain
Structure:	Suspension Insulator
Type:	IEC Standrad Anti-Pollution Suspension Insulator
Color:	Brown or Light Gray
Brand:	Cie

Product Description

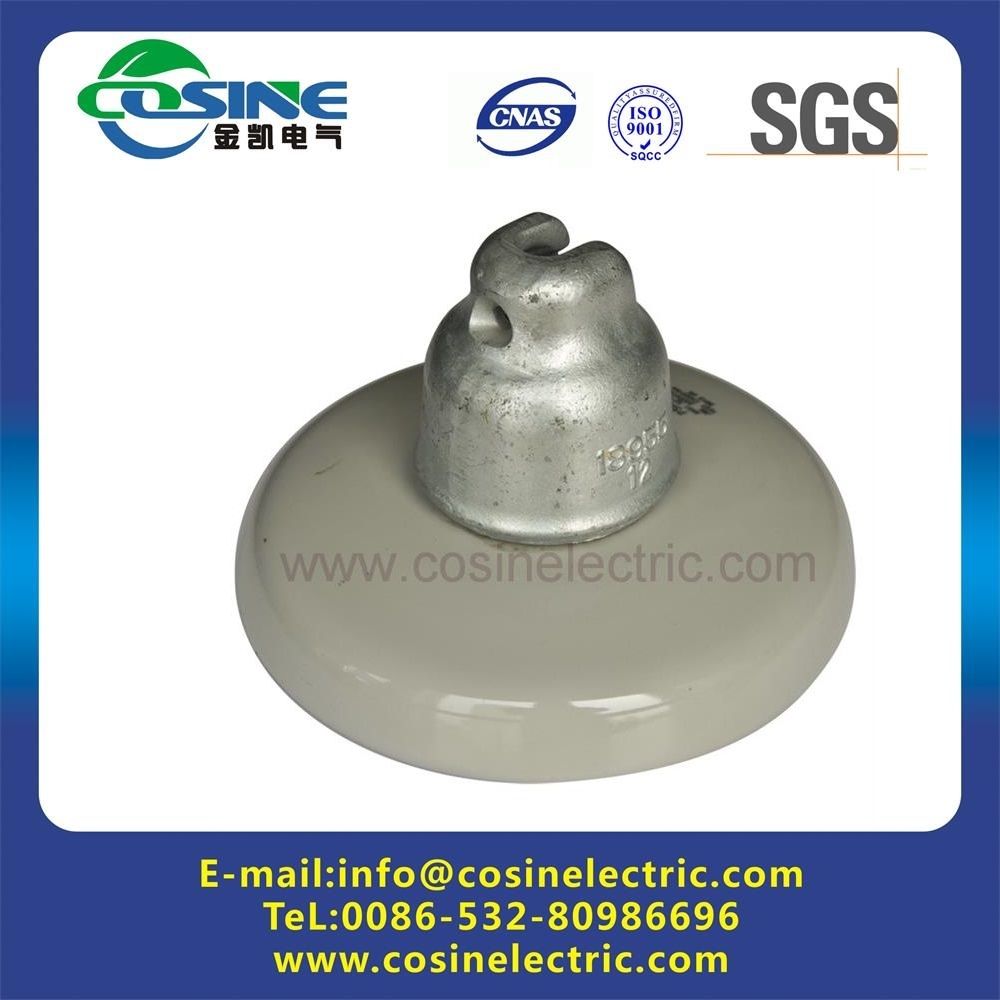

1. Name: Disc Suspension Anti-Pollution Type Insulators IEC Standard

2. Type: Suspension insulator Anti-Pollution Type Insulators IEC Standard

3. Specification: XHP-80 XHP-80C XHP-100 XHP-120 (80-120KN)

4. Package: Fumigated wooden-case

5. The glaze colors: Brown or light gray.

6. Standard: IEC Standard

7. Advantage: With a large protective creepage distance, the folowing anti-pollution type disc suspension insulators are more suitable for operation near the coast, on high polluted areas. They are designed with deep grooves which increases the protected creepage and restrain power arc occurence.

8. About Zinc-sleeve: According to special requirements, These insulators can be provided with Zinc-sleeve pins.

9.Technology Data:

Type		XHP-80	XHP-80C
Porcelain Disc Diameter,D,mm		254	254
Unit Spacing,H,mm		146	146
Standard Coupling to IEC 120 & 471		16mmA or B	16mm C
Creepage Distance,mm		432	432
Combined M & E Strength,KN		80	80
Routine Test Load,KN		32	32
Power Frequency Flashover Voltage	Dry,KV	90	90
Power Frequency Flashover Voltage	Wet,KV	50	50
Power Frequency Withstand Voltage	Dry,KV	80	80
Power Frequency Withstand Voltage	Wet,KV	45	45
50% Impulse Flashover Voltage,KV		125	125
Impulse Withstand Voltage,KV		115	115
Power Frequency Puncture Voltage,KV		120	120
Net Weight,Approx.,kg		6.5	6.8

For more about porcelain suspension insulators anti-pollution type with IEC coupling or other Glass Insulator Suspension Type,Anti-Pollution Typr OR Stanard Type Disc Insulator, pls feel free to contact with Qingdao Cosine Electrical Equipment Co.,Ltd. Will reply in 24hours.

Company Profile:
Qingdao Cosine Electrical Equipment specializes in supplying various kinds of insulator and pole line hardware. With high speed of power construction in China and oversea country, Qingdao Cosine has grown into a leader of exporting of insulator in China.

Our products range from10KV-500KV polymer insulator, 40KN-420KN porcelain insulator and various kinds' pole line hardware. All the insulators have been produced by modern equipment, For example 500KV polymer insulator has been produced by high volume injection machine, which can finish two pieces 500KV at one time. Mention to the porcelain insulator, the vacuum pug mill has been imported from Germany in order control the quality from blank.

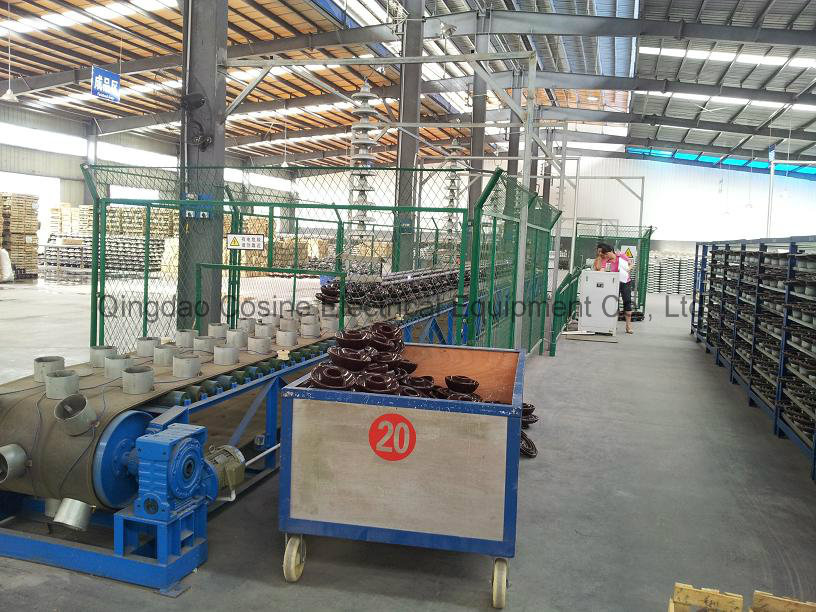

Workshop:

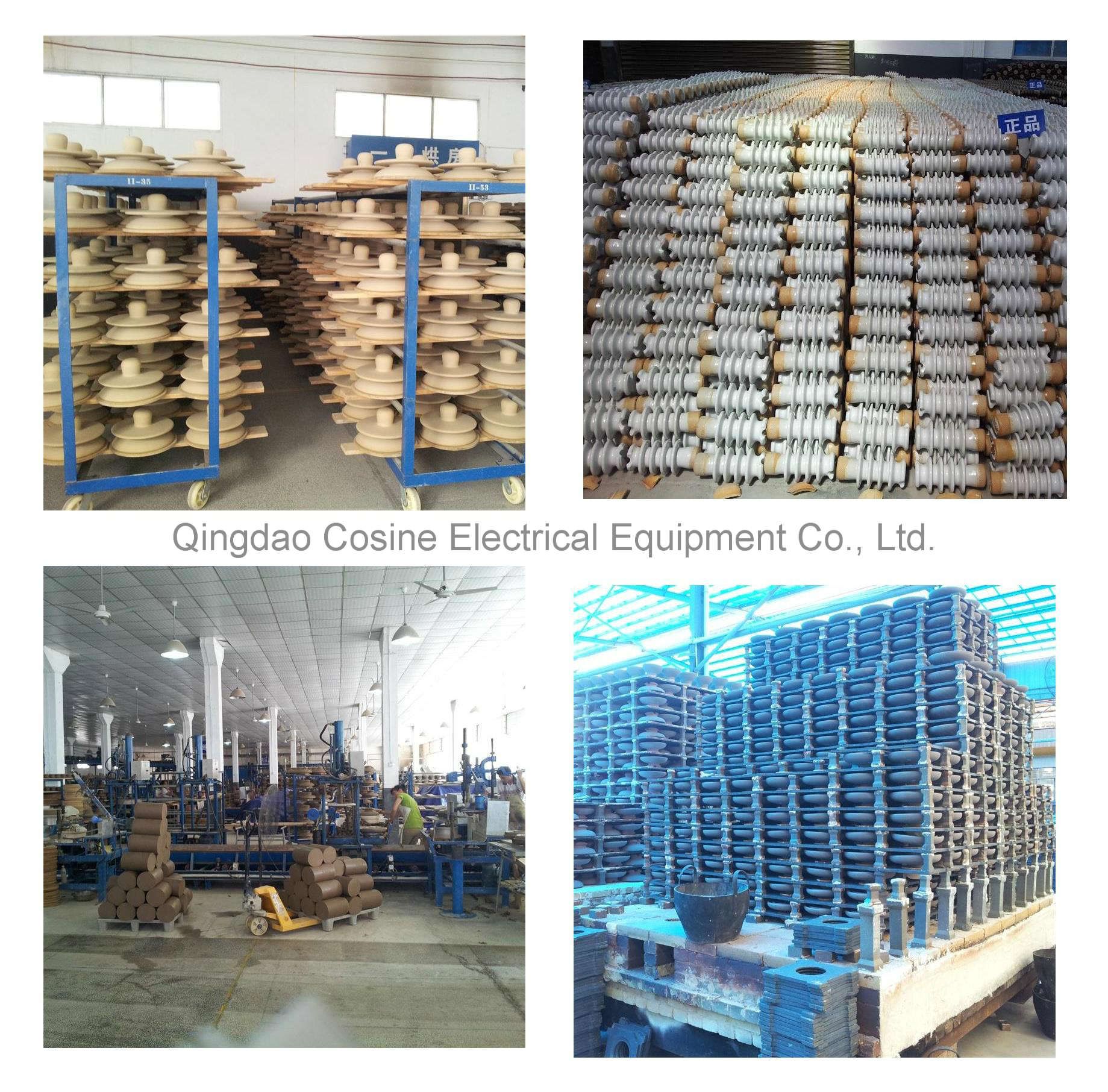

Products:

Package:

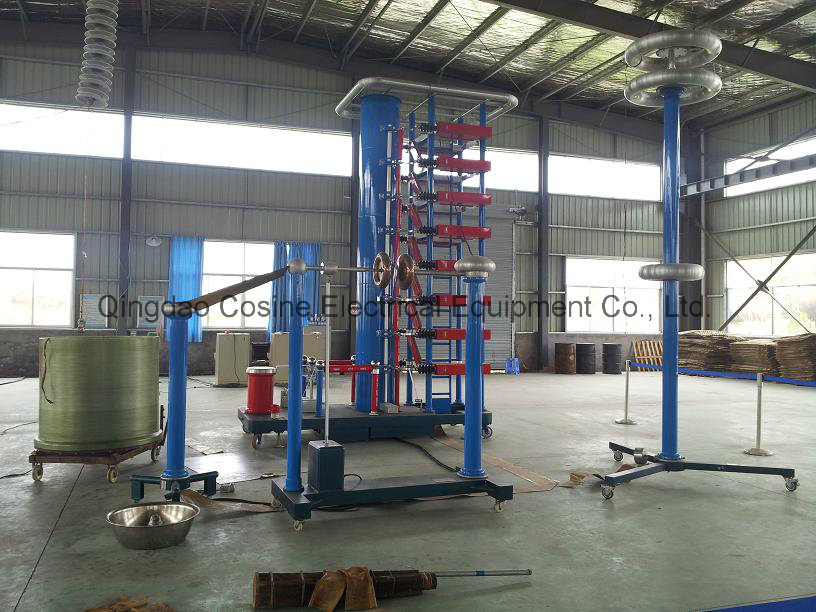

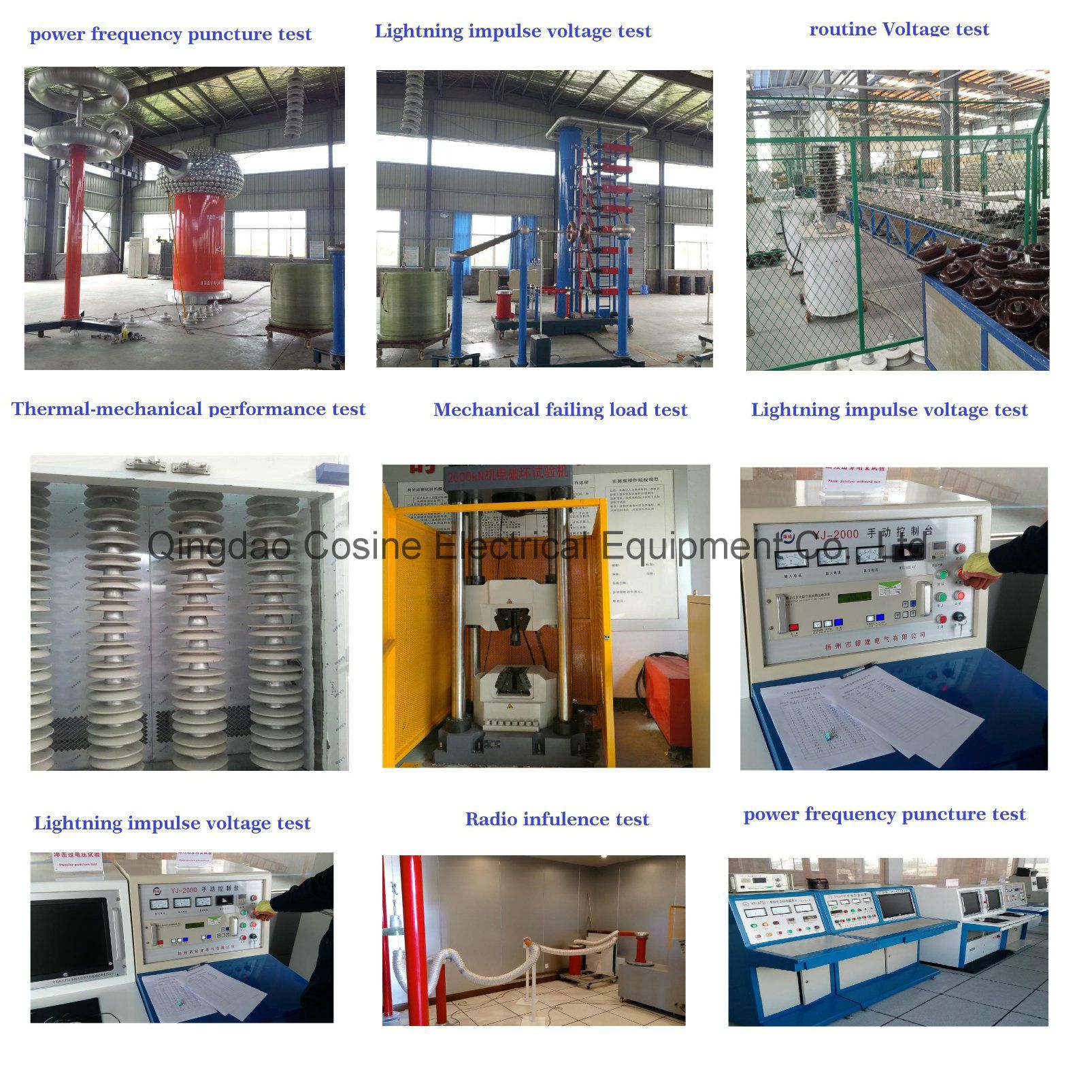

Quality Control:

Our Services:
1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6 We can manufacture it according to customers requirements.

Looking forward to your inquiry!

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
