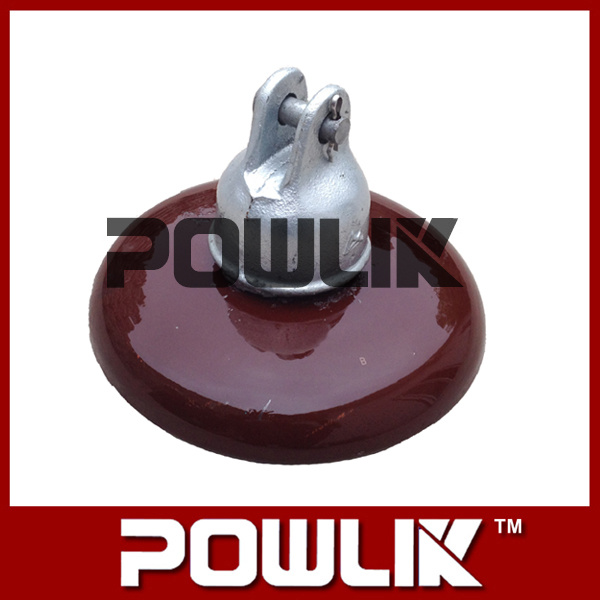

Disc Type Insulator (ANSI 52-1 52-2 52-3)

Name: Disc Type Insulator (ANSI 52-1 52-2 52-3)
Brand: all-electronics-online.com
SKU: 618793182
Availability: InStock
Rating: 4.8 (77 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	52-1, 52-2, 52-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure:	Suspension Insulator
Material:	Porcelain
Application:	High-voltage
Brand:	Powlik
Size Of Bearing Capacity:	70kn-160kn
Type:	Clevis Eye
Color:	Brown

Product Description

Disc Type Insulator (ANSI 52-1 52-2 52-3)

It can reach 70KN, 90KN, 100KN, 120KN, 160KN

Cat NO				A1001	A1002	A1003	A1004	A1005	A1006	A1007	A1008
Fig				1	2	3	4	3	4	5	4
Clsaa ANSI				52-1	52-2	52-3	52-4	52-5	52-6	52-9	52-10
Main Dimeneions(mm)			D	165	190.5	254	254	254	254	114	279.4
Main Dimeneions(mm)			H	139.7	146	146	146	146	146	160	165
Creepage Disance(mm)				178	210	292	292	279	279	171	279
Power-frequency puncture voltage(kv)				80	90	110	110	110	110	80	110
Average flashover voltage	Power-freauency		Dry(kv)	60	65	80	80	80	80	60	80
	Power-freauency		Wet(kv)	30	35	50	50	50	50	30	50
	Critical-Impulse 15× 40μ s W ave		Positive(kv)	100	115	125	125	125	125	90	125
	Critical-Impulse 15× 40μ s W ave		Negative(kv)	100	115	130	130	130	130	100	130
Radio-Influence-Voltage Data		Test Voltage to ground(kv)		7.5	7.5	10	10	10	10	7.5	10
Radio-Influence-Voltage Data		1000Hz Maximum RIV at 1000kHz(μ V)		50	50	50	50	50	50	50	50
Electromechanical Faiting Load(KN)				44	67	67	67	111	111	44	160
Mechanical Impact Strength(n. m)				5	5.5	5.5	6	7	7	5	10
Time Load Test Value(kn)				27	44	44	44	67	67	27	107
