| Prod Model: |
LXHP-100 |
| Markets: |
North America,South America,Southeast Asia,Africa,Eastern Asia,Western Europe |
| Disc: |
Insulator |
| Name: |

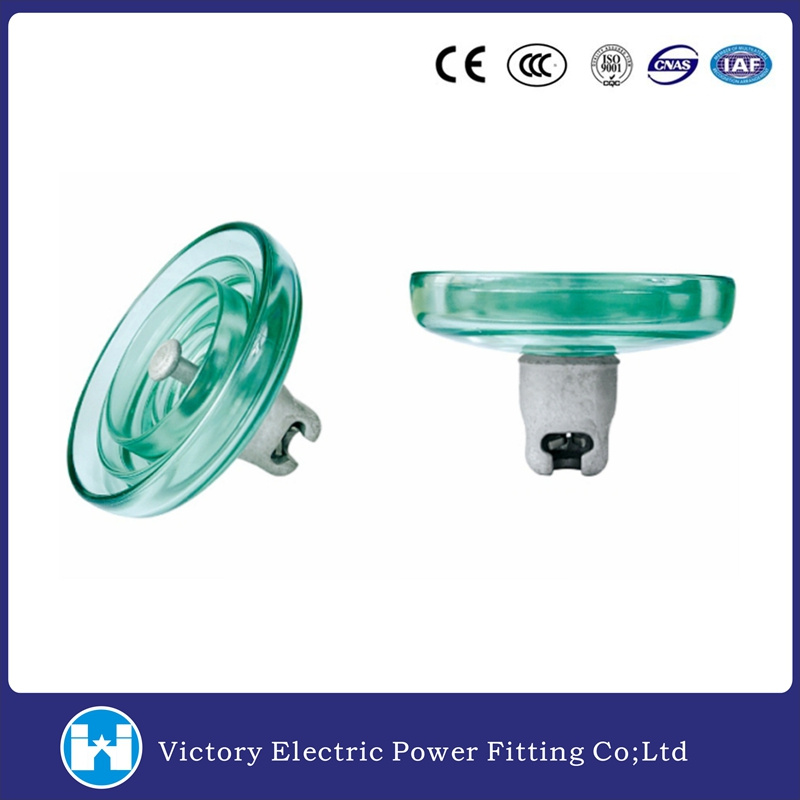

Glass Disc Insulator |
| OEM: |
Accept |
| Model: |
Lxhp3-100 |
| Application: |
Low-voltage |
| Structure: |
Strain Insulator |
| Type: |
A Type Insulator |
| Material: |
Glass |
| Color: |
Nature |
| Brand: |
Vic |
Product Description
* In comply with ANSI, IEC, BS, AS etc standard;
* Glass material
* Advise Model No or supply drawing when enquire;
* High quality with cheap price
LXHP-100 pollution-resistent suspension glass insulator technical parameters
|
General code
| U100BP/146H
| U100BP/146H
| U100BP/146H
|
Insulator model
| LXHP3-100
| LXHP4-100
| LXHP6-100
|
( mm )D
| 260
| 280
| 320
|
( mm ) H
| 146
| 146
| 146
|
( mm ) L
| 400
| 450
| 550
|
( mm ) connection model
| 16
| 16
| 16
|
( kN ) mechanical break load
| 100
| 100
| 100
|
( kN ) pulling load test
| 50
| 50
| 50
|
( kV ) P.F wet withstand voltage
| 45
| 45
| 45
|
( kV ) Lightning impulse withstand voltage
| 110
| 125
| 140
|
( P.U ) Impulse break voltage
| 2.8
| 2.8
| 2.8
|
( kV ) P.F break voltage
| * 130
| * 130
| * 130
|
( µV ) radio interruption ( 10kV,1MHz)
| 50
| 50
| 50
|
( kV ) visible corona foot/cap
| 18/22
| 18/22
| 18/22
|
P.F arc test
| 0.12s/20kA
| 0.12s/20kA
| 0.12s/20kA
|
( kg) per insulator net weight
| 5.4
| 5.8
| 9.2
|
