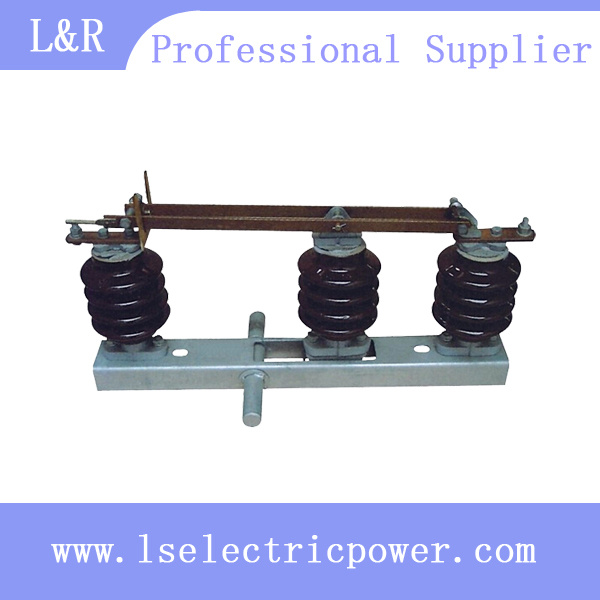

Disconnect Switch Outdoor High Voltage (GW1)

Name: Disconnect Switch Outdoor High Voltage (GW1)
Brand: all-electronics-online.com
SKU: 783025545
Availability: InStock
Rating: 4.7 (149 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GW1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	12
Type:	High-voltage
Structure:	Three-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Manual or Electric
Brand:	Laurence or as Customized

Product Description

Quick Details:
Model No.: GW1
Place of origin: Zhejiang, China
Usage: High voltage
Packing: Export carton or as customized
Structure: Three-column Disconnector
Installation: Outdooor High-voltage

Environmental Operating Conditions:
a) Altitudes of not up to 1000m above sea level,
b) Temperature range -25ºC to +40ºC
c) The working situation without frequent violent vibration
d) The installation site of ordinary type isolator should be kept away from gas, smoke chemical deposition, salt-spray-fog, dust and other and corrosive maters that affect seriously insulation of the isolator
e) It should't be any explosive matters and matters causing explosion

No.	ITEM	UNIT	TECHNICAL SPECIFICATION			NOTE
1	Rated voltage	KV	12
2	Rated current	A	400,630	800,1000	1250
3	Rated peak withstand current	KA	50	63	100
4	Rated short-time withstand current	KA/4S	20	25	40	Grounding switch is the same as the main switch of the Isolator

Zhejiang Lawrence Electric Co., Ltd (referred as L&R) is located in Zhejiang China. It is composed by some branch companies, we also invested some domestic and foreign EPC projects.

L&R has possessed one of the major suppliers in the power and electrical fields for electrical

Projects in the world. Almost all products manufactured by the L&R members have been certified

By KEMA, CE, SGS and CNAS approved Lab.

L&R have been supplying Zinc Oxide Varistors, Surge Arresters, insulators, Fuse Cutouts, Air

Break switch, Load break switch, Vacuum Circuit Breaker, Isolators, Transformers, Switchgear,

Earth rods, Stay Rods, Pole Make Off, Guy grip, stay wire, Crossarm, clamp, bolts, Line hardware

And so on. Our member companies are required to have a long term proven track record of meeting contract

Obligations, superior quality, current technology and state-of-the-art manufacturing facilities.

Over a period of 10 years, our business has extended to South America, Middle East, Southeast

Asia, Africa, and other regions, and we had our sale agent and 4S maintenance company in some countries. To achieve the strategic objective of development, we are seeking for partners

For our sale agent and maintenance company in all the worldwide.
