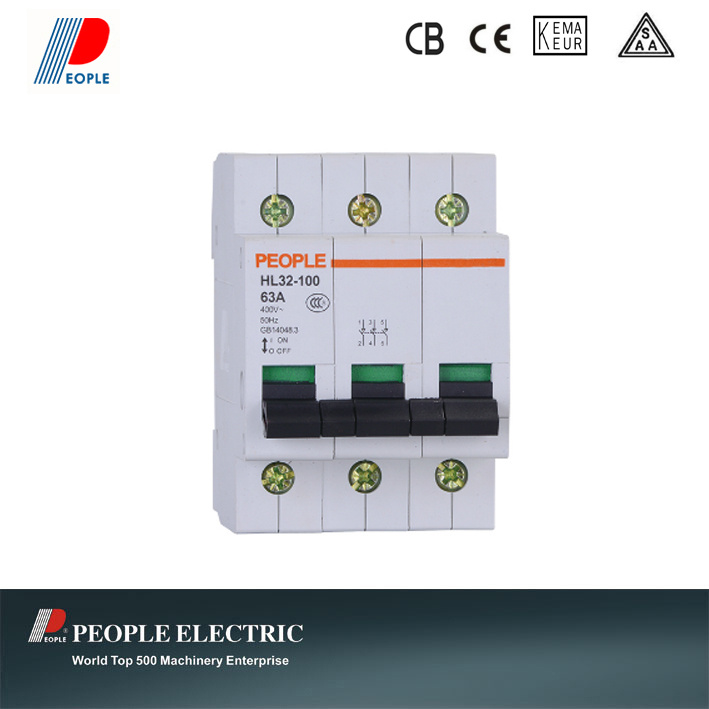

Disconnector for Low Voltage 3p Hl32-100

Disconnector for Low Voltage 3p Hl32-100
Price: US $ 1.78-2.94/Piece
Min Order: 300/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: HL32-100
Case Current Degree: 100A
Rated Working Voltage: 400V
Type: Low-voltage
Structure: Single-column Disconnector
Operation: Manual
Grounding: Single Ground
Series: Single-Stage
Run: Turn the Horizontal
Switching Mode: Double-Throw Type
Installation: DIN Rail
Number Of Poles: One
Certification: CCC
Brand: People

Product Description

Application
  HL32-100 series isolation switch is used in the distribution circuit and control cycle, AC50/60Hz, rated voltage 230V(1P, 2P), 400V(3P, 4P), rated current up to 100A. Mainly as main switch for terminal appliances, can be used for controlling various motors, small power appliances and illumination ect. Widely used in mining, high-rise building, commercial places & house

Normal working & installment conditions
1.Ambient temperature: -5ºC~+40ºC, 24 hours average temperature not exceed +35ºC.
2.Installment plance altitude: ≤2000m
3.Gas relative humidity:not exceed 50% at +40ºC, higher humidity allowed at lower temperature.
4.Pollution degree: 2 class
5.Installment condition: Mounted in the place without obvious impact or shock, no dangerous(explosion) dielectric without corrosive metal or damaging isolation gas(conductive dust).
6.Installment method: TH35-7.5 mounted rail, can be installed in distribution board, case or box. Generally mounted vertically. Tilted angle between mounting face and vertical face not exceed ±5°.
7.Mounted Category: II,III class.

Specification
Rated frequency50/60Hz
Rated current Ie16~100A
Case current class100A
According to standandsGB14048.3
No load operation life8500 times
Normal load operation life1500 times
Rated working voltage Ue400V
Rated limited shortcircuit current20kA
Rated closing & breaking capacity1.05Ue, 3In, cosΦ=0.65
Rated shor-time withstand current Icw12Ie (1s)
Rated shortcircuit closing capacity Icm20Ie (0.1s)

Packing and shipping
-- Ordinary paper carton for products.
-- Shipping mark according to customer's request.
-- Bulk production will be deliveried by sea and air.
