| Prod Model: |
CG2-600 |
| Voltage: |
2V VRLA Battery |
| Size: |
301*175*366mm, Mf Battery |
| Capacity: |
600ah Discount Marine Batteries |
| Weight: |
37.7kgs Maintenance Free Battery |
| Warranty: |
3 Years Solar Gel Battery |
| Expected Cycle Time: |
10-12 Years, Solar Power Battery |
| Delivery Time: |
7days Long Life Span Gel Battery |
| Brand: |
Cspower/OEM |
| Export Markets: |
Global Marine Batteries |
| Terminal Type: |
T20 |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
2V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
VRLA Battery |
Product Description

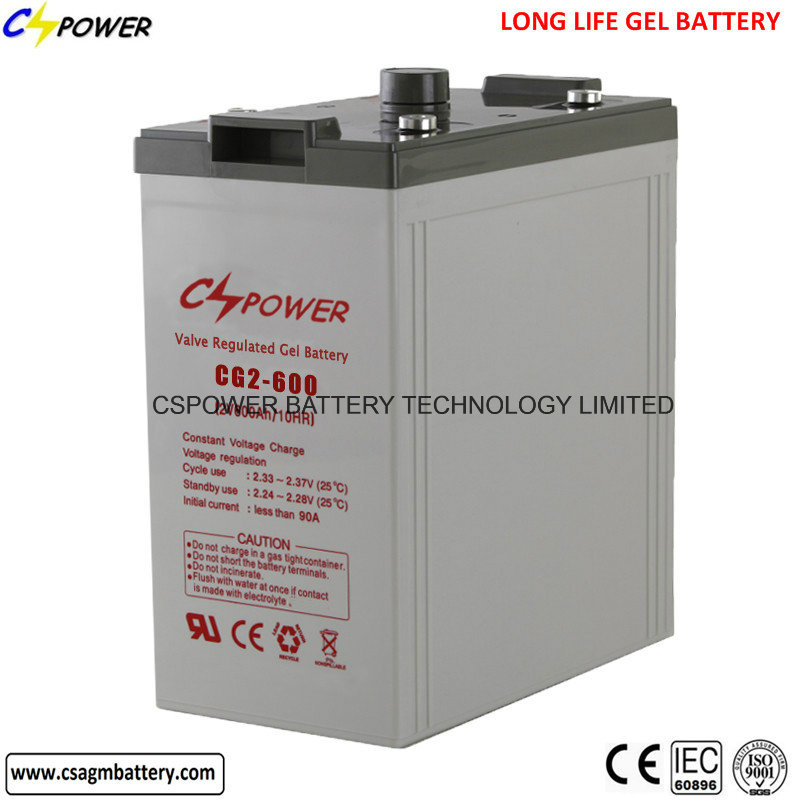

discount marine batteries 2V600AH
CSPOWER deep cycle GEL battery is designed for frequent cyclic charge and discharge applications under extreme environments. By combining the newly developed Nano Silicone Gel electrolyte with high density paste, the Solar range offers high recharge efficiency at very low charge current. The acid stratification is highly reduced by adding Nano Gel.
CONSTRUCTION FOR LONG LIFE BATTERY
1) Container/Cover: Made of UL94HB and UL 94-0ABS Plastic, fire resistance and water proof.
2) 99.997% pure new lead NEVER use recycle lead.
3) Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
4) High quality AGM separator: Absord acid electrolyte, the best retainer mat for VRLA batteries.
5) Positive plates: PbCa grids minimize corrosion and prolong life.
6) Terminal post: Copper or lead material with maximum conductivity, enhance the high current rapidly..
7) Vent Valve: Allows the release of the excess gas automatically for safety.
8) Three steps of Seal procedures: Ensure battery completely sealed with safety, never leakage and volatile acid, longer life.
9) Silicone Nano GEL electrolyte: Import from Germany Degussy famous brand silicone.
CHARGING VOLTAGE AND SETTINGS
Constant voltage charging is recommended
Recommended float charge voltage: 2.27V/cell @20~25°C
Float voltage temperature compensation: -3mV/°C/cel l
Float voltage range: 2.27 to 2.30 V/cell @ 20~25°C
Cyclic application charge voltage : 2.40 to 2.47 V/cell @ 20~25°C
Max. charge current allowable : 0.25C
COMPLIED STANDARDS
IEC 60896-21/22
IEC 61427
ISO9001/14001/18001
Eurobat guide, long life
BS6290 part 4
GB/T 22473
UL
CE
IATA and IMDG
Application
Communication equipment,
Telecommunication control equipment;
Emergency lighting systems;
Electric power systems;
Power station;
Solar powered and wind powered systems;
Load leveling and storage equipment;
Marine equipment;
Power generation plants;
larm systems;
Uninterruptible power supplies;
stand-by power for computers;
Medical equipment;
Fire and security systems;
Control equipment;
Stand-by electric power.
Our office is in Shenzhen, factories located in Dongguan and Shaoguan China.
We have obtained CE, ISO, IEC certificates and SGS test report for battery.
The main products of CSPOWER is 2V/6V/12V AGM sealed free maintenance lead acid battery, Solar deep cycle battery, Solar GEL battery upto 2V3000Ah, 6V300Ah, 12V300Ah, total over 400models, mainly used for solar power, wind power, ups system, inverter system, telecom, golf cart, electric vehicles and so on.
Welcome to contact us for the battery details.
Contact CSPOWER Details:
Tel: 0086-755-29123661
Web: www.csbattery.net
www.csagmbattery.com
www.cssolarbattery.com
http://cspower.en.made-in-china.com/
Specification
| CSPOWER MODEL | Voltage | Capacity | Dimension (mm) | Weight (kg) | Terminal | Bolt |
| (V) | (Ah) | Length | Width | Height | Total Height | (±3%) |
| CG2-200 | 2 | 200/10HR | 170 | 106 | 330 | 367 | 13 | T5 | M8×16 |
| CG2-300 | 2 | 300/10HR | 171 | 151 | 330 | 365 | 18.5 | T5 | M8×16 |
| CG2-400 | 2 | 400/10HR | 211 | 176 | 329 | 367 | 26.1 | T5 | M8×16 |
| CG2-500 | 2 | 500/10HR | 241 | 172 | 330 | 364 | 31 | T5 | M8×16 |
| CG2-600 | 2 | 600/10HR | 301 | 175 | 331 | 366 | 37.7 | T5 | M8×16 |
| CG2-800 | 2 | 800/10HR | 410 | 176 | 330 | 365 | 51.6 | T5 | M8×16 |
| CG2-1000 | 2 | 1000/10HR | 475 | 175 | 328 | 365 | 62 | T5 | M8×16 |
| CG2-1200 | 2 | 1200/10HR | 472 | 172 | 338 | 355 | 68.5 | T5 | M8×16 |
| CG2-1500 | 2 | 1500/10HR | 401 | 351 | 342 | 378 | 96.5 | T5 | M8×16 |
| CG2-2000 | 2 | 2000/10HR | 491 | 351 | 343 | 383 | 130 | T5 | M8×16 |
| CG2-2500 | 2 | 2500/10HR | 712 | 353 | 341 | 382 | 180 | T5 | M8×16 |
| CG2-3000 | 2 | 3000/10HR | 712 | 353 | 341 | 382 | 190 | T5 | M8×16 |
| Products will be improved without notice, please contact sales for specification in kind prevail. |
