Display Card Rogers PCB Assembly High Frequency PCB Assembly with Surface Treatment

Name: Display Card Rogers PCB Assembly High Frequency PCB Assembly with Surface Treatment
Brand: all-electronics-online.com
SKU: 776381175
Availability: InStock
Rating: 4.6 (53 reviews)

Price:	US $ 0.05-0.25/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	A072
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
PCB Type:	Electronic PCB Assembly
Board Thickness:	1.6mm
Copper Thickness:	1oz
Solder Mask:	Green
Size:	Custom
Surface Treatment:	HASL Lead Free
Stencil:	We Do
Service:	One Stop
Componnets:	We Purchase or Buy by Yourselt
Samll Order:	Accepted
Metal Coating:	Copper
Mode Of Production:	SMT
Layers:	Multilayer
Base Material:	FR-4
Certification:	UL
Customized:	Customized
Condition:	New

Product Description

Display Card Rogers PCB assembly High Frequency PCB assembly with Surface Treatment

Commodity Introduction
This is a type of PCB assembly job in the application of Display Control. It's composed of SMD assembly and through hole assembly. It's fabricated per IPC-A-610 using supplied Gerber data and bill of material (BOM).
The support board is 4 Layers with HASL lead free. SMD and through hole components are on both sides.

Parameters & Data Sheet

Specifications
Board dimension	116 x 99mm
Board Type	Multilayer 4 Layers
Board Thickness	1.6mm +/-0.16
Board Material	FR-4
Board Material Supplier	ITEQ
Tg Value of Board Material	135ºC

Surface Finish	HASL Lead free
RoHS Required	Yes
Surface Cu thickness	35 um (1 oz)

Color of Silkscreen	White
Number of Silkscreen	2
Solder Mask Colour	Green
Number of Solder Masks	2
Thickness of Solder Mask	13 um

Through hole assembly	YES
Sides of through hole assembly	1
SMD assembly	YES
Sides of SMD assembly	2

Total quantity of components	293
Quantity of SMT	215
Quantity of Through holes	78
Applications	Control mother board
RoHS Required	YES

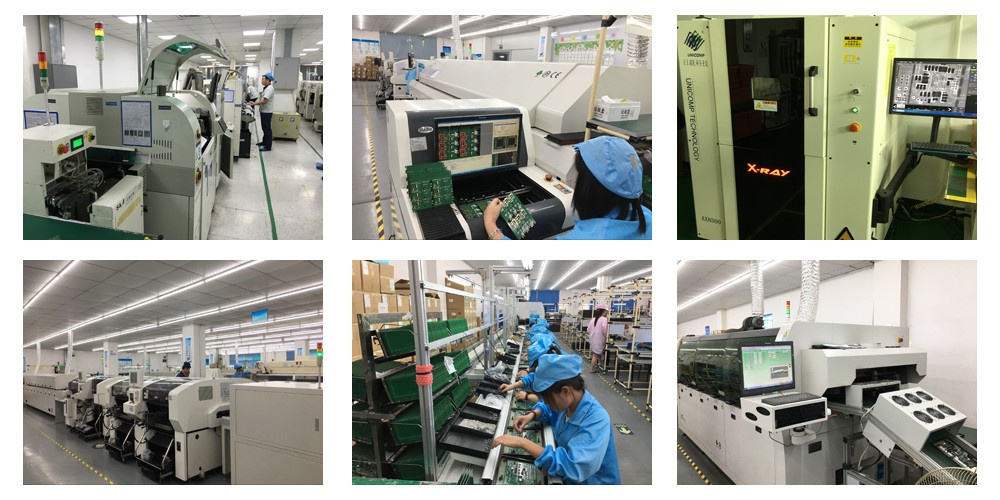

Workshop

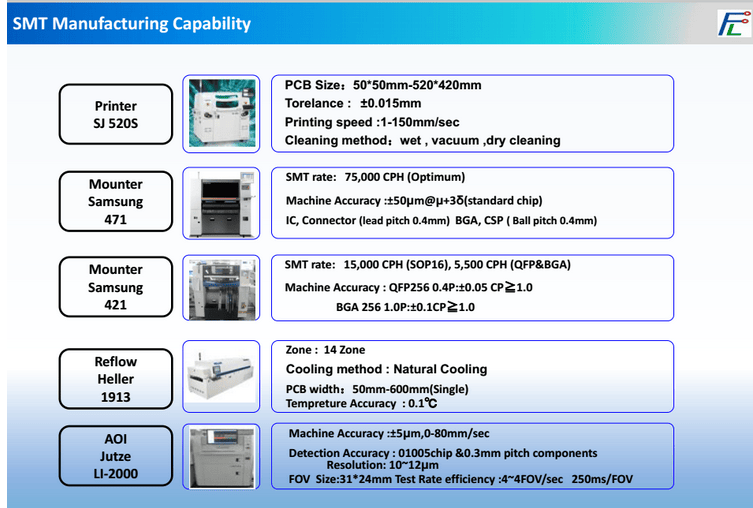

Our Capability

Ship&Package

Contatc us:

Web: www.fastlinepcb.com

Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.

Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.

And provides "PCB One-stop PCB solution" to meet customers' diverse demands.

Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.

Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
