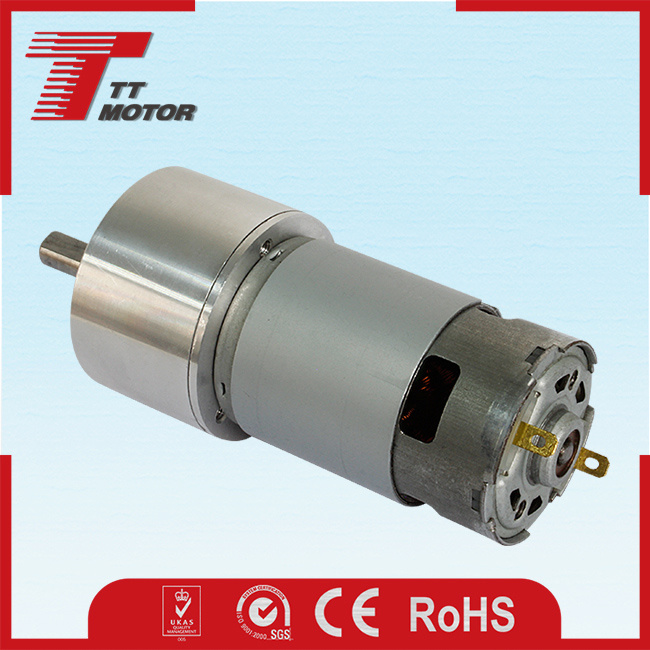

Display shelves electronic monitor DC Gear Motor with Encoders

Prod Model:	DC Gear Motor with Encoders GM51-770
Product Name:	DC Gear Motor with Encoders GM51-770
Rated Voltage:	6V,12V, 24V
No-Load Speed:	580-1100rpm
No-Load Current:	0.3-1.2mA
Rated Speed:	700-900rpm
Rated Torque:	3.4-3.6kg.cm
Rated Current:	2.3-8.6mA
Output Power:	31-40W
Max.momentary Tolerance Torque:	14kg.cm
Stall Current:	7.2-32A
Application:	Power Tools
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Excitation Mode:	Permanent Magnet
Type:	DC Gear Motor with Encoders
Certification:	RoHS.CE
Brand:	TT Motor

Product Description

Display shelves electronic monitor DC Gear Motor with Encoders

Main Features
1.OEM/ODM 51mm gear box plus 775 PM 7 series dc motor
2.Small size dc gear motor with low speed and big torque
3.51mm gear motor provide 5.0Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.Dc Gear motors can match encoder,11ppr
6.Reduction ratio:5.2,10,20,38,83,153,333,613,1333,2453


Model:Motor GM51-770
TRS-775PM-2460	Rated voltage: 24VDC	Rated speed:4500r/min	Output power:40W
	No-load speed:6000r/min	Rated torque:900g.cm	Stall torque:3600g.cm
	No-load current:300mA	Rated current:2300mA	Stall current:7.2A
TRS-775PM-0648	Rated voltage: 6VDC	Rated speed:3650r/min	Output power:32W
	No-load speed:4800r/min	Rated torque:860g.cm	Stall torque:3600g.cm
	No-load current:1200mA	Rated current:8600mA	Stall current:32A
TRS-775PM-1246	Rated voltage: 12VDC	Rated speed:3500r/min	Output power:31W
	No-load speed:4600r/min	Rated torque:860g.cm	Stall torque:3600g.cm
	No-load current:600mA	Rated current:4300mA	Stall current:16A

Gear motor technical data : GM51-775PM-2460-XXX

Reduction ratio	5	10	20	38	83	153	333	613	1333	2453
Length mm	24.1	24.1	28.3	28.3	32.5	32.5	36.8	36.8	41.1	41.1
No-load speed rpm	1100	550	280	150	70	38	18	10	4.5	2.5
Rated speed rpm	900	450	225	120	54	32	16	9	4.4	2.4
Rated torque kg.cm	3.6	7.2	12.6	24	45	50	50	50	50	50
Max.momentary tolerance torque kg.cm	14	28	50	80	80	80	80	80	80	80

Gear motor technical data : GM51-775PM-0648-XXX

Reduction ratio	5	10	20	38	83	153	333	613	1333	2453
Length mm	24.1	24.1	28.3	28.3	32.5	32.5	36.8	36.8	41.1	41.1
No-load speed rpm	890	450	230	120	55	30	14	8	3.5	2
Rated speed rpm	730	365	180	96	44	24	12	7	3.5	2
Rated torque kg.cm	3.4	6.9	12	23	43	50	50	50	50	50
Max.momentary tolerance torque kg.cm	14	28	50	80	80	80	80	80	80	80

Gear motor technical data : GM51-775PM-1246-XXX

Reduction ratio	5	10	20	38	83	153	333	613	1333	2453
Length mm	24.1	24.1	28.3	28.3	32.5	32.5	36.8	36.8	41.1	41.1
No-load speed rpm	850	430	210	110	52	29	14	7.5	3.5	1.9
Rated speed rpm	700	350	175	90	42	23	12	7	3.5	1.9
Rated torque kg.cm	3.4	6.9	12	23	43	50	50	50	50	50
Max.momentary tolerance torque kg.cm	14	28	50	80	80	80	80	80	80	80

Product Application
Home appliance, electric curtai, door lock, automatic tv rack, slot machine, currency acount machine, office autination, automatic door lock.
Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.

Other Applications:
Business Machines:	ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:	Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Home Entertainment and Gaming:	Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys.
Home Technologies:	Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines.
Lawn and Garden:	Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Personal Care:	Hair Cutting, Hair Care, Massagers.
Power Tools:	Drills and Drivers, Sanders, Grinders, Polishers, Saws.
Camera and Optical:	Video, Cameras, Projectors.
