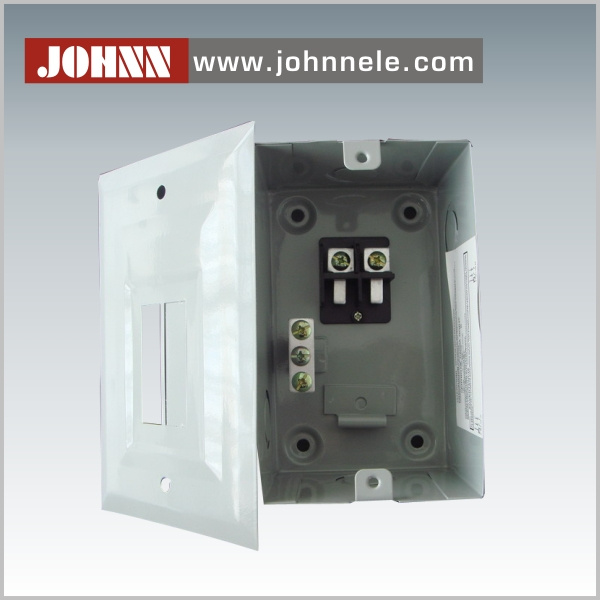

Distribution Box Accept SD Type Plug-in Circuit Breakers

Prod Model:	SD Type
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Port:	Ningbo or Shanghai
Rated Current (a):	40-100A
Rated Voltage (V):	120/240V
No. Of Way:	1-8
Material:	Iron
AC:	60Hz
Type:	Distribution Metering Box
Structure:	Fixed Board

Product Description

Detailed Information of SD Series Distribution Box

1. Model Number: SD-GPD

2. Rated Current:

50-100A

3. Rated Voltage:

120/240V

4. Frenquency:

60HZ

5. HS Code: 8537109090

6. Samples: SD Series Distribution Box 's samples is available.

7. Application:

SD Series have been designed for safe, reliable distribution and control of electrical power as service

Entrance equipment in residential, commercial and light industrial premises. They are available in Plug-in

Designs for indoor applications.

8. Feature:

* Made out of high quality steel sheet of up to 0.8-1.2mm thickness.

*Matt-Finish polyester powder coated paint.

*Knockouts provided on all sides of the enclosure.

*Accept GE type 1" THQL Breakers.

*Suitable for single-phase, Three-wire, rated current to 100A, Sevice voltage to 120/240VAC.

*Wider enclosure offers ease or wiring and move heat dissipation.

*Flush and surface mounted designs.

*Knockouts of cable entry are provided on Top, Bottom of the enclosure.

9. Delivery Time: Within 25 days after receipt deposit.

10. Delivery Methods: By Sea or By Air (Express DHL, FEDEX, TNT).

11. Payment Terms: L/C, T/T, Western Union, Money Gram; 30% deposit, balance see the copy of B/L by email or negotiation.

12. Unit Price: The price is negotiable.
