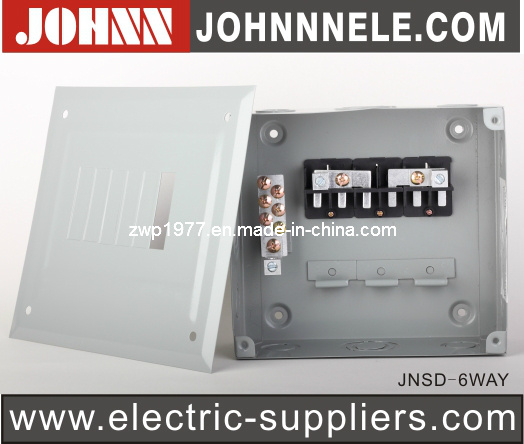

Distribution Box Metal Box with Good Quality

Name: Distribution Box Metal Box with Good Quality
Brand: all-electronics-online.com
SKU: 727849625
Availability: InStock
Rating: 4.7 (51 reviews)

Price:	US $ 0.29-6.2/Piece
Trade Terms:	FOB,EXW
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JNSD 6WAY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Port:	Ningbo or Shanghai
Rated Current(a):	50, 60, 100
Rated Voltage(V):	120, 120/240, 220/127
No.of Way:	1, 2, 4, 6, 8
Material:	Iron
AC:	60Hz
Delivery Detail:	Within 25 Days After Receipt Deposit
Type:	Distribution Metering Box
Structure:	Fixed Board

Product Description

1. Application:
SD series Load Centers have been designed for safe, reliable distribution and control of electrical power as service entrance equipment in residential, commercial and light industrial premises. They are available in Plug-in designs for indoor applications.
This series load centers are suitable for AC 60Hz, rated voltage to 240V VAC, rated current to 100A, load centers are top or bottom feed; Indoor fronts listed as combination are flush or surface mount. Load centers accept Square D type plug-in circuit breakers.

2. Details Information
Model number: SD

Rated Current: 50A, 60A, 100A

Rated Voltage: 120V, 120/240V, 220/127V

HS Code: 8537109090

Samples: SD Series Distribution Box 's samples is available.

Product Number	Front Type	Main Ampere Rating	Rated voltage	No. of way	Rated phase
SD1F	Flush	50	120	1	Single
SD1S	Surface	50	120	1	Single
SD2F	Flush	50	120/240	2	Single
SD2S	Surface	50	120/240	2	Single
SD3F	Flush	100	220/127	3	Single
SD3S	Surface	100	220/127	3	Single
SD4F	Flush	60	120/240	4	Single
SD4S	Surface	60	120/240	4	Single
SD6F	Flush	100	120/240	6	Single
SD6S	Surface	100	120/240	6	Single
SD8F	Flush	100	120/240	8	Single
SD8S	Surface	100	120/240	8	Single

Our Yueqing Jianghong electrical appliance factory is a new style manufacturer whom focuses on the research and development of Miniature circuit breaker, terminal block and electric accessories in China. Our Products had exported to Middle East countries, South Asia, Africa USA, Europe, Africa and South America etc more than 20 countries by feedback good reputation. Jianghong found in year 2004, after several years ' improvement, from a small workshop developing to a team working includes design and research department, international department, financial department. One the way to the bright tomorrow, Jianghong Electrical which passed ISO9000 system are striving to put the quality as the basis of development, all our circuit breaker and terminal block are strict to according national and international standard. Most of them were approved by CE& RoHS certificate and all electric breaker compliance to IEC standard. Sincerely work with you to create a better tomorrow.
