Distribution Box, St, Enclosure, Metal Box

Prod Model:	ST distribution box
Distribution Box:	IP65
Service:	OEM and ODM
Type:	Distribution Metering Box
Structure:	Protection
Brand:	Bsd

Product Description

 1.Description

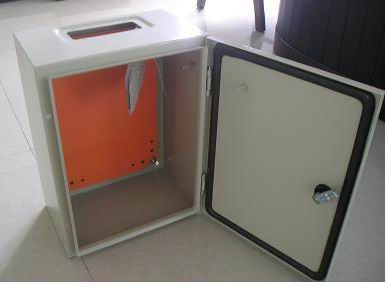

Metal enclosure made from a continiou length of sheet double folded at the front, with back welded to the frame. Both externally and internally protected with polyester epoxy resin Grey paint to RAL-7032 texturized


2.Technical parameters

Paint Finish:            Epoxy polyester powder coating textured finish ( outdoors style)
Protection degree:  IP66
Material:                  Sheet steel from 1.2mm till 1.5mm (or requested thickness from client)
Color:                      RAL 7032
Against mechanical impacts: IK10

3.Features:
♦  IP-65 Protection level
♦  Integrated with splice cassette and cable management tools
♦  Manage large quantities of fiber with a high packing density
♦  Easy to maintain and extend the capacity
♦  Fiber bend radius control more than 40mm
♦  Suitable for the fusion splice or mechanical splice or fast connector
♦  Capacity of fiber up to 288 core
♦  Varies of adaptors are available
♦  1*8 or 1*16 PLC Spliter can be installed as an option
♦  Efficient cable management



Dimentions(mm)
height	width	depth	No.of locks	No.of Hinges
300	200	150	1	2
300	250	150	1	2
300	300	150	1	2
400	300	150	2	2
400	300	200	2	2
400	400	200	2
500	400	200	2	2
600	400	200	2	2
600	600	250	2	2
700	500	250	2	2
800	600	250	2	2
800	800	300	2	2
1000	800	300	2	3
1200 ......More	800 ......more	300 ......more	2 3	3 3
