Distribution Box with Three Phase

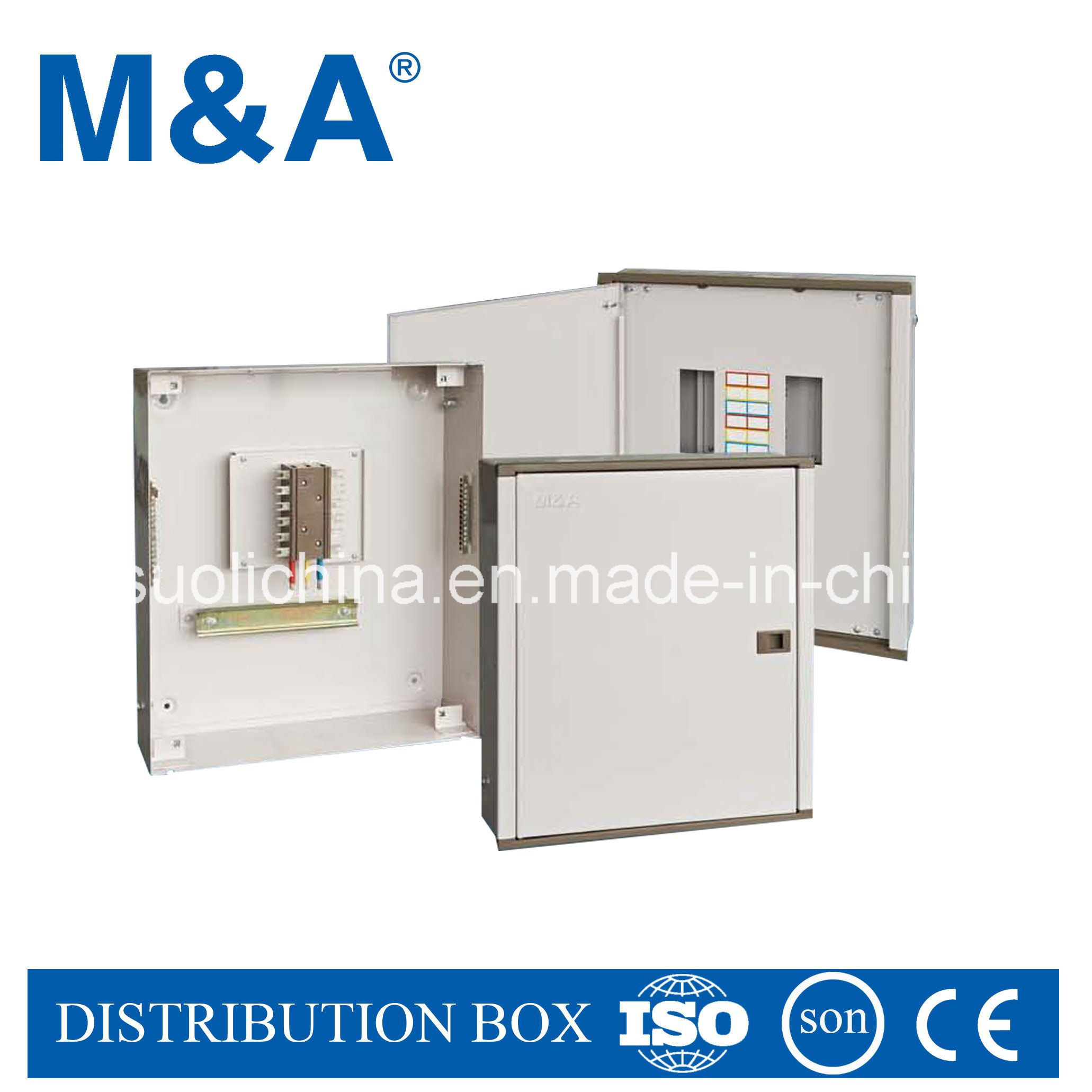

Name: Distribution Box with Three Phase
Brand: all-electronics-online.com
SKU: 702427962
Availability: InStock
Rating: 4.6 (35 reviews)

Price:	US $ 5.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MDB-H Three Phase
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Steel
Type:	Distribution Metering Box
Structure:	Fixed Board

Product Description

Features:

1) Metal enclosure is made of continous steel sheet, double folded at the front, with back welded to the frame. Externally and internally protected with polyester epoxy resin and grey painted to RAL7035 texture.
2) New serise SLDB15 with transparent security glass door
3) Welded studs on the back for direct fixing of mixing plate or other accessories.
4) Perforated door reinforcement profiles allowing fixing of equipment.
5) Concealed and easily removable hinges allowing over 120-degree door opening.
6) Foamed-in polyurethane gasket and front rain gutter encures high degree of protection.

NO.	Code no.	HEIGHT	WIDTH	DEEP	Brand
		mm
	Wall mounting enclousre ( SLDB15 SERIES)
1	SLDB15 -2020/150	200	200	150	M & A
2	SLDB15 -2520/150	250	200	150	M & A
3	SLDB15 -3020/150	300	200	150	M & A
4	SLDB15 -3020/200	300	200	200	M & A
5	SLDB15 -3025/150	300	250	150	M & A
6	SLDB15 -3025/200	300	250	200	M & A
7	SLDB15 -3025/250	300	250	250	M & A
8	SLDB15 -3030/150	300	300	150	M & A
9	SLDB15 -3030/200	300	300	200	M & A
10	SLDB15 -3030/250	300	300	250	M & A
11	SLDB15 -4030/150	400	300	150	M & A
12	SLDB15 -4030/200	400	300	200	M & A
13	SLDB15 -4030/250	400	300	250	M & A
14	SLDB15 -4030/300	400	300	300	M & A
15	SLDB15 -4040/150	400	400	150	M & A
16	SLDB15 -4040/200	400	400	200	M & A
17	SLDB15 -4040/250	400	400	250	M & A
18	SLDB15 -4040/300	400	400	300	M & A
19	SLDB15 -5030/150	500	300	150	M & A
20	SLDB15 -5030/200	500	300	200	M & A
21	SLDB15 -5030/250	500	300	250	M & A
22	SLDB15 -5030/300	500	300	300	M & A
23	SLDB15 -5040/150	500	400	150	M & A
24	SLDB15 -5040/200	500	400	200	M & A
25	SLDB15 -5040/250	500	400	250	M & A
26	SLDB15 -5040/300	500	400	300	M & A
27	SLDB15 -5050/150	500	500	150	M & A
28	SLDB15 -5050/200	500	500	200	M & A
29	SLDB15 -5050/250	500	500	250	M & A
30	SLDB15 -5050/300	500	500	300	M & A
31	SLDB15 -6040/150	600	400	150	M & A
32	SLDB15 -6040/200	600	400	200	M & A
33	SLDB15 -6040/250	600	400	250	M & A
34	SLDB15 -6040/300	600	400	300	M & A
35	SLDB15 -6050/150	600	500	150	M & A
36	SLDB15 -6050/200	600	500	200	M & A
37	SLDB15 -6050/250	600	500	250	M & A
38	SLDB15 -6050/300	600	500	300	M & A
39	SLDB15 -6060/150	600	600	150	M & A
40	SLDB15 -6060/200	600	600	200	M & A
41	SLDB15 -6060/250	600	600	250	M & A
42	SLDB15 -6060/300	600	600	300	M & A
43	SLDB15 -6060/400	600	600	400	M & A
44	SLDB15 -7040/200	700	400	200	M & A
45	SLDB15 -7040/201	700	400	300	M & A
46	SLDB15 -7050/150	700	500	150	M & A
47	SLDB15 -7050/200	700	500	200	M & A
48	SLDB15 -7050/250	700	500	250	M & A
49	SLDB15 -7050/300	700	500	300	M & A
50	SLDB15 -7060/200	700	600	200	M & A
51	SLDB15 -7060/250	700	600	250	M & A
52	SLDB15 -7060/300	700	600	300	M & A
53	SLDB15 -8060/200	800	600	200	M & A
54	SLDB15 -8060/250	800	600	250	M & A
55	SLDB15 -8060/300	800	600	300	M & A
56	SLDB15 -8080/200	800	800	200	M & A
57	SLDB15 -8080/250	800	800	250	M & A
58	SLDB15 -8080/300	800	800	300	M & A
59	SLDB15 -8080/400	800	800	400	M & A
60	SLDB15 -1060/200	1000	600	200	M & A
61	SLDB15 -1060/250	1000	600	250	M & A
62	SLDB15 -1060/300	1000	600	300	M & A
63	SLDB15 -1070/200	1000	700	200	M & A
64	SLDB15 -1070/250	1000	700	250	M & A
65	SLDB15 -1080/200	1000	800	200	M & A
66	SLDB15 -1080/250	1000	800	250	M & A
67	SLDB15 -1080/300	1000	800	300	M & A
68	SLDB15 -1010/250	1000	1000	250	M & A
69	SLDB15 -1010/300	1000	1000	300	M & A
70	SLDB15 -1010/400	1000	1000	400	M & A
71	SLDB15 -1260/200	1200	600	200	M & A
72	SLDB15 -1260/250	1200	600	250	M & A
73	SLDB15 -1260/300	1200	600	300	M & A
74	SLDB15 -1280/200	1200	800	200	M & A
75	SLDB15 -1280/250	1200	800	250	M & A
76	SLDB15 -1280/300	1200	800	300	M & A
77	SLDB15 -1210/250	1200	1000	250	M & A
78	SLDB15 -1210/300	1200	1000	300	M & A
79	SLDB15 -1210/400	1200	1000	400	M & A
80	SLDB15 -1210/300	1200	1200	300	M & A
81	SLDB15 -1210/400	1200	1200	400	M & A

Wenzhou Suoli Electric Co, . Ltd. (will change the namer to Wenzhou Manjia Electric Co., Ltd. ) is a manufacturer specialized in low-voltage electrical appliance, gathering research, manufacture, distribution and service as a whole. We mainly produce switch cabinet, JXF, distribution box, lighting box, plastic water-proof and dust-proof junction box, seal box, MCBs and so on.

Our company is established in 1995, located in Yueqing economic development zone with an area of 7800 square meters which is next to national highway 104, the transportation is very convenient.

Relying on powerful technology strength, advanced testing equipment, exquisite technical and modernized management mode, based on the principle that people oriented, we have 200 workers and 20 engineers. We import numerical control bending machine, cutting machine, punch, injection molding machine and such top-ranking facilities. Our products have passed certification of SON, CE and ISO9001.

The satisfaction of customers is our wishes and responsibility. In order to offer best services, we require all the staff to strengthen the notion of customer first. Besides, we also have established the center of after-sale services.

The company always keeps in touch in with clients and communicates with potential clients. Suoli always has been keeping the idea of the human being as base and considers honesty as the foundation, peace as the most valuable thing, and puts credibility in the first place.

Together with you, Souli is willing to create a better future.
