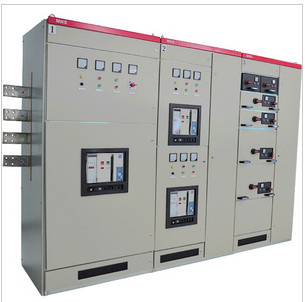

Distribution System Power Distribution Box Power Equipment Switchgear/Switchboard
| Price: |
US $ 2000-5000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Ggd serires |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
voltage Modular power distribution cabinet
NGD(MNS) low - voltage Modular power distribution cabinet
Product Description
Application:
GGD AC Low voltage power distribution cabinet is applicable to power consumers of power plants, substations, industrial and mining enterprises and is used for electric energy conversion, distribution and control of power, lighting and power distribution equipment in power distribution system with AC 50Hz, rated operating voltage of 380V and rated operating current of up to 3,150A.
Executive Standard:
| Standard number | Description |
| GB7251-2013 | Low voltage switchgear and controlgear |
| IEC60439 | Low voltage switchgear and controlgear assemblies |
| IEC60529 | Standards and degrees of protection by enclosures |
Product Description:
Features:
1) Reasonable structure and layout
2) Easy to operate
3) Use and maintenance of low cost
Technical Parameter
Operating Conditions:
| NO. | Description | Requirement |
| 1 | Ambient temperature | -5°C-+40°C |
| 2 | Daily average temperature(Within 24h) | ≤35°C |
| 3 | Altitude(Indoor installation) | ≤2000Meter |
| 4 | Relative humidity | 50%(+40°C)-90%(+20°C) |
| 5 | Inclination(Vertical installation) | ≤5° |
Particular attention:
*The product shall be installed in a place where there is no severe vibration and is not enough to cause the electrical components to be corroded.
*When customers have special requirements, we can negotiate to provide special custom services.
Technical Parameter:
| NO. | Description | Unit | Data |
| 1 | Rated voltage | V | 380 |
| 2 | Rated insulation voltage | V | 660 |
| 3 | Rated frequency | Hz | 50 |
| 4 | Protection degree | / | IP30 |
| Model | Rated current(A) | Rated short-time withstand current(KA) | Rated peak withstand current(KA) |
GGD1 | A | 1000 |
15 |
30 |
| B | 600(630) |
| C | 400 |
GGD2 | A | 1500(1600) |
30 |
63 |
| B | 1000 |
| C | / |
GGD3 | A | 3150 |
50 |
105 |
| B | 2500 |
| C | 2000 |
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
