| Prod Model: |
S11-M. RL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Elevation Height: |
Less Than 1000m |
| Application: |
Audio |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
Product Description
General:

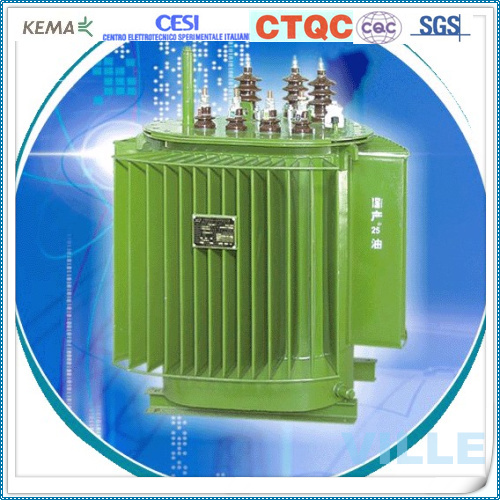

S11-M. RL, Three Phase Distribution Transformer with three-dimensional wound core is a new type hi-tech and high energy-saving product. Compared with series S9, 80% of no-load current and 30-40% of no-load loss can be decreased, 8-13dB in noise level can be reduced. It is applicable for distribution, power supply and lighting in industrial, agricultural, mineral, petrochemical fields.
Application:
S11-M.RL Three phase Stereoscopic Scroll iron Core Distribution Transformer is the product of new type high technology and high save energy. Compared with S9, S11-M.RL's no-load current hangs down 70-80% and no-load loss reduction 30-40% and noise reduces 8-10dB. It is extensively suitable in factory, mines, petroleum chemical industry and the distribution of industry and agriculture, motive force and illumination, and especially is suitable in the power supply place of higher requirement.
Product Features:
The iron core is three phase stereos scroll iron core structure which combined by three single-frame scroll iron core. The direction of silicon steel block rolling is the same as the magnetic route direction, three single-frame iron core are opposite independence, three-phase magnetic route are the same distance and does not have the magnetic field distortion in plane scroll iron core triangle area. Iron core pillar and yoke section is close to round and the HV and LV circle directly winds on the iron core, and the fuel tank is the bucket type fuel tank of approximate triangle. It possess the merits of strong resisting short circuit ability, small no-load current, low noise, small volume, light weight and low temperature rising. The technology quota is advanced, structure is unique and the appearance is exquisite .
Normal service condition:
Elevation height: less than 1000m
Environmental temperature:
Max. Temperature +40 oC
Max. Daily average temperature: +30 oC
Max. Annual average temperature +20 oC
Min. Temperature -30 oC
Operation environment outdoor:
Symmetry of multi-phase power source
Three-phase power sources shall be almost symmetrical.
Feature:
1. Three-dimensional wound core consists of three core limbs whose cross-section is close to circle. Magnetic circuit in three phase is totally symmetrical and identical, which shortens the yokes but makes factor of core limb bigger.
2. After annealing, internal stress can be removed thoroughly for three-dimensional wound core. There is no higher magnetic reluctance everywhere in its circuit, so no-load loss and energizing current can be decreased greatly. The test shows that more than 80% of no-load current and 30-40% of no-load loss can be decreased.
3. Only fewer joint caused by continuous wound core, there should no noise occurred due to the blocking inside the magnetic circuit of stacking core. In such way, 8-13dB in noise level can be reduced, which is almost in the state of noise silence.
4. Triangle tank is used for such transformer so it is smaller than the normal one. In a word, it is impact, small size with artistic appearance
Technical Data:
| Product Type | Rated Capcity (kVA) | No-Load Loss (W) | Load Loss (W) | I0(%) | UK(%) |
|
| S11-M.RL | 30 | 90 | 600 | 0.60 | 4.0 |
| S11-M.RL | 50 | 120 | 870 | 0.60 |
| S11-M.RL | 63 | 140 | 1040 | 0.57 |
| S11-M.RL | 80 | 175 | 1250 | 0.54 |
| S11-M.RL | 100 | 200 | 1500 | 0.48 |
| S11-M.RL | 125 | 235 | 1800 | 0.45 |
| S11-M.RL | 160 | 280 | 2200 | 0.42 |
| S11-M.RL | 200 | 335 | 2600 | 0.39 |
| S11-M.RL | 250 | 390 | 3050 | 0.36 |
| S11-M.RL | 315 | 465 | 3650 | 0.33 |
| S11-M.RL | 400 | 560 | 4300 | 0.30 |
| S11-M.RL | 500 | 670 | 5150 | 0.30 |
| S11-M.RL | 630 | 840 | 6200 | 0.27 |
| S11-M.RL | 800 | 1000 | 7500 | 0.24 |
| S11-M.RL | 1000 | 1200 | 10300 | 0.24 | 4.5 |
| S11-M.RL | 1250 | 1400 | 12000 | 0.24 |
| S11-M.RL | 1600 | 1700 | 14500 | 0.22 |
