Distribution Transformer

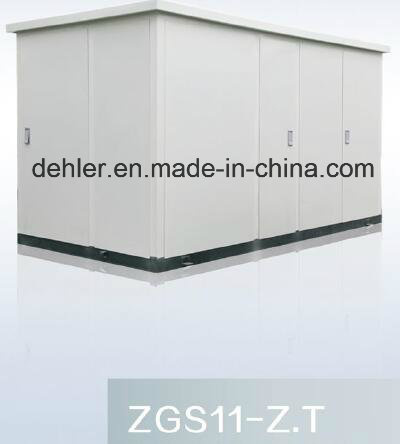

Name: Distribution Transformer
Brand: all-electronics-online.com
SKU: 839600995
Availability: InStock
Rating: 4.3 (40 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZGS11-Z. T

Product Description

.Rated voltage: HV: 6/10kV, LV: 0.4kV Capacity: 30, 50, 63, 80, 100, 125, 160, 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000kVA Frequency: 50Hz Phase: Single phase and 3-phase Vector group: Dyn11, Yyn0 Impedance voltage: According to national standards Operation environment: In the basement or cellar Loss: Reaching national standard S11 series parameters Enclosure protection leve: IP68 Noise level: ≤ 55dB

Transformer body--technical parameters and dimension

ZGS11-Z-D buried type transformer

Capacity(KVA)	Loss(KW)		Short-circuit impedance(%)	No-load current(%)	Dimension(mm)			Weight(kg)
Capacity(KVA)	No-load loss	Load loss	Short-circuit impedance(%)	No-load current(%)	L	W	H	Weight(kg)
30	0.1	0.6	4	1.9	1250	950	1360	900
50	0.13	0.9		1.8	1250	950	1360	950
80	0.18	1.31		1.6	1250	950	1360	990
100	0.20	1.58		1.5	1340	950	1450	1030
125	0.24	1.89	4.5	1.4	1340	980	1450	1060
160	0.27	2.31		1.3	1380	1020	1450	1150
200	0.33	2.73		1.2	1380	1020	1550	1340
250	0.4	3.2		1.1	1420	1320	1550	1590
315	0.48	3.83		1.0	1420	1100	1610	1730
400	0.57	4.52		1.0	1420	1100	1700	1990
500	0.68	5.41		0.9	1420	1160	1760	2370
630	0.81	6.2		0.9	1550	1160	1860	2650
800	0.98	7.5		0.8	1760	1200	1890	2990
1000	1.15	10.3		0.7	1930	1250	1890	3320

Our company supplies different kinds of products.High quality and favorable price.We're pleased to get your Inquiry and we will come back to as soon as possible.We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.To perfect our service, we provide the products with good quality at the reasonable price.
