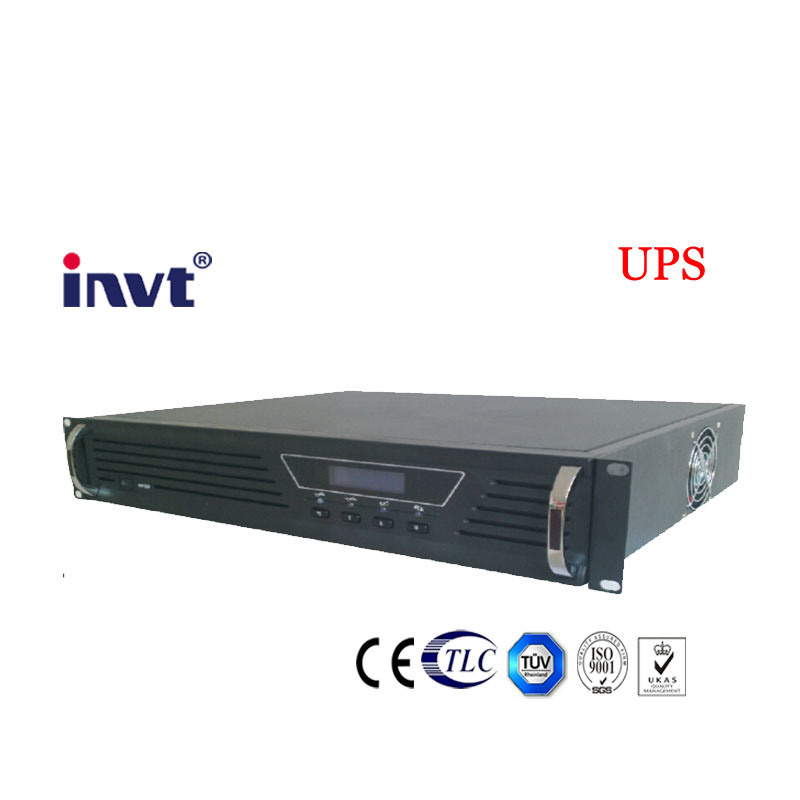

Div Series Power Inverter

Prod Model:	DIV
Output Power Factor:	>0.8
DC Voltage:	12V 24V 48V 110V 220V
AC Output:	110V 220V 230V 240V
Protection:	Overvoltage
Power Source:	Electric Power
Application:	Electric Tools
Phase:	Single
Brand:	Invt

Product Description

Features of Inverter
1. With DSP control, DIV Series inverter is an intelligence model product, good designing and reliability are the advantages.
2. DIV series inverter is adopting SPWM technology, with the output of stabilized voltage and frequency, pure sine-wave.
3. DIV series inverter has good compatibility, built-in by-pass switch, high overload feature for reliable and continuous power supply.
4. DIV series inverter can be AC power type and DC power type:
AC power type means the city power supply is main when the city power is normal, when city power is off, inverter comes into work state.
DC power type means the inverter power supply is main when the city power is normal, when inverter power is off, city power comes into work state automatically.
5. With the excellent designing, DIV series inverter can be auto switched to bypass on the running state, it's easy to maintain and replace the battery without effecting load power supply.
6. In case there is battery voltage high/low or overload, the overload warning shutdown output, when battery voltage recovers normal, battery voltage recovers; Power supply output will auto recovers in 50 seconds after overload off. This function is very suitable for the communication station in which there is no person on duty.
7. DIV series inverter can support network communication system, power working state can be monitored by the supervision software.
8. DIV series inverter provides with two dry connectors which can be used for DC input fault checking and AC output problem warning.

Model		500VA	1000VA	2000VA	3000VA	4000VA	5000VA	6000VA
DC INPUT	Input Voltage (Vdc)	12V/24V/48V/110V/220V
	Reverse Noise Current	≤ 10%
AC Bypass	Bypass Volt(Vac)	265V-185V(± 10V)
	Input Current(A)	2.3	4.5	9.1	13.6	18.2	22.7	27.3
	Transfer Time(ms)	≤ 5ms
AC OUTPUT	Rated Capacity(VA)	500VA	1000VA	2000VA	3000VA	4000VA	5000VA	6000VA
	Output Power(W)	400W	800W	1600W	2400W	3200W	3500W	4200W
	Voltage and Frequency	220Vac, 50HZ
	Output Current(A)	1.8	3.6	7.2	10.8	14.5	16	19.1
	Voltage Precision(V)	220± 1.5%
	Frequency Precision(Hz)	50± 0.1%
	Output	Pure Sine Wave
	Wave Distortion(THD ) (Resistant Load)	≤ 3%
	Dynamic Reaction Time (Load 0← → 100%)	5%
	Power Factor(PF)	0.8/0.7/0.6
	Overload	220%, 30 sec
	Inversion Efficiency (80% Resistant Load)	≥ 85%
	Transfer Time(ms)	≤ 5ms
ENVIRONMENT	Isolation(IN/OUT)	1500Vac, 1minute
	Noise(1 meter)	≤ 40dB
	Temperature	- 25C~+50C
	Humidity	0~90%
	Sea Level(m)	≤ 2000
DISPLAY	LCD	Input/output voltage, frequency, output current, temperatuer
	LED	line, inverter, battery, output Load
MECHANICAL	19 Inch Rack Type (D× W× H)(mm)	360*448*88 (DIV 24-1KVA; DIV 48-1KVA/2KVA; DIV 110-1KVA/2KVA; DIV 220.1KVA/2KVA) 390*448*88 (DIV 24-2KVA; 3KVA; 4KVA; 5KVA; 6KVA)
	Weight(Kg)	7KG (1KVA); 8KG (2KVA); 11KG (3KVA); 12KG (4KVA); 13KG (5KVA); 14KG (6KVA)
