| Prod Model: |
SJW-WB100KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Current Type: |
AC |
| Phase: |
Three Phase |
| Usage: |
Sjw-Wb |
Product Description

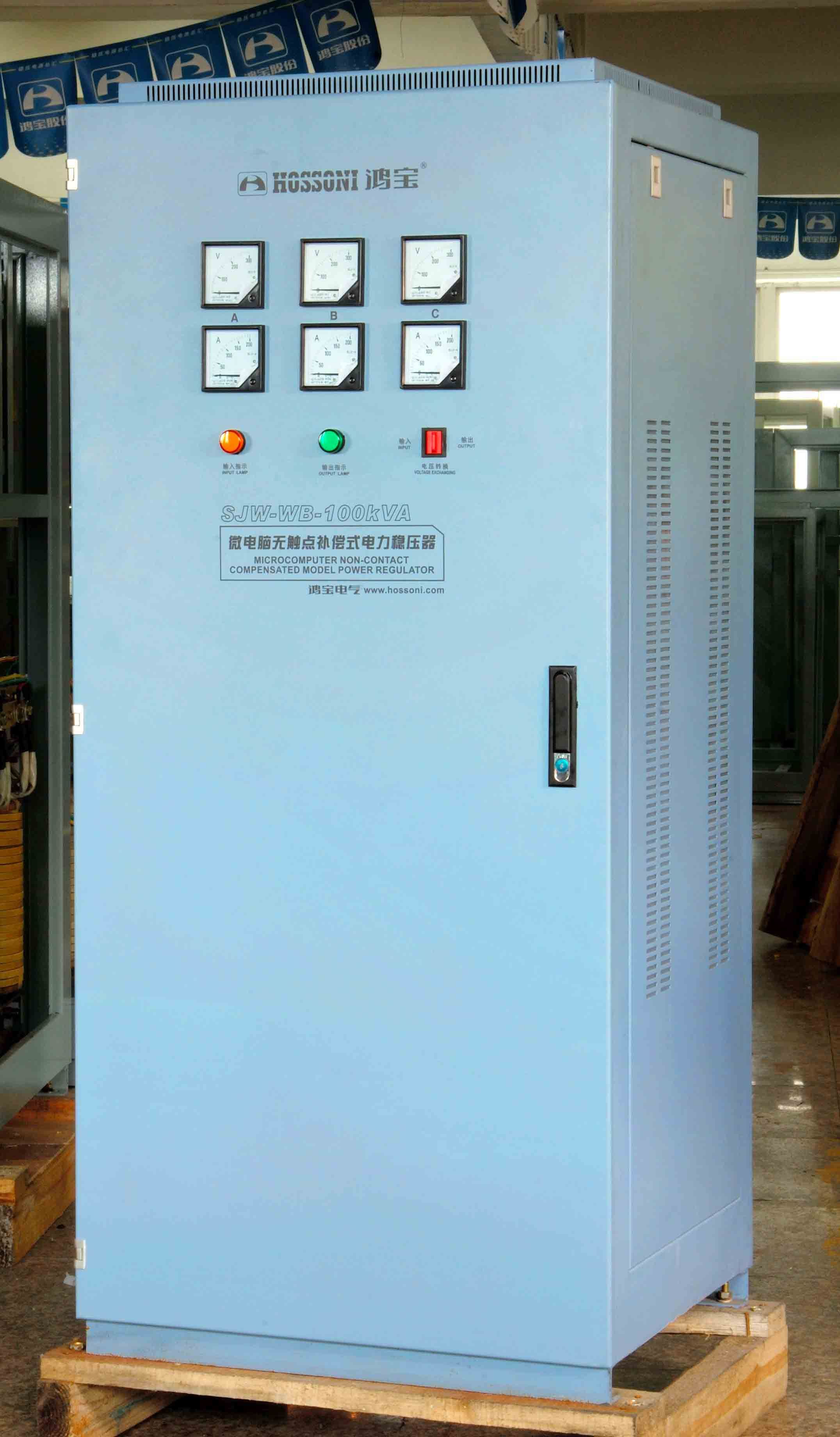

DJW-WB(single phase), SJW - WB(three phase) series microcomputer contactless compensation voltage stabilizer (hereinafter referred to voltage stabilizer ) is the latest high-power AC voltage stabilization power supply, designed with the international advanced technology. It integrates sophisticated compensation mode of compound windings, contactless switch and technology of microcomputer control AC voltage regulation, has the features of high efficiency, energy-saving, fast adjustment, automatic balance of three phases, no machinery malfunction or carbon brush wearing and has the function of time delay, over voltage or under voltage alarming and protection. In addition, this voltage stabilizer can successfully prevent contactless switch being damaged for co - state current impact and over voltage produced by transient running of system and unit, has strong instantaneous overload ability, so it can greatly improv e the reliability of system operation.
Main technology characteristics
Range of input voltage: +20%
Range of output voltage adjustment: -5%
Accuracy of voltage stabilization: ± 2.5%
Efficiency: >95%
Absolute value of load power factor: >0.7
Strain time: 0.2~0.5S
Split-phase adjustment, automatic balance of three phases
Can bear instantaneous overload of 1.5-2 times
Contactless, no noise, no machinery and carbon brush abrasion
With the function of protection against over voltage, under voltage and phase failure, fault diagnosis, signal display as well as alarming.
Standard power supply: Single-phase 220V, three-phase 380V, frequency 50-60Hz.
Range of
voltage
stabilization(v)
|
Accuracy of
voltage
stabilization(%)
|
Model
|
Output current
(A)
|
Single-phase
176V-264V
(±20%)
|
2.5
|
DJW-WB-10KVA
|
45
|
DJW-WB-15KVA
|
68
|
DJW-WB-20KVA
|
91
|
DJW-WB-30KVA
|
136
|
DJW-WB-50KVA
|
227
|
DJW-WB-60KVA
|
273
|
DJW-WB-80KVA
|
364
|
DJW-WB-100KVA
|
455
|
Three-phase304V
/456V(±20%)
|
2.5
|
SJW-WB-10KVA
|
15
|
SJW-WB-15KVA
|
22
|
SJW-WB-20KVA
|
30
|
SJW-WB-30KVA
|
45
|
SJW-WB-50KVA
|
76
|
SJW-WB-100KVA
|
152
|
SJW-WB-150KVA
|
227
|
SJW-WB-180KVA
|
273
|
SJW-WB-200KVA
|
303
|
SJW-WB-225KVA
|
333
|
SJW-WB-250KVA
|
379
|
SJW-WB-300KVA
|
455
|
