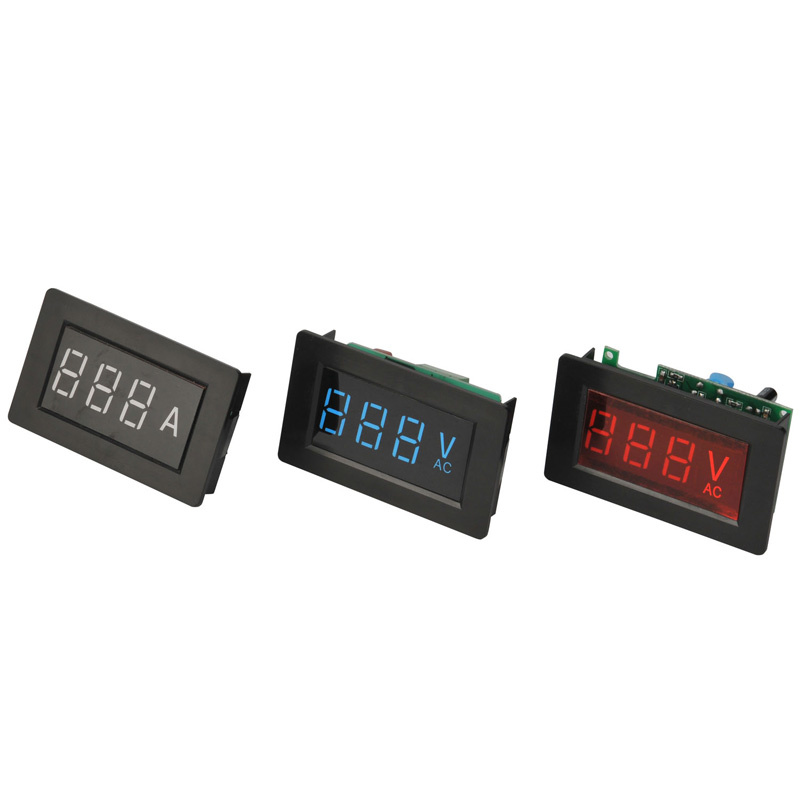

Dl85 Digital Current Meter Ammeter

Product Description

The  digital current meter has good stability, high accuracy, easy to install. With appearance of various kinds of pointer traditional voltage, current meter and hole.

 Technical specification:

1. Accuracy Class: +_1.0%F.S +_1

2. Current range: 0~1000A (0-9.999A)

3. Display mode: 0.56" LED; red, blue, green, yellow

4. Power supply: 8-30V  AC/DC

5. Working circumstance: 0-50C

    Relative humidity: less than 85%

6. Working current < 20MA

7. Measurement rate>3 times/S

  Meaning of the model code

                                            D  (         )  ----    (        )     (        )      (        )

                                           (1)                 (2)           (3)            (4)

(1) .   Product classification

    L: Current                          Y: Voltage                         H: Frequency meter                          W: Power meter

(2).    External dimension and installation hole(mm)

85:  70x42x38 mm     62x37

48:  48x48x30 mm    44x44

69:  79x43x20 mm    71x39

80:  80x80x30 mm    75x75

44:  52x34x30 mm    47x29

96:  96x48x30 mm    92x44

(3).   Power supply

        1. AC80~260V                         2. AC180~420V                  3. AC/DC 12~30V

(4).   No power supply an external signal input directly
