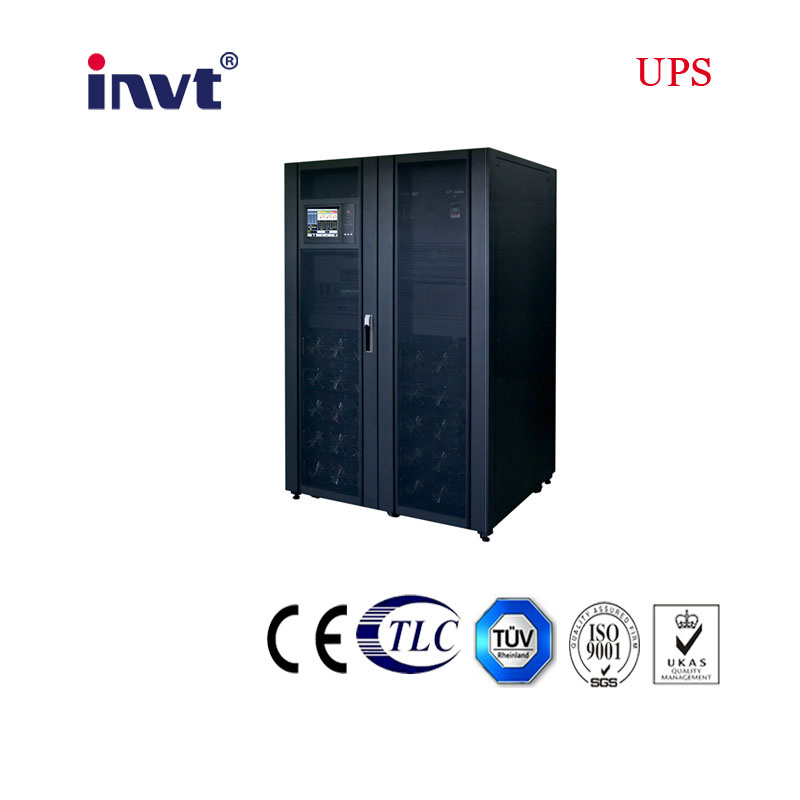

Dm Series-Modular Online 300kVA UPS

Name: Dm Series-Modular Online 300kVA UPS
Brand: all-electronics-online.com
SKU: 829918215
Availability: InStock
Rating: 4.3 (133 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DM300/30X
Capacity:	300kVA
Frequency Range:	40Hz-70Hz
Power Factor:	0.9
Voltage Precision:	1%
Display:	Color LCD Touch Screen+ LED+ Keyboard
IP Class:	IP20
Charge Power:	20%*System Power
Phase:	Three Phase
Type:	On-line
Protection:	Lightning
Brand:	Invt

Product Description

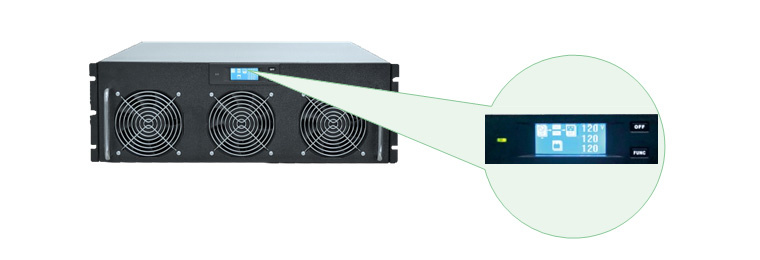

Independent LCD for Each Power Module

Each power module has an independent LCD, gives users' direct overview of status data and alarms in real time.

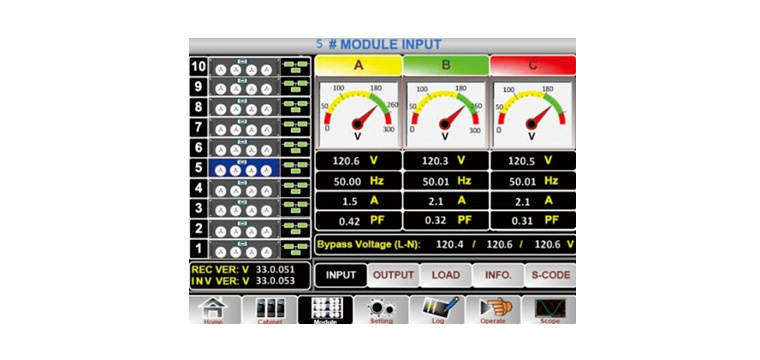

Friendly Interface

10.4" touch color LCD with comprehensive graphical information of operation, easier for customer to maintenance.

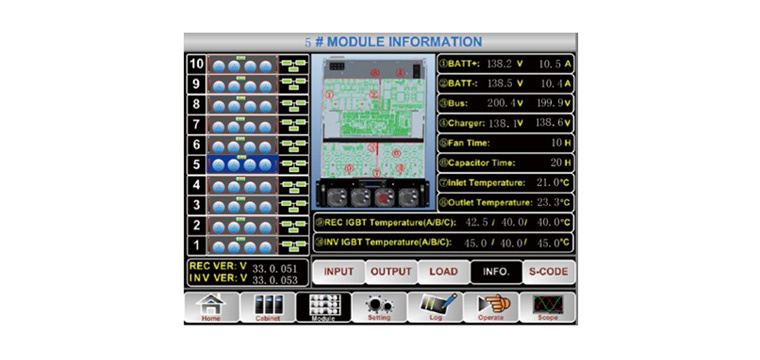

Comprehensive Monitoring Management

In each power module, information of critical components is monitored and displayed in real time, giving customers a view of inner status of the system and providing reminder information for maintenance.

Maintenance reminder, running time of capacitors and fans displayed and recorded
Comprehensive temperature monitoring for thermal abnormal detection
Intelligent battery charger for long battery life

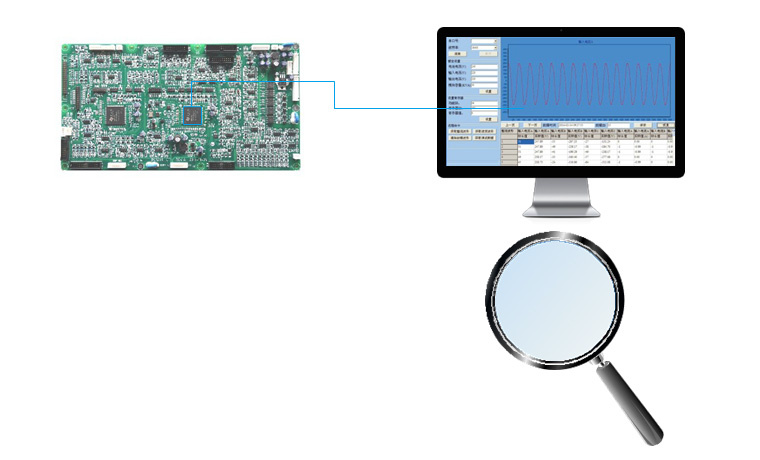

Critical Waveform Recording

UPS can record and save the data of the main parameters automatically when faults happen for further analysis.

Can record data information and present as waveform for further analysis
Can easily spot the causes of the failures, avoid future similar faults

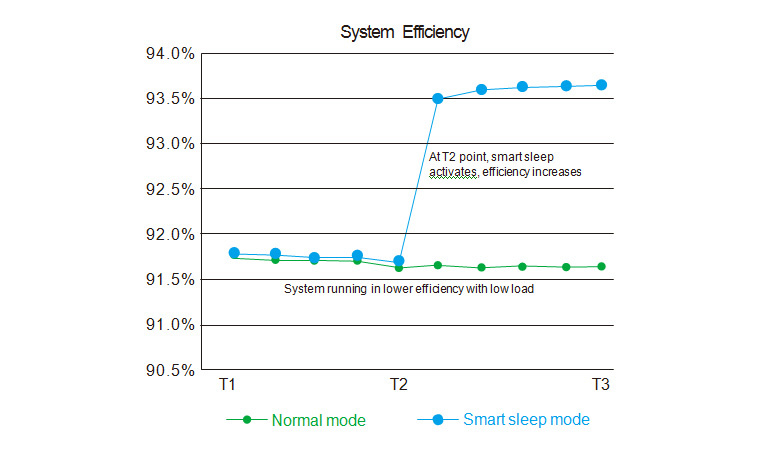

Smart Sleep
Smart Sleep function can intelligently make some power modules go to sleep when load is relatively low, improving the efficiency of the remaining power modules and saving customers on power and cooling costs.

Self-aging
Self-aging is an advanced function applied in all three phase UPS, Self-aging function can test UPS under different load situation without real load, saving more than 90% of energy.
Simulate different load conditions without connecting to any real load, saving more than 90% of energy
On site setting supported, easy for factory testing

Programmable Dry Contacts

Programmable dry contacts are available in all DM, RML and DT33 series UPS. Customers can easily expand or modify the definition of each port.

Abundant options with three inputs and four outputs, all programmable
Easy setting, just pull the drop-down menu and set
Compatible with all the DM, RML and DT33 series

The DM series modular UPS provides the compact footprint of less than 4.5 sq.m with maximum capacity of 900kVA in parallel,
designed to protect any critical load for medium and larger data center achieving maximum availability. The DM series feature the latest technology of 3-level technology and PFC input control, which guarantees high efficiency of 94% and ultra-reliability, making it an excellent choice for medium and larger facilities.

As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.

The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.

INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
