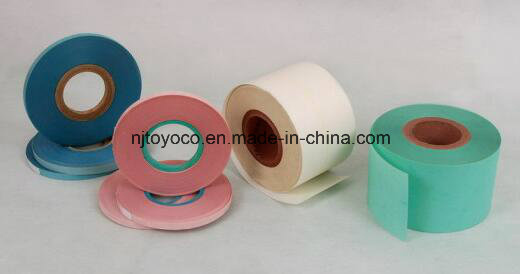

DMD and DMD Prepreg

Name: DMD and DMD Prepreg
Brand: all-electronics-online.com
SKU: 715101622
Availability: InStock
Rating: 4.3 (61 reviews)

Price:	NegotiableKg
Min Order:	50Kg
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

ID Of The Core:	50 or 76mm
Product Type:	Film, Roll
Tensil Strength:	Different with Thickness
Hardness:	Soft
Smell:	No.
Sample Size:	A4 or Others
Application:	Motor
Type:	Insulation Film
Chemistry:	Hybrid Insulation
Thermal Rating:	F 155
Material:	DMD
Maximum Voltage:	>12kv
Color:	All Kinds of Color
Brand:	Toyo

Product Description

Packaging & Delivery

Packaging Details	Standard Package: Wooden Pallet, Wooden Case; We can also pack it according to the customers' requirements.
Delivery Detail	3-7 days

Specifications

Prepreg DMD
Thickness: 0.16-0.40mm
Can customize thickness
Good flatness

Product Description

Prepreg DMD
After immersion in epoxy and drying, DMD become prepreg DMD, with good electrical insulation properties, heat-resistance and mechanical strength.Tested by China Mechanical Industry Quality Inspection Center for electrical Material Product, its RTI can reach 170 centigrade. The test results from SGS Shanghai branch indicate that the products are in confirmity with EU ROHS Directive 2002 / 95 / EC and subsequent revision directives.
Can be used for winding of low-voltage coil and layers' insulation for dry transformer, B and F grade motors, groove insulation, pad insulation, ramp insulation.

Technical Data Sheet

Item	Unit	Property
Standard thickness	mm	0.16	0.18	0.20	0.25	0.30	0.40
Ration	g/m²	179	208	216	276	352	502
Tensile strength(MD)	N/10mm	121	133	133	189	225	364
Epoxy content	g/m²	50	55	60	60	60	60
Dielectric Strength	MV/M	75	62	62	66	62	70
Tensile shear strength	Mpa	9	9	10	10	11	10
Heat-resistance garde	F
Test methods	GB/T 5591.2-2002 (Q/D J3-210-2009)
Storing periods	25 centigrade, 6 months
Standard	Q/D J3-210-2009

Reference

1. condition: 150 centigrade,3h
2. cracks should be avoided when slitting, scraches and greasy dirt should also be avoided.

Packaging & Shipping

Prepreg DMD:
Normally the out - packaging for the goods is wooden pallet or wooden case, we can deliver it by air or by ship.
Airport: Beijing, Tianjin, Qingdao, Nanjing, Shanghai, Guangzhou, Shenzhen
Sea Port: Tianjin,Qingdao, Shanghai, Ningbo, Guangzhou
Packing Type Photo is as the following:

We are major in insulation material of various classes, from B to F, and from F to H, TOYO'S products are widely used in Motors, Generators, Welders, Electrical Heaters, and etc. And provide assurances for their long time, stability work.

The test results of from SGS Shanghai branch indicate that the TOYO's products are in conformity with EU RoHS Directive 2002/95/EC and subsequent revision directives. And our product conforms to REACH regulation's requirements (the newest version) of European Union after tested, and also passed UL certification of American and Canada.

" TOYO" Team was composed of many senior electrical engineers, and insist on response to every client's enquiry 100%. Maintaining good cooperative relationship with main manufacturers in domestic for long term, and this provides " TOYO" With stable product quality; Reasonable prices; Timely supply.

We started to do the foreign trade since 2014, because of the good faith, now we have had so many customer from home and abroad. We are also planning to making the investment to enhance the relationship with our key suppliers, and meet our customer's requirements.

Welcome you to contact us and discuss business at any time.
