DMD F Class Insulation Material

Name: DMD F Class Insulation Material
Brand: all-electronics-online.com
SKU: 673404402
Availability: InStock
Rating: 4.9 (147 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	200KG
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	6641
Markets:	North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Application:	Electrical Winding Insulation
Chemistry:	Organic Insulation
Type:	Solid
Thermal Rating:	F 155
Material:	Fiber Non-Wovern Fabric and Polyester Film

Product Description

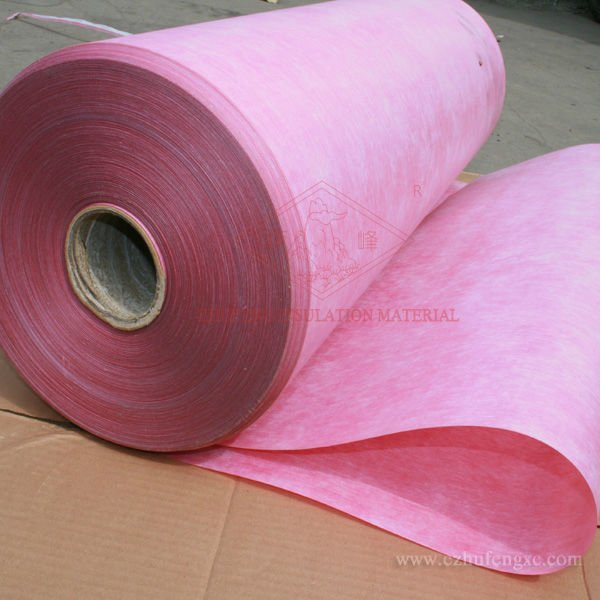

6641 F-DMD insulation paper-polyester film
DMD CLASS-F polyester film flexible composite is made from high melting point polyester film and hot-rolling polyester fiber non-woven fabric. The polyester film and polyester non-woven fabric are bondedd by F-class adhesive.
Temp. Class F( 155 degree class)
Excellent dielectric property, high mechanical strength and immersing the function
As slot, interphase and liner insulations for F-grade motors and electric apparatus.
Availibity form: Roll, sheet, strip
Thickness: 0.17mm 0.20mm 0.25mm 0.30mm 0.35mm
Width: 1000mm Color: Pink, Blue and White
Form: In rolls.
Pacage: Carton and Pallet Storage life---1 year

Xuchang Zhufeng Insulation Material Co. Ltd, Welcome inquiry our products.

We are manufacture in electrical insulation material which has established Since 1998, we are one of the largest insulation company In China, have exported Europe, Middle East, Aisa and South America. ISO9001, RoHS certification. High quality, excellent service!

Our main produts as below:

1. Felexible composite insulation paper: 6520 fish paper with film, DMD insulation paper, F- DMD insulation paper, NMN nomex insulation paper.

2. Polyester film products: Transparent film and Milky white polyesterfilm

3. Transformer insulation paper: Presspaper, Pressboard(Chipboard), Fish paper, Cable paper, Creap paper,

4. Insulation binding tape: Fiberglass tape, Pure cotton tape

5. Insulation Sleeve: 2715 PVC fiberglass sleeve, 2751 silicon rubber sleeve, 2753

Silicone Varnish sleeve,

6. Insulation Laminated sheet: 3240 Epoxy glass cloth laminated sheet, 3025 phenoli cotton cloth laminated sheet, 3021 phenolic paper laminated sheet.

7. Imprenating fiber cvarnish cloth/tape: 2432, 2450, 2310, 2210
