Yueqing Langir Electric Co., Ltd. >> DOT Ill. Latching Anti Vandal Push Button Switch Made of Stainless Steel (L19-F-N-Z1-S-D)

DOT Ill. Latching Anti Vandal Push Button Switch Made of Stainless Steel (L19-F-N-Z1-S-D)

DOT Ill. Latching Anti Vandal Push Button Switch Made of Stainless Steel (L19-F-N-Z1-S-D)
Price: US $ 8.04/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 20/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: L19-F-N-Z1-S-D
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Is Customized: Yes
Function: Latching
Material: Stainless Steel
Max.Voltage: 250VAC
Max.Current: 5A
Usage: Reset Button

Product Description

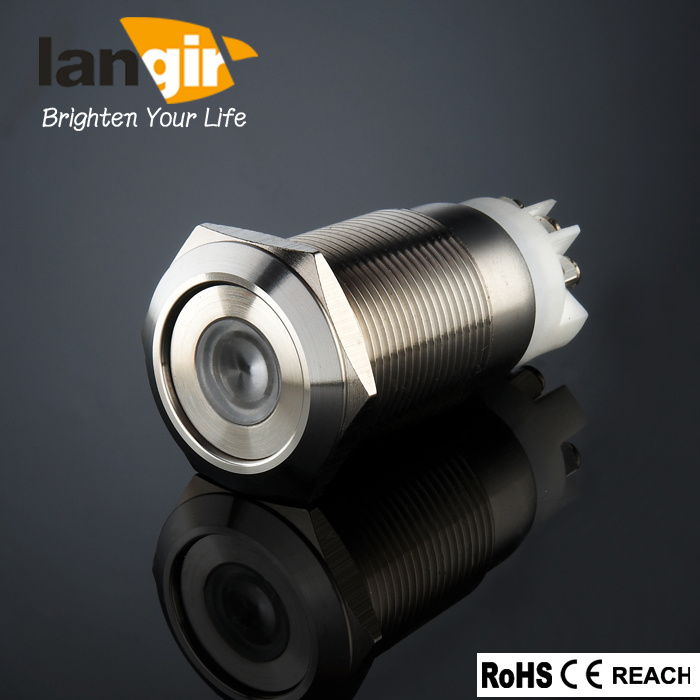

Dot ill. Latching Anti vandal Push Button Switch L19 (19mm) made of Stainless steel
is_customized                            Yes
Function                                      Latching
Material                                      Stainless steel
Max.voltage                               250VAC
Max.current                                5A
TypeL19-FL19-F/RL19A-F/D
Illuminated TypeNon-IlluminatedRingDot
TerminalPin(2.8*0.5)



Max.Switch RatingIth:5A Ui:250VAC



Contact Ressistance≤50mΩ



Insulation Resistance≥1000mΩ



Dieletric Strengh2000VAC



Operation Temp_20C-+55C



Mechanical Life1000000 Cycles



Electric Life50000 Cycles



Contact MaterialSliver Alloy



Torque5-14Nm



Operation Pressure≈4N



ProtectionIP65/IK09/IP67 Cam be Custormized



Material





ActuatorStainless Steel/*Anodized Aluminum



BodyStainless Steel/*Anodized Aluminum



TypeLED



BasePBT



Voltage6V/12V/24V/36V/110V/230V



LifeApprox:40000 hours
