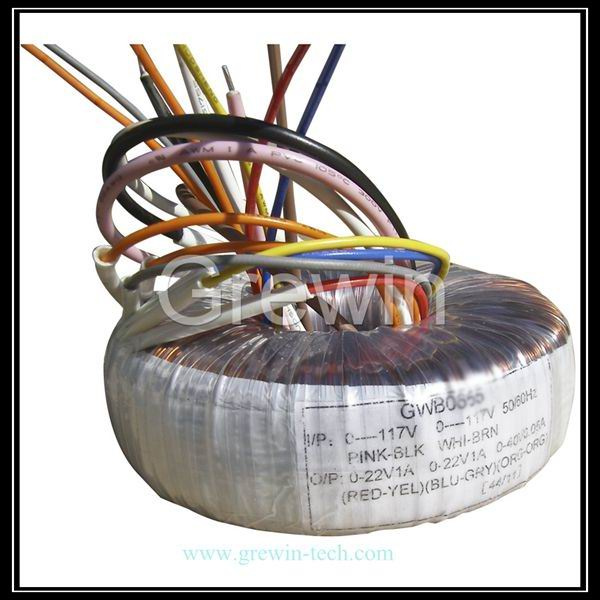

Double 110V Toroidal Transformer for UPS

Name: Double 110V Toroidal Transformer for UPS
Brand: all-electronics-online.com
SKU: 682907702
Availability: InStock
Rating: 5 (29 reviews)

Price:	US $ 5.90-46.40/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GWB0659
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Design PCB,Wire Leads:	with Excellent Performance
UL,CE ,RoHS:	Aluminum Enamel Wire Transformer
Different Name:	Toroidal/Ring/Annular/Wreathe Electronic Transform
Power Toroidal Transformer:	for Electronic Control, UPS
Aluminum Wire:	5va
Aluminum Enamel Wire Transformer:	5000va
Minature Powr 1:	10va
Efficiency: 75-98%:	Capacity: 40va-120va
D320mm,H130mm,Weight 34kg:	5000va Transformer
Wire Materials: 1. Copper, Aluminum, Alu:	Wires Raw Materials: Aluminum Instead of Copper Co
Application:	Solar Power
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer

Product Description

GREWIN'S Dimension:

External diameter: 55mm-300mm, height: 13mm-130mm, Efficiency: 75-98%
We can design the appropriate products according to customers' requirments such as installation dimension, input and output voltage, power...etc. )

Different size for different power:

1.27.5VA Diameter=32mm, Height>=83mm;
Net Weight: 0.57KG;
2.60VA Diameter=88mm, Height<=42mm;
Net Weight: 0.815KG;
3.180VA, Diameter(Max)108mm, H<=60mm;
Weight: 1.9KGS
3.3200VA 20 ampere 50Hz in 220V; Out 80-40 - 0 - 40-80; Diameter=225mm, Height<=140mm; Net Weight: 15.5KG

Installation:
Horizontal (non-conventional-type base plate), sunk, side type, and bridge.

Certificate:
The certificate of our transformer has CE CQC RoHs UL

20VA	Φ 60	H25	>82	10mA	1.20V 0.45kgs
30VA	Φ 65	H35	>84	10mA	1.20 0.50kgs
50VA	Φ 70	H40	>88	20mA	1.15 1.30kgs
100VA	Φ 85	H60	>90	30mA	1.15 1.50kgs
120VA	Φ 90	H75	>93	40mA	1.10 2.00kgs
200VA	Φ 110	H80	>93	100mA	1.10 2.80kgs
300VA	Φ 120	H80	>94	150mA	1.08 3.50kgs
500VA	Φ 130	H80	>94	150mA	1.08 5.00kgs
800VA	Φ 140	H85	>94	200mA	1.08 6.50kgs
1000VA	Φ 140	H85	>95	300mA	1.05 8.50kgs
1500VA	Φ 160	H90	>95	400mA	1.05 12.0kgs
2000VA	Φ 180	H90	>95	400mA	1.05 15.0kgs
4000VA	Φ 220	H95	>95	500mA	1.05 20.0kgs
6000VA	Φ 250	H95	>95	500mA	1.05 25.0kgs

GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.

Our company have many advantages which can be your honesty and reliable supplier:

WHY CHOOSE US?

A. Business philosophy "Quality and Honesty First“

B. Over 40 years experience of transformer designing and producing.

C. Transformer 100% test before the shipment;

D. UL, CE, ISO9001: 2008

E. We offer custom-made transformers, OEM and ODM are welcome

F. We expect at consistently competitive prices

G. Transformer quality lifetime: 10 Years.

H. Professional experiences of the sales and engineers: 5 -10 Years

Grewin Mission: Growing together side by side, Mutual success hand in hand.

We sincerely invite you to join us to create a bright future.
