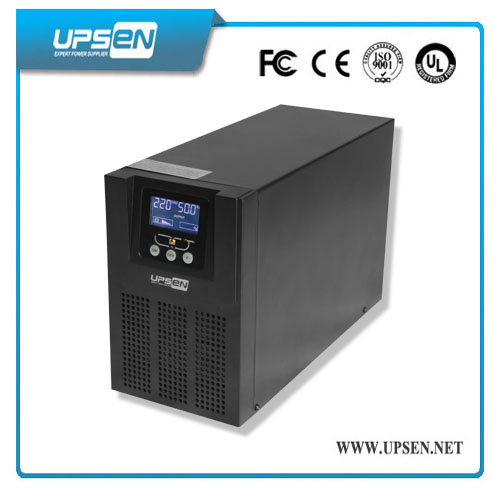

Double Conversion Hf Single Phase Online UPS with CE Certificates

Double Conversion Hf Single Phase Online UPS with CE Certificates
Price: US $ 1-200/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: Queen Star Series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Device: IGBT Module
Power Factor: 0.9
Testing: Self-Testing When UPS Startup
Display: Touch Screen LCD+LED
Complete Communication: RS232 RS485 Dry Contact Snmp As40
Function: Epo
Phase: Single Phase
Type: On-line
Protection: Overvoltage
Brand: Upsen

Product Description

Double Conversion HF single phase Online UPS with CE certificates
Model: High Frequency Online UPS Queen Star Series 1-3Kva (1ph in/1ph out)

Key Features:
1:SNMP Slot Option:Allows for remote monitoring and control via.
2:Digital control technology provides high performance and system reliability.
3:High reliability, stable quality, good compatibility, strong anti-jamming capability
4:Advanced MCU microprocessor control technology and DSP technology, ensure long life reliability
5:0.8 Output Power Factor, Digital LCD Screen, Zero transfer time
6:DSP & IGBT Technology,  compact design
7:Active input power factor correction (PFC)
8:Cold-boot function allows the device to be started in any circumstance
9:Advanced IGBT-based the latest rectifier and inverter technology, high input power factor and low output harmonic.
10:Active Load Management, cold start function
11:Sufficient Expansion Slots for USB,AS400,CMC monitoring,SNMP,RS485 and EMD environmen monitoring
12:Automatic detection function, under-voltage and bypass and emergency shutdown etc. protection function
13:Generator Supportable
14:Extra-wide input voltage and frequency range adapts adverse gird environment, compatible with diesel generator.

Applications
Solar system and wind system,Cable television,Communication equipment,LED light and Emergency power system etc.

Technical Specification
MODELQ1KQ1KLQ2KQ2KLQ3KQ3KL
Rated capacity 1KVA/800W2KVA/1600W3KVA/2400W
InputVoltage115 - 300Vac
  Frequency40-60Hz / 50-70Hz
Power factor0.99
OutputVoltage 220/230Vac(1±2%)
  Frequency
Synchronize with utility power(utility mode);
50 / 60Hz ± 0.2Hz(battery mode)

On-load factor
0.8
Overload rating  125% overload,1min
BatteryType Valve-control lead acid maintenance-free battery
Back up time
> 11min
(half load)

External

> 11min
(half load)

External

> 11min
(half load)

External
Rated voltage 36V72V96V
Transfer time0
Operating environmentHumidity: 20%-90%, Temperature:0oC-40oC
Size (WxDxH)mm350 x 144 x 229424 x 190 x 328424 x 190 x 328
Net Weight(kg)11.55.722.21026.310



Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.

We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.

We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.

We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
