| Prod Model: |
EH5000 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Must or OEM |
Product Description
Parallel Units with a Single Output of up to 80kVA
True N+1 Redundancy
DSP Double-Conversion On-line Sinewave Design
Input Power Factor Correction
Hot-Swappable User Replaceable Batteries
LCD Display with Advanced Monitoring for Easy UPS Management
Programmable 50/60Hz Frequency Conversion
Optional Remote Emergency Power Off (REPO)
Wide Input Voltage Window
Precision Output Voltage Regulation
Superior Brownout, Surge & Transient Protection
Optional Extended Battery Banks & Chargers
RS-232C, USB & Optional SNMP/HTTP Agent
WINPOWER® UPS Monitoring & Management Software
Parallel Units up to 80kVA

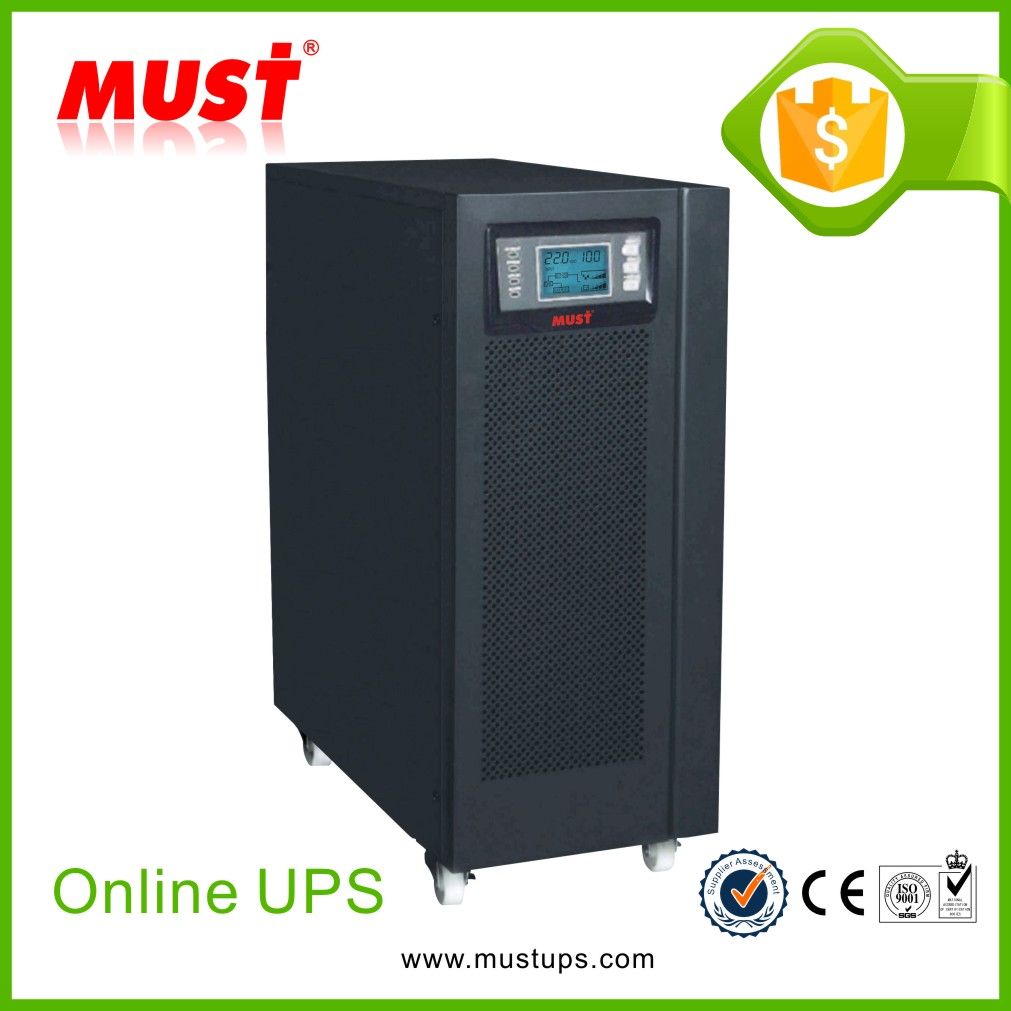

Businesses today rely on absolute system availability and scalability. The Must® Power EH Parallelable, N+1 Redundant On-line Uninterruptible Power Supply (UPS) provides the ideal solution. The EH Series UPS can easily be configured using individual 10, or 20kVA models, providing up to 60kVA with N+1 redundancy. Alternate parallel configurations of 6 to 80kVA are achievable if N+1 redundancy is not required.
Stand-Alone Units Lower Costs
In contrast to most modular scalable Uninterruptible Power Supplies, the EH5000 Series are stand-alone units that may be connected in parallel. This economical approach eliminates the added expense of buying cabinets to house control, power and battery modules.
True Regenerative On-line Design
The EH Series True Regenerative On-Line UPS provides the highest level of protection against the widest spectrum of power problems. The incoming AC utility source is converted to a regulated DC voltage. From this DC voltage, a new AC voltage is generated, providing clean, tightly regulated power to your equipment.
| Model | EH5000-3H10KS | EH5000-3H15KS | EH5000-3H20KS |
| Capacity | 10kVA/7KW | 15KVA/10.5KW | 20KVA/14KW |
| INPUT |
| Phase | 3 phase with ground |
| Frequency Range | 46~54HZ |
| Power Factor | >=0.95 |
| Acceptable Voltage | 60~138 Vac |
| Voltage Range | Line Low Transfer | 304VAC +/- 3VAC |
| Line Low Comeback | 322VAC +/- 3VAC |
| Line High Transfer | 478VAC +/- 3VAC |
| Line High Comeback | 361VAC +/- 3VAC |
| OUTPUT |
| Phase | Single |
| Voltage | 220VAC/230VAC/240VAC |
| Voltage Regulation | ± 1% |
| Frequency ( Synchronized Range) | 46~54Hz |
| Frequency( Battery Mode) | 50 ± 0.05 Hz |
| Current Crest Ratio | 3:1 |
| Harmonic Distortion | <= 2% THD ( Linear Load) /<= 6% THD ( Non-Linear Load) |
| Output Waveform | Pure Sinewave |
| EFFICIENCY |
| To AC Mode | 88% |
| To Battery Mode |
| BATTERY |
| Battery Type | Lead acid battery |
| Numbers of Batteries | 20 PCS |
| Backup Time (Full Load) | Depending on the capacity of external batteries. |
| Recharge Time | 10 hours for 80% capacity |
| DC Voltage | 240V |
| Charging Current (Max.) | 4.2A |
| Charging Voltage | 274Vdc ± 1%V |
| TRANSFER TIME |
| AC to DC | Zero |
| Inverter to Bypass | Zero |
| LED-INDICATOR |
| Status | Load Level / Battery Level / Battery Mode / AC Mode / Bypass Mode / Fault |
| AUDIBLE ALARM |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously Sounding |
| DIMENSION |
| UPS Case D x W x H (mm) | 570x260x717 |
| WEIGHT |
| Net Weight(kgs) | 38.5 | 55 | 55 |
| ENVIRONMENT |
| Operating Temperature | 0~40 ° C , 20~90% relative humidity (non-condensing) |
| Noise Level | <60dB @ 1 Meter |
| INTERFACE |
| Smart RS-232 | Windows 98/NT/2000/XP/2003/ME, Linux, Sun Solaris, IBM Aix, Compaq True64, SGI IRIX, FreeBSD, HP-UX, and MAC |
|
| SNMP (option) | Power management from SNMP manager and web browser |
