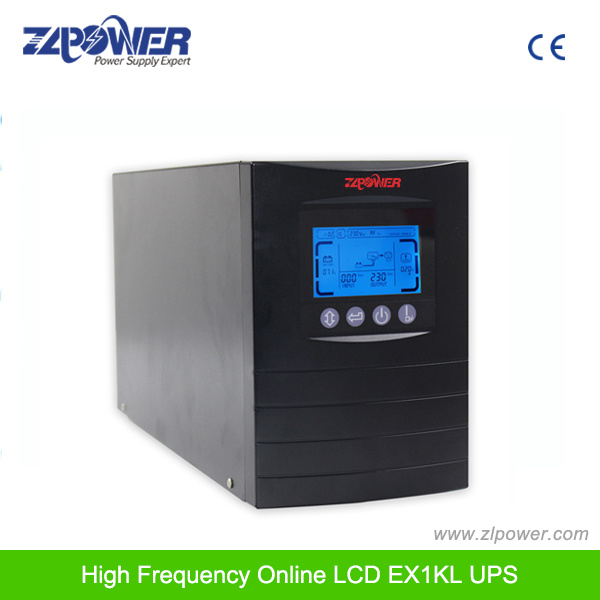

Double Conversion on Line UPS 1-3kVA

Name: Double Conversion on Line UPS 1-3kVA
Brand: all-electronics-online.com
SKU: 742837445
Availability: InStock
Rating: 4.6 (142 reviews)

Price:	US $ 125-300/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	EX3K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	1kVA~3kVA
Nominal Voltage:	110V,120V/220V,230V,240V
Frequency:	46~54Hz/56~64Hz
Input Phase:	Single Phase with Ground
Input Power Factor:	0.97
Wave Form:	Pure Sine Wave
Output Power Factor:	0.8
AC Mode Efficiency:	85%
Battery Mode Efficiency:	83%
Current Crest Ratio:	3:1
Phase:	Single Phase
Type:	On-line
Protection:	Overvoltage
Brand:	Zlpower

Product Description

Double conversion on line UPS 1-3KVA

DSP control
0.8 output power factor
Wide input range
High efficiency mode(ECO)
Frequency converter mode
Input THDI, 5%
Output voltage regulation<2%
Output THDv<3%
Auto sefl-testing system
Exterdable Run time
Fan speed control
Power management software
Multiple communication ports
Optional SNMP & relay cards
Compact design

APPLICATION:
Servers, Data-Center, Critical network devices, Sensitive Electronic equipment, Telecom.

UPS Model		EX1K	EX1KL	EX2K	EX2KL	EX3K	EX3KL
Capacity		1000VA/800W		2000VA/1600W		3000VA/2400W
Input	Voltage	(115~300) VAC
	Frequency	46~54Hz/56~64Hz (Adjustable via LCD panel)
Output	Voltage	220/230/240 (1±1%)VAC (Adjustable via LCD panel)
	Frequency	50/60Hz (Adjustable via LCD panel) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz (1±0.2%) 60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz (1±0.2%)
Output Wave Form		Sine Wave
UPS Back-up Time	Full Load	≥5′	Depends on the capacity of the external battery bank	≥9′	Depends on the capacity of the external battery bank	≥5′	Depends on the capacity of the external battery bank
	Half Load	≥14′		≥21′		≥15′
Battery Nominal DC Voltage		36VDC		96VDC
Transfer Time		0ms
Overload Capacity		110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms
Communications		RS-232+Intelligent Slot
Environment	Temperature	0C~40C
	Humidity	15%~90%
Dimensions (WDH) mm		145400220		192460340
Net Weight (Kg)		14	7	34	13.5	34.5	14

About ZLPOWER

Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.

As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.

Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.

In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.

Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.

ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
