Double Conversion Online UPS with 6 IEC Outlets and Battery

Name: Double Conversion Online UPS with 6 IEC Outlets and Battery
Brand: all-electronics-online.com
SKU: 726044335
Availability: InStock
Rating: 4.3 (125 reviews)

Price:	US $ 50-1000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Queen Star Series 1-3Kva
Markets:	North America,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black & White
Output Power Factor:	0.8
Display:	Digital LCD Display
Phase:	Single Phase
Type:	On-line
Protection:	Over Load/Current/Voltage, Short Circuit etc

Product Description

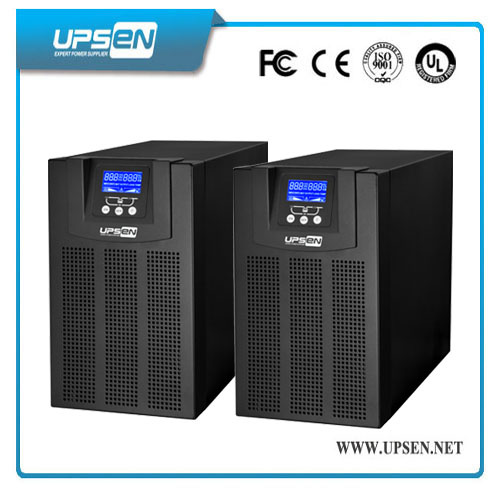

Double Conversion Online UPS with 6 IEC Outlets and internal battery
1: UPS with double conversion technology and ture online
2: UPS with 0.8 output power factor, 1Kva=800W, pure sine wave output
3 Digital LCD Screen for UPS Display
4: UPS with input pfc correction and MCU Tech
5: UPS with single phase 110/115/120 or 220/230/240Vac Input/Output

UPS Application
Queen Star Series UPS 1-20KVA is specially designed for servers, data-center critical network devices,
Sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.

UPS Key Features
1: Large Blue LCD digital display for UPS status and operation
2: Pure Sine Wave, Double Conversion Online
3: Wide input voltage range, Zero transfer time
4: Advanced MCU microprocessor control technology
5: Voltage regulator circuit
6: Comprehensive Electrical isolation and bypass protection
7: Input PF correction, reduce the harm of harmonic wave to the power grid, convenient to connect with mini generator.
8: Input N/L Inspection function and date line protection
9: DC start when power off, convenient and reliable; Restart automatically when Electricity is restored.
10: Humanization bypass output, can be adjustable.
11: Smart RS232 communication with monitoring software
12: Protection against over voltage, over load, over current, over charge and so on.

MODEL		Q1K	Q1KL	Q2K	Q2KL	Q3K	Q3KL
Rated capacity		1KVA/800W		2KVA/1600W		3KVA/2400W
Input	Voltage	115 - 300Vac
	Frequency	40-60Hz / 50-70Hz
	Power factor	0.99
Output	Voltage	220/230Vac(1±2%)
	Frequency	Synchronize with utility power(utility mode); 50 / 60Hz ± 0.2Hz(battery mode)
	On-load factor	0.8
	Overload rating	125% overload,1min
Battery	Type	Valve-control lead acid maintenance-free battery
	Back up time	> 11min (half load)	External	>11min (half load)	External	>11min (half load)	External
	Rated voltage	36V		72V		96V
Transfer time		0
Operating environment		Humidity: 20%-90%, Temperature:0 o C-40 o C
Size (WxDxH)mm		350 x 144 x 229		424 x 190 x 328		424 x 190 x 328
Net Weight(kg)		11.5	5.7	22.2	10	26.3	10
*Specification is subject to change without further notice
