| Prod Model: |
Legend Strar Series LS33 10K-100K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Acceptable Voltage Range: |
305VAC ~ 460VAC |
| Nominal Voltage: |
3 X 380VAC/400VAC (3pH + N) |
| Admissible Crest Factor: |
3:1 |
| Transfer Time: |
Zero |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
Product Description
Product Description

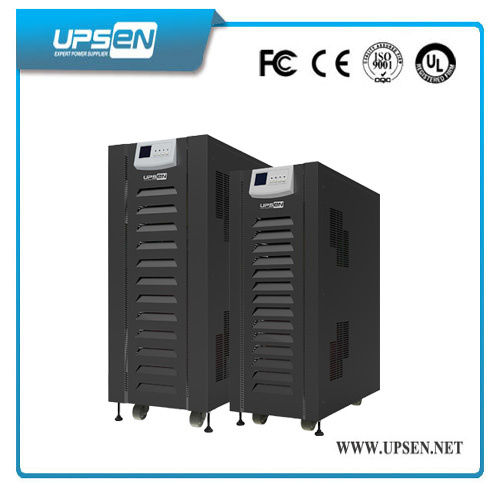

Double Conversion Online UPS with ECO mode and Short Circuit Protection
Key Features
1: Humanized display interface
2: Intelligent battery management to prolong battery lifecycle
3: Redundant fan design and independent ventilation enhance durable operation under harsh environment
4: DSP technology guarantees high reliability
5: True online double conversion, equipped with IGBT and output transformer
6: Charging/rectifier/inverter fully digital control technology
7: Intelligent control of multiple CPU
8: Accept dual-mains input
9: Parallel operation with up to 4 units (option)
10: Variety of communication options available
11: Good after-sale services
Technical Specification
| LS33 Series 10K - 80Kva |
| MODEL | 10K | 20K | 30K | 40K | 60K | 80K |
| CAPACITY | 10KVA/8KW | 20KVA/16KW | 30KVA/24KW | 40KVA/32KW | 60KVA/48KW | 80KVA/64KW |
| INPUT |
| Nominal Voltage | 3 x 380VAC/400VAC (3Ph + N) |
| Acceptable Voltage Range | 305VAC ~ 460VAC |
| Frequency | 46-54Hz or 56-64Hz |
| INVERTER |
| Nominal Voltage | 3 x 380VAC/400VAC (3Ph + N) |
| Precision | Stationary: ±1%
Transitory: ±5% (load variations 100-0-100%) |
|
| Frequency | 50/60 Hz synchronised ±1 %
With mains absent ±0.1 Hz |
| Max. Synchronisation Speed | ±1 Hz/s |
| Waveform | Pure Sinewave |
| Total Harmonic Distortion (THDv) | <2% (Linear Load)
<5% (Non-linear Load) |
| Phase Displacement | 120º ±1% (balanced load)
120º ±2% (imbalances 50% of the load) |
| Dynamic Recovery Time | 1 cycle at 98 % of the static value |
| Admissible Overload | 110% for 10min; 150% for 60sec ; >160% for 200ms |
| Admissible Crest Factor | 3:1 |
| Admissible Power Factor | 0.6~1 (inductive or capacitive) |
| Imbalance Output Voltage @ 100% Unbalanced Load | <1% |
| Current Limit | High overload, short-circuit: RMS Voltage Limit
High Crest-Factor current: Peak Voltage Limit |
| STATIC BYPASS |
| Type | Solid state |
| Voltage | 3 x 380VAC/400VAC (3Ph + N) |
| Frequency | 50/60 Hz |
| Activation Criterion | Microprocessor control |
| Transfer Time | Zero |
| Admissible Overload | 150% for 1 hour; 180% for 30sec; >200% for 200ms |
| Transfer to Bypass | Immediate, for overloads above 160% |
| Retransfer | Automatic after alarm clear |
| MAINTENANCE BYPASS |
| Type | Without interruption |
| Voltage | 3 x 400V (3Ph + N) |
| Frequency | 50/60 Hz |
| Overall Efficiency | Line Mode | 90% | 91% | 92% | 93% |
| Battery Mode | 90% | 91% | 93% | 93% |
| BATTERY & CHARGER |
| Battery Type and Numbers | 12VDC x 16 pcs | 12VDC x 32 pcs (29~32 pcs adjustable) |
| Nominal Battery Voltage | 192 VDC | 384 VDC (Based on 32pcs batteries) |
| Charging Method | CC/CV |
| Precision | ±1% |
| Charging Current | Max.: 40 A |
| Charging Voltage | 216 VDC | 432 VDC (Based on 32pcs batteries) |
| PHYSICAL |
| Dimensions, D x W x H(mm) | 656 x 405 x 817 | 656 x 405 x 941 | 840 x 432 x 1140 | 975 x 554 x 1286 |
| Net Weight (Kgs) | 180 | 205 | 295 | 330 | 451 | 519 |
| * Product specifications are subject to change without further notice | | | | | | | | |
