Product Description

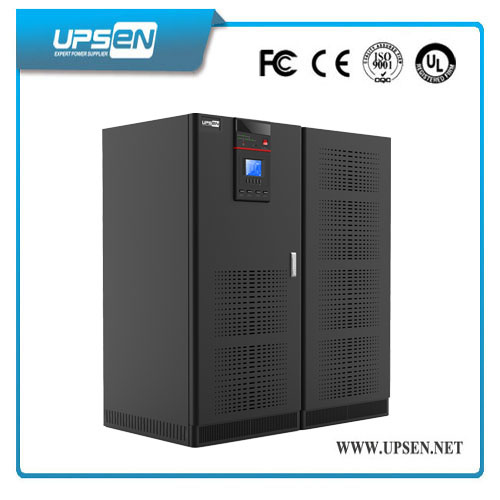

Double Conversion Three Phase 100K-400KVA Online UPS for XPS machine
Low Frequency Strar Series LF33 100K-400KVA(3Ph in/3Ph out)
Key Features
1:Automatically convert constant-current constant-voltage charging technology
2:Highest reliability and maximum performance for power sharing and redundancy
3:Designed for industry to make sure the UPS works well under the bad circumstance
4:Built in control board design, have on need of any adjustment, easy to maintenance
5:Intelligent battery management maintains battery automatically to prolong the battery life
6:Suitable for bad working condition,big input voltage range,frequency range from 40HZ-70HZ
7:Optional isolation transformer offers full isolation and complete common mode noise rejection
8:Can make sure the reliability and safety of the load and system due to the full protective function
9:Super ability for overload and short circuit, ensure the system stability and safety under the limit state of system
10:Internal manual maintainance bypass further improve the reliability of continuous operation of the load Network management humanity
Application
Mainly used in large IDC rooms, Electronic Test Equipment, communication network management center,electric equipment,Emergency lighting equipment,Emergency Lighting Systems,Fire alarm and security systems,Various telemeter equipment etc.
Technical Specification
| Low Frequency Strar Series LF33 100K-400Kva |
| Model | LF33 Series |
| Rectifier Type | 6p | 12p | 6p | 12p | 6p | 12p | 6p | 12p | 6p | 12p |
| Rated Nominal | 120KVA/108KW | 160KVA/144KVA | 200KVA/180KW | 300KVA/270KW | 400KVA/360KW |
| Rated input voltage | 380/400/415VAC 3-phase 4-wire |
| Rated frequency | 50/60HZ |
| Input parameters |
| Input voltage range | ±25% |
| Input frequency range | 45Hz~65Hz |
| Input soft start function | 0-100% 5-300settable |
| Input power factor | more than 0.98(If harmonic filter is added) |
| Input harmonic current (THDi) | less than 4.5%(If harmonic filter is added) |
| Bypass |
| Bypass voltage range | -20%~+15% |
| Bypass frequency range | 50/60HZ±10% |
| Output parameters |
| Inverter output voltage | 380/400/415VAC 3-phase 4-wire |
| Voltage stability | ±1%(Steady status),±3%(Transient status) |
| Frequency | 50/60Hz |
| Mains power synchronization window | ±5% |
| Actually measured frequency accuracy (internal clock) | 50/60Hz±0.01Hz |
| Output power factor | 0.9(Output 90kW per 100kVA) |
| Transient response time | less than 5ms |
| Inverter overload capability | At 0.9 power factor, 110% for 1 hour, 125% for 10 minutes and 150% for 60s |
| Short circuit current from inverter | 3ph 1.5ln for 5seconds,1ph 2.9ln for 5seconds |
| Maximum Bypass capability | 1000% for 100ms |
| Phase shift | With 100% balanced load | less than1° |
|
| Characteristic | With 100% imbalance load | less than1° |
| Total harmonic | 100% linear load | less than1% |
|
| Distortion(THDv) | 100% non-linear load | less than3% |
| System efficiency (full load) | Up to 94% (inverter efficiency is up to 98%) |
| Rectifier output parameters |
| Charger output voltage stability | 1% |
| DC ripple voltage | ≤1% |
| Operating environment |
| Operating temperature range | 0~40°C |
| Storage temperature | -25~70°C(Without battery) |
| Relative humidity | 0~95% No condensation |
| Maximum operating height | ≤Elevation 1000m, for elevation above 1000m, derate by 1% for every increase of 100m |
| Noise (1m) | 58-68dB |
| Protection level | IP20 |
| Standard | Safety: IEC60950-1 IEC62040-1-1 UL1778 EMC IEC62040-2 CLASS C2 EN50091-2 CLASS A Design and Test IEC62040-3 |
| Physical parameters |
| Weight (kg) | 980 | 1420 | 1200 | 1750 | 1350 | 2000 | 1600 | 2200 | 2100 | 2750 |
| Width(mm) | 900 | 1250 | 1250 | 1640 | 1250 | 1640 | 1640 | 2280 | 2280 | 2280 |
| Depth (mm) | 855 | 855 | 855 | 855 | 855 | 855 | 855 | 855 | 855 | 855 |
| Height (mm) | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 |
| *Specifications change without prior notice |
