| Prod Model: |
CNG330 |
| Communication: |
RS232 + Romote Contacts |
| Remote Controls: |
Epo and Bypass |
| Remote Signaling: |
Volt Free Contacts |
| Crest Factor(Ipeak/Irms): |
3:1 |
| Dynamic Stability: |
±5% |
| Static Stability: |
±1% |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
Product Description

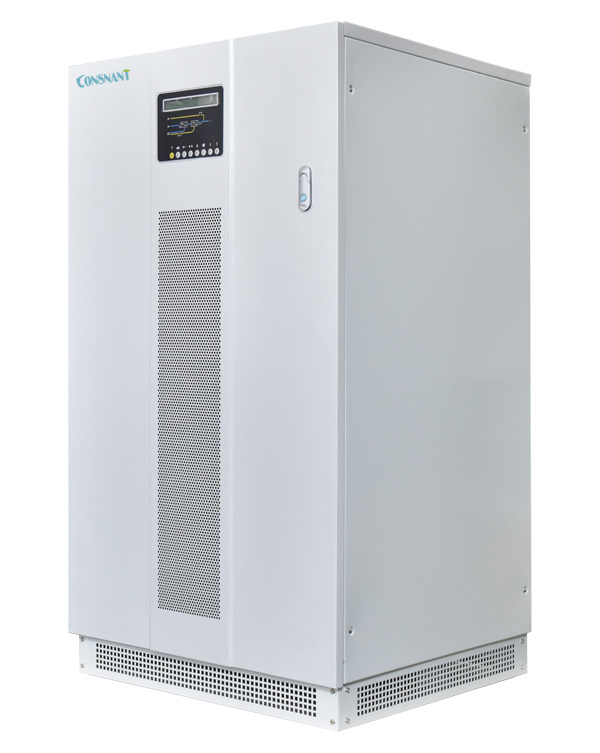

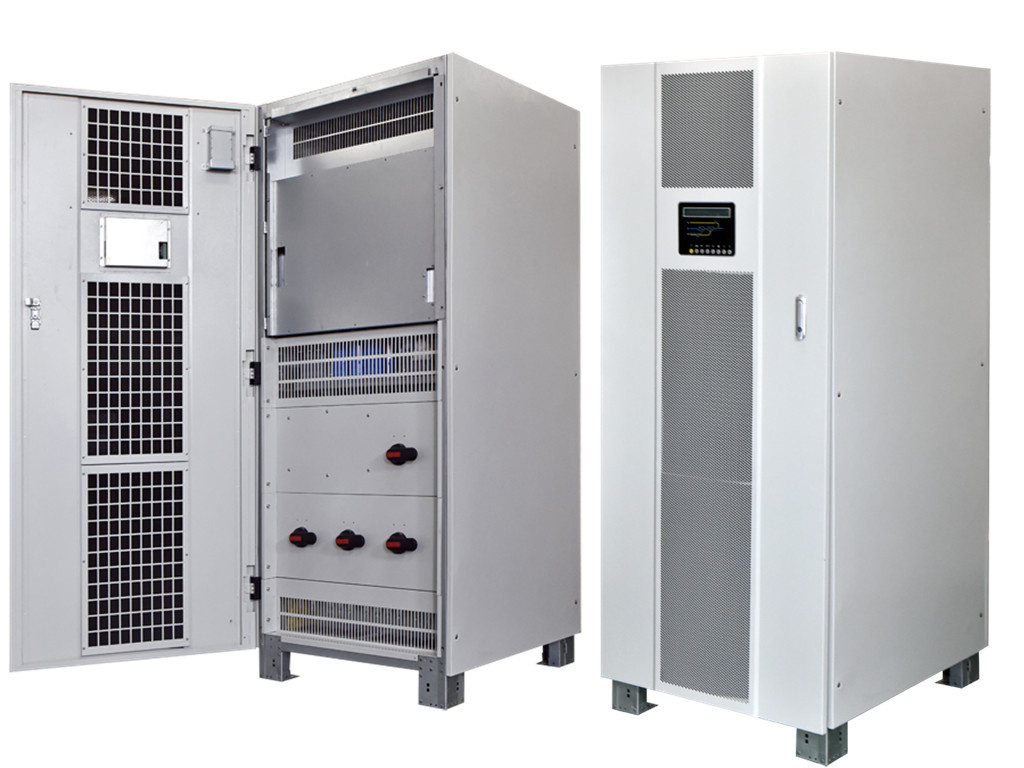

8-200KW Three Phase off Grid Solar Inverter
Product description:
Equiped with advanced IGBT module, the CNS330 is in highly reliability. DSP full dihital control tecchnology helps CNG330 realize various intelligent control functions, leading to perfect production function and higher system reliability. Date communication through RS232 or dry contact to realize monitoring operation status.
CNG330 is more attactive for its aesthetic appearance, functional integrity and friendly human-machine interface. It is possible to use on parallel 6 units maximum, having a strong loading ability.
Other Features:
- Wave Form: Sine wave, THD<3% at linear load
- Efficiency: >=95%(Efficiency Smart Mode: Up to 98%)
- Protection: Output voltage circuit, overload, over-temperature, battery low voltage output over/low voltage
- Compliance Safety: EN 62040-1-1(Directive 2006/95/EC); EMC:6200-2(Directive 2004/108/EC)
- Overload: 110% 125% 150% of the rated current for 5h/10'/1'
Specification:
| CNS330 10KVA-250KVA |
| Model (KVA) | 10 | 20 | 30 | 40 | 60 | 80 | 100 | 120 | 160 | 200 | 250 |
| Capacity (KW) | 8 | 16 | 24 | 32 | 48 | 64 | 80 | 96 | 128 | 160 | 200 |
| Input |
| Battery Voltage | 384VDC |
| Maximum Recharge Current | 0.2×C10 |
| AC Ripple Voltage | <1% |
| Inverter Output |
| Rated Power(KVA) | 10 | 20 | 30 | 40 | 60 | 80 | 100 | 120 | 160 | 200 | 250 |
Active Power (KW) | 8 | 16 | 24 | 32 | 48 | 64 | 80 | 96 | 128 | 160 | 200 |
| Phase | 3φ4W+GND |
| Voltage(Vac) | L - N: 230 L - L: 400 (200,208,220 are available for customization) |
| Regulation of the Output Voltage | 348~424 Vac phase/neutral(from control panel) |
| LCD Display | Output voltage, frequency, battery voltage, load, DC current, etc. |
| LED Display | Work status of inverter, fault indication and overloading |
| Frequency | 50/60Hz configurable |
| Frequency Stability | ±0.05% on main failure; ±2%(selectable from ±1% to±5%)with main supply present |
| Wave Form | Sine wave, THD<3% at linear load |
| Communication | RS232/RS485, dry connection communication signal |
| Operation Temperature | 0ºC to +40ºC |
| Relative Humidity | <95% non condensing |
| Colour | Light grey(RAL 7035) |
| Noise | 54dBA at 1m |
| Protection Degree | IP20 |
| Weight(KG)N.W | 205 | 215 | 243 | 293 | 234 | 456 | 517 | 740 | 755 | 1138 | 1350 |
| | 555*730*1210 | 800*730*1400 | 1115*730*1400 | 1420*850*1600 |
STANDARD: Conform to GB/IEC regulation: EMC: GB7260.2/IEC62040-2
-GB/17626.2~5/IEC61000-4-2~5 SAFETY:GB4943
Note: Product specifications are subject to change without further notice.
Shenzhen CONSNANT Technology Co., Ltd. (simple name: CONSNANT) is a professional manufacturer engaged in research, development and production of UPS (Uninterruptible Power Supply) including the Modular UPS, Outdoor & Indoor UPS, Industrial special UPS, Low Frequency & High Frequency Online UPS and Solar Power System both for home appliance and telecom equipments.
Our product has obtained the CE, ISO 9001, ISO 14001 and local Chinese TLC certificates. Having reached good sales results in China, we are now expanding our sales overseas.
We are proud of the fact that most of our company's engineering staff is well-qualified and has gained experience in relevant fields more than 10 years. In order to protect your equipment from electrical supply network instability, we offer innovative solutions that obtain higher availability systems, improve efficiency and offer flexible solutions to meet specific needs and range of application. The UPS product is widely used in data and computing centers, finance institutions, banks, within industry and medical fields.
We welcome any kind of collaboration, will enjoy any opportunities of dealing with new costumers: From distributors to ultimate consumers, undertake both wholesale and retail orders, including the sale of finished goods or parts.
If you start work with us, you will not only get high-quality product at reasonable price, but also maintain the profitable conditions for further years.

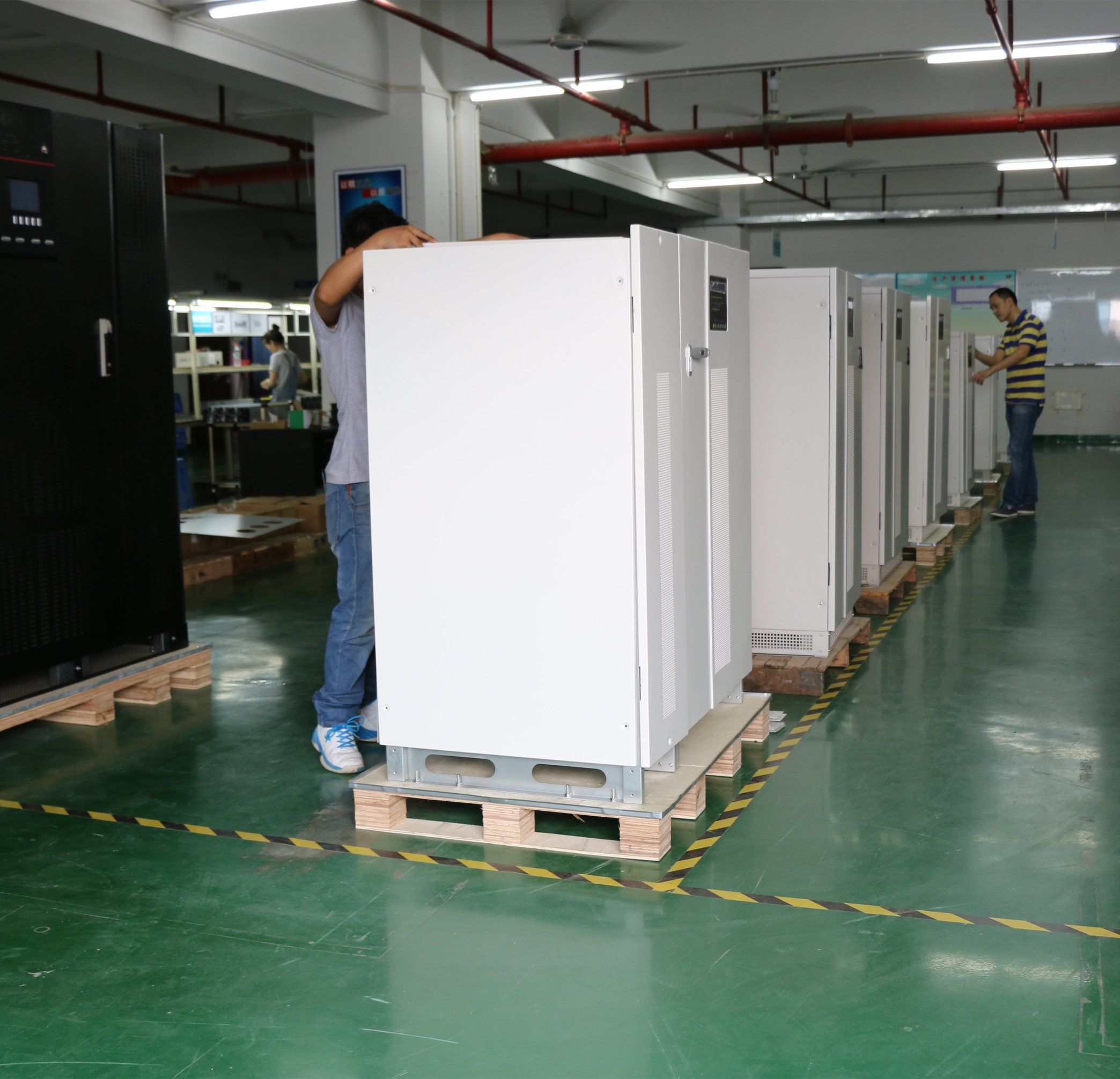

We are located in the world-famous High-Tech center - Shenzhen city, China. Our factory is close to airport. If you are lucky to visit the city, you are kindly welcomed to visit our factory.
