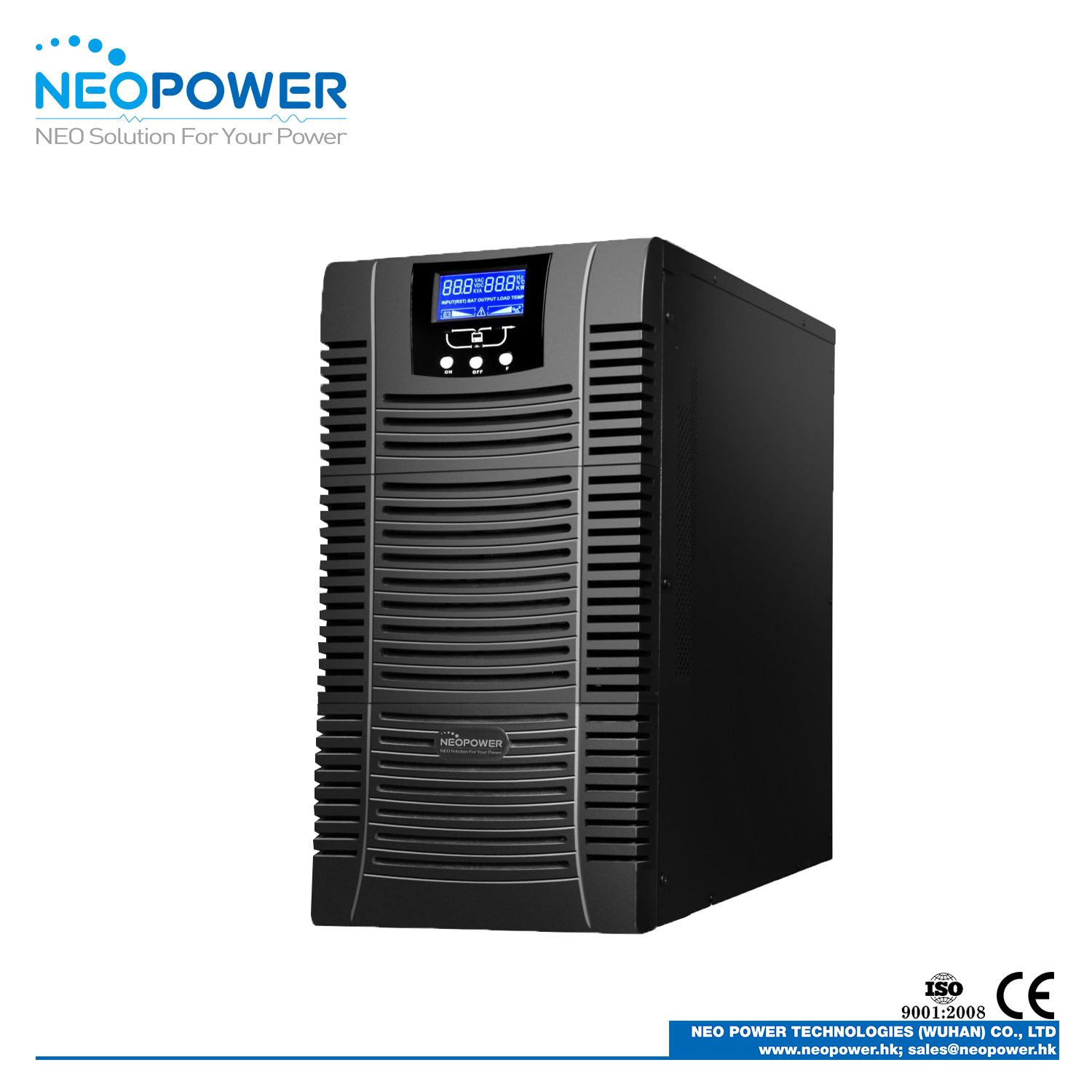

Double Conversion UPS 6kVA Single Phase for Server Room

Name: Double Conversion UPS 6kVA Single Phase for Server Room
Brand: all-electronics-online.com
SKU: 822012285
Availability: InStock
Rating: 4.6 (43 reviews)

Price:	US $ 525-595/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	NP1106/S
Capacity:	6kVA
Power Rating:	4800W
Input Voltage:	120~275V
Power Factor:	0.8/0.9
Backup Time:	15 Minutes at Full Load
Battery Voltage:	192VDC
Battery Config:	7ah
Battery Quantity:	16 PCS
Architecture:	Double Conversion
Remote Control:	RS232 + Intelligent Port
Phase:	Single Phase
Type:	On-line
Protection:	Overvoltage
Brand:	Neopower

Product Description

Model	NP1106/S
Capacity	6000 VA
Power Rating	4800/5400 Watts
Input Voltage	110 ~ 300 Vac, single phase + N + PE
Input Frequency	46 ~ 64 Hz (auto sensing)
Input Power Factor	>0.99
Output Voltage	220/230/240 Vac +/-1%, three phase + N + PE
Output Frequency	input frequency synchronized (AC Mode); 50/60 Hz +/-0.1% (Battery Mode)
Output Power Factor	0.8/0.9
Wave Form	Clean Sine Wave
Crest Factor	3 : 1
Battery Type	VRLA
Battery Voltage	192 Vdc
Battery Quantity	16 pieces
Backup Time	13' at full load; 26' at half load
Overload Ability	continuous / 30" / 1" (105% / 125% / 150%)
Transfer Time	0 ms
Display	LED (optional LCD)
Communication Port	RS 232 + intelligent port
Operation Temperature	0 ~ 50ºC
Humidity	20% ~ 90% (non-condensing)
Alarm	buzzer + LED indicators (+optional LCD display)
Standards	EMI: IEC62040-2; EMC: IEC61000-4-2~5
Dimension	260 * 560 * 717 mm
Net Weight	57 kG

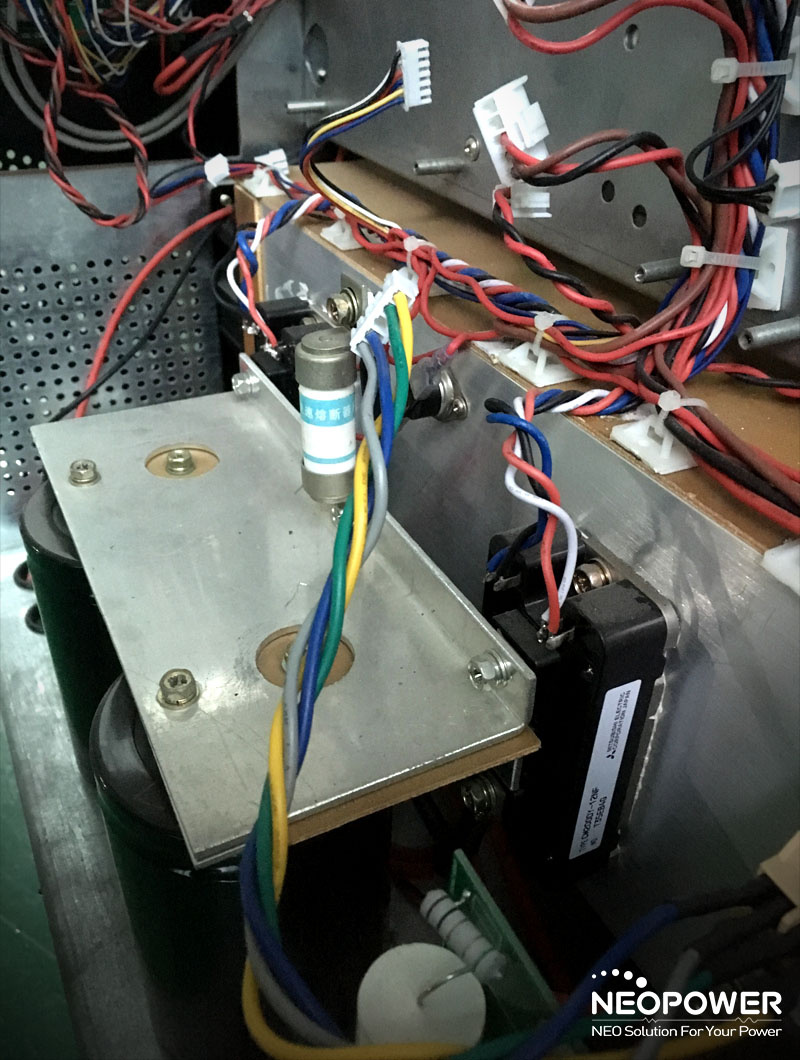

PRODUCT INTERIOR

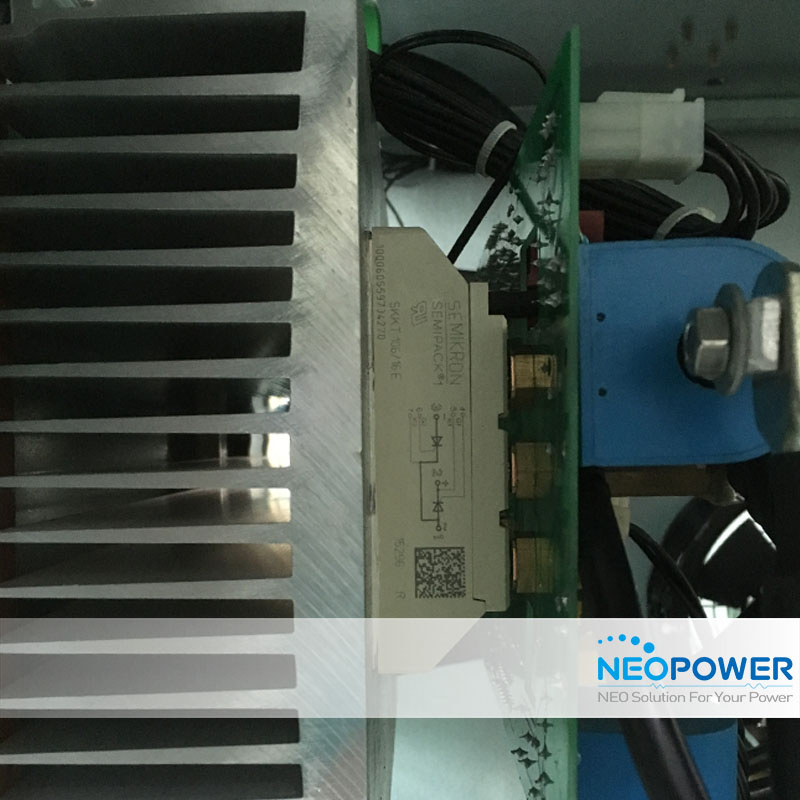

RECTIFIER PART

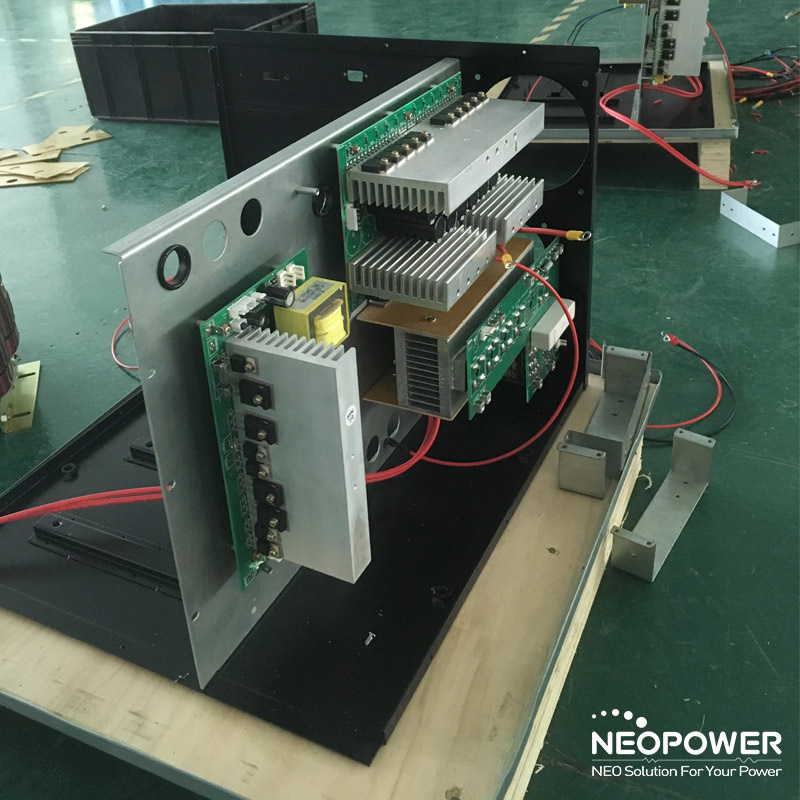

PRODUCT STRUCTURE

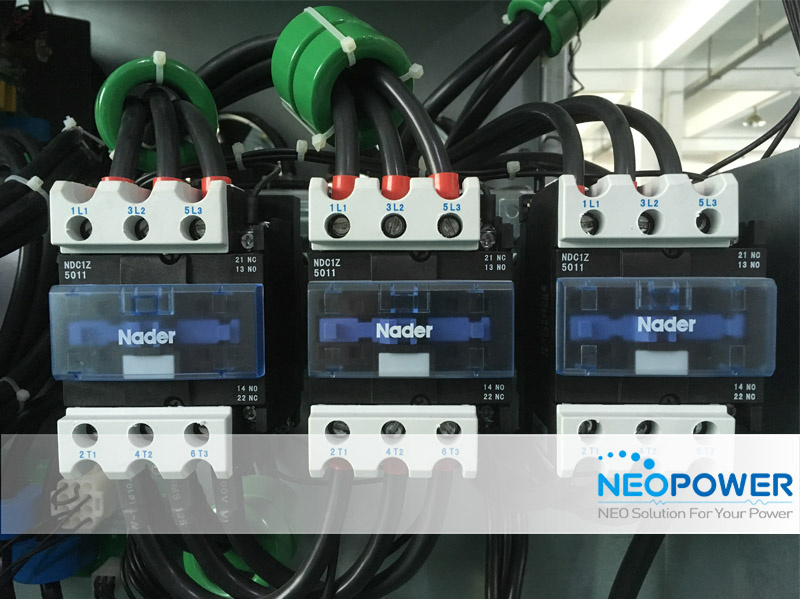

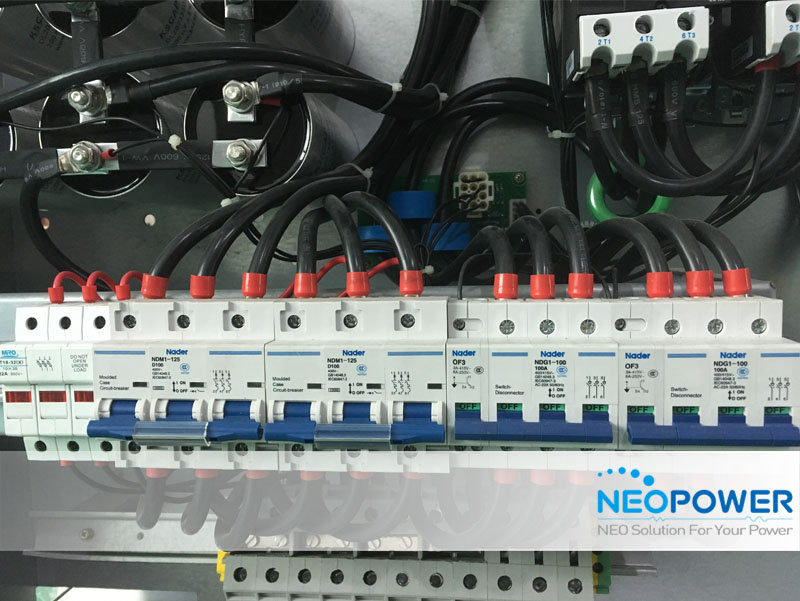

MILITARY BRAND BREAKERS & SWITCHES

FEATURES

Office Environment Special
Built-in Batteries
Electronic Circuit Topology
Highly Integrated Interior Structure
Max 8 Units Parallel Connection Available
Quiet & Light
Desk Footprint
Automatic Restart
Bypass Mode Available
Optional Bypass Isolation Transformer
Built-in Manual Maintenance Bypass Switch
LED/LCD Display Options
