| Prod Model: |
GH11 10kva |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Capacity: |
10kVA/8000W |
| Power Factor: |
0.99~1 |
| Battery: |
12V9ah*16PCS or External |
| Charging Current: |
1A or 1A/2A/4A/6A Adjustable |
| Transfer Time: |
0 Ms |
| Warranty: |
12 Months |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Over Voltage / Short Circuit |
| Application: |
Computer / Server |
| Standby Time: |
Long-Acting / Standard |
Product Description

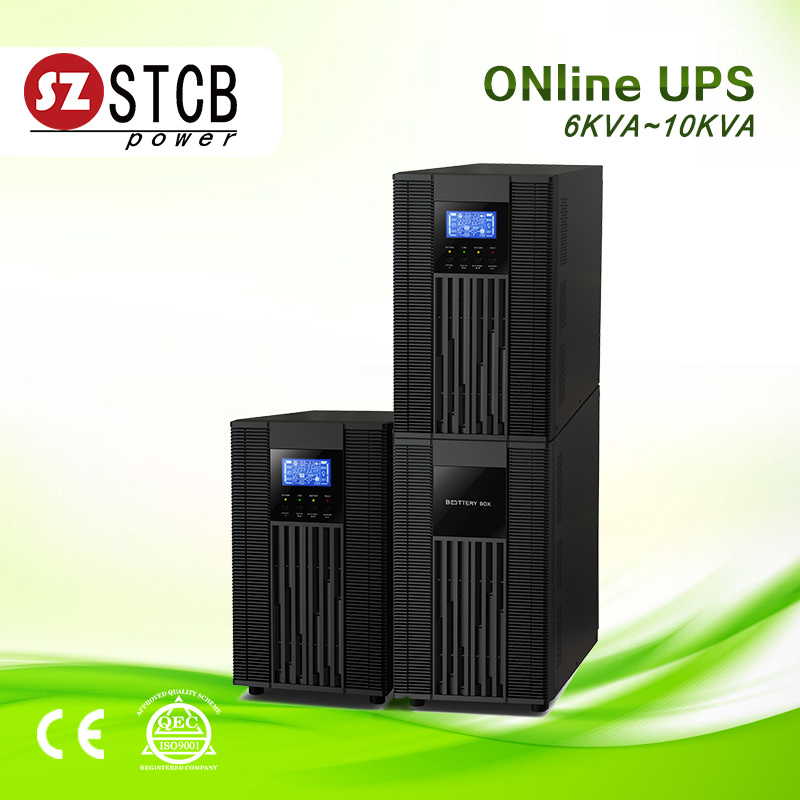

Double Convertion 0ms Transfer Time Online UPS 10kVA
Main Features:
1. True double-conversion
2. Microprocessor control optimizes reliability
3. Input power factor correction
4. Output power factor 0.8
5. Wide input voltage (110 v- 300 v)
6. Converter mode available
7. ECO mode for energy saving
8. Generator compatible
9. Charger capacity expansion to 6A for long-run models
10. Smart SNMP works well with either USB or RS-232 together
11. Comprehensive display allows easy monitoring and access of UPS status
Specification:
| MODEL | GH11- 6K(L) | GH11- 10K(L) |
| 6000 VA / 4800 W | 10000 VA / 8000 W |
| INPUT |
| Nominal Voltage | 208/220/230/240VAC |
| Input voltage range | 175V~290VAC ± 3% |
| Frequency Range | 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz |
| Power Factor | 0.99~1 |
| OUTPUT |
| Nominal Voltage | 208/220/230/240VAC ± 1% |
| Frequency Range | 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz |
| Current Crest Ratio | 3:1 (max.) |
| Harmonic Distortion | ≤3 % THD (Linear Load)
≤6 % THD (Non-linear Load) |
| Transfer Time | Zero |
| Waveform | Pure Sine wave |
| EFFICIENCY |
| Line Mode | 89% | 90% |
| Battery Mode | 88% | 89% |
| BATTERY |
| Standard Model | Battery | 12 V / 7 AH | 12 V / 9 AH |
| Numbers | 16 | 16 |
| Recharge Time | 9 hours recover to 90% capacity |
| Charging Current | Default:1.0 A ± 10%,
Max.:2.0A ± 10% | Default:1.0 A ± 10%,
Max.:2.0A ± 10% |
| Long-run Model | Battery | Depending on applications |
| Numbers | 16/20pcs (adjustable) |
| Charging Current | Default:4.0 A ± 10%,
Max.:6.0A ± 10% | Default:4.0 A ± 10%,
Max.:6.0A ± 10% |
| PHYSICAL |
| Standard Model | Dimension | 369*190*688mm | 442*190*688mm |
| Net Weight | 61kg | 66kg |
| Long-run Model | Dimension | 369*190* 318mm | 442*190* 318mm |
| Net Weight | 12kg | 16kg |
* Product specifications are subject to change without further notice
Our services:
1. OEM&ODM services acceptable.
2. 1% pcb board provided .
3. Lots of cooperated agent for shipping by sea or by air.
4. 1year warrenty , if it is quality problem , we will provide the parts for free .
FAQ:
Q1: Why you should choose us?
---16 years UPS experiences
---Professional team for both oversea and domestic market
--UPS provider of SCO meeting 2015 and Shanghai-Kunming high-speed railway project
---Qualified product plus competitable prices
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 12-24 months warranty since the delivery date and free maintenance /
replacement during warranty period.
Q3: What kind of certification you have?
---ISO9000, CE,ROHS,UL,and so on
Our products could pass different labor testing according to different countries' requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days; customized products could be
developed within 45-60days.
