Double Ended Shear Beam Load Cells for on Board Vehicle Weighing Applications

Name: Double Ended Shear Beam Load Cells for on Board Vehicle Weighing Applications
Brand: all-electronics-online.com
SKU: 680502621
Availability: InStock
Rating: 4.3 (32 reviews)

Price:	US $ 75/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-43B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Truck Scale
Size:	240mm102mm229.5mm
Defend Grade:	IP66 & IP68
Type:	Double Shear Beam Type

Product Description

Double Ended Shear Beam Load cells for on board vehicle weighing applications

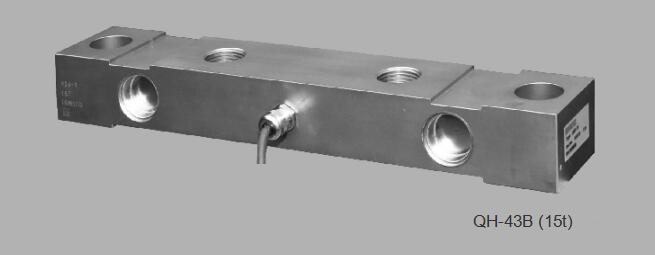

QH-43B Beam Type Load Cell

The QH-43B range of double ended shear beam load cells is engineered for industrial vehicles and agricultural machinery where high accuracy, high capacity payload control is needed in demanding conditions.

The QH-43B provides a very low profile design which allows for a wide range of installation options for on board vehicle weighing applications.

Features

Stainless steel construction
Hermetically sealed
Low profile
designed for on-board vehicle weighing
Wide range of capacities

Specifications:

Maximum capacity	(Emax)	t	7.5		15	25
Accuracy class					GP
Temperature effect on minimum dead load output	(TC0)	%_*RO/10°C		± 0.0400
Temperature effect on sensitivity	(TCRO)	%_*RO/10°C		± 0.0200
Combined error		%	± 0.15		± 0.25	± 0.5
Creep error (30 minutes) / DR		%_*RO		± 0.0600
Rated Output	(RO)	mV/V		2 ± 0.1%
Zero balance		%_*RO		+/- 2%
Excitation voltage		V		5...10
Input resistance	(RLC)			800 ± 50
Output resistance	(Rout)			700 ± 2
Insulation resistance (100 V DC)		M			≥ 5000
Safe load limit	(Elim)	%*Emax		200
Ultimate load		%*Emax		300
Safe side load		%*Emax		100
Compensated temperature range		°C			-10...+40
Operating temperature range		°C			-30...+70
Load cell material					stainless steel 17-4 PH
Sealing					complete hermetic sealing
Protection according EN 60 529				IP68 (up to 2m water depth)

Electrical connection and Dimensions:

25 T Demensions:

Application

Under body vehicle weighing systems such as RCV's, tipper trucks and agricultural machinery including muck spreaders, trailers and feed mixers.
