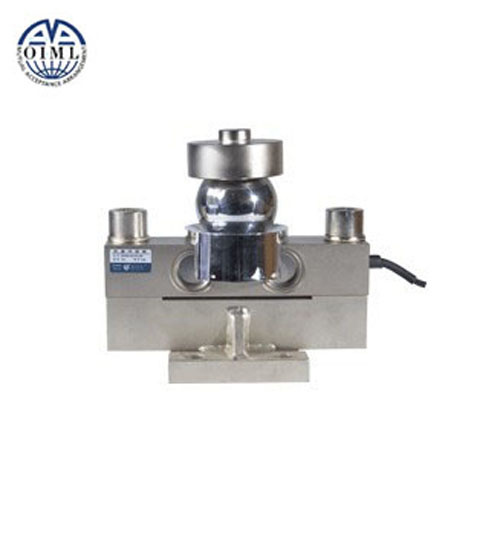

Double Ended Shear Beam Truck Scale Load Cell

Name: Double Ended Shear Beam Truck Scale Load Cell
Brand: all-electronics-online.com
SKU: 678355252
Availability: InStock
Rating: 4.8 (71 reviews)

Price:	US $ 50-100/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HM9B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CE:	OIML

Product Description

Name: Alloy steel load cell
Modl: HM9B
Capacity:10t to 50t.
High accuracy.
Alloy steel construction.
Easy installation, reliable performance.
With OIML approval.
HM9B load cell are available in the capacities 10t to 50t.
Alloy steel construction, nickel plated , hermetically welded,oil-proof,waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments.
Dual shear beam, Suitable for electronic truck scales,railway scales and other electronic weighing devices.
It is safety and anti-explosion product that can be used in atrocious weather and hazardous areas.

Capacity	t	10/20/25/30/40SE/40/50
Accuracy		C1	C2	C3	A5M	B10M
Approvals				OIML R60 C3
Maximum number of verification intervals	n max	1000	2000	3000	5000	10000
Minimum load cell verification interval	v min	Emax/3000	Emax/5000	Emax/7500	Emax /15000	Emax /10000
Combined error	(%FS)	≤±0.050	≤±0.030	≤±0.020	≤±0.026	≤±0.050
Creep	(%FS/30min)	≤±0.038	≤±0.024	≤±0.016	≤±0.017	≤±0.040
Temperature effect on sensitivity	(%FS/10ºC)	≤±0.028	≤±0.017	≤±0.011	≤±0.013	≤±0.040
Temperature effect on zero	(%FS/10ºC)	≤±0.047	≤±0.023	≤±0.015	≤±0.014	≤±0.020
Output sensitivity	(mv/v)	2.0±0.002	2.3±0.002	2.4±0.002	1.9±0.002	1.8±0.002
Input resistance	(Ω)	700 ±7			775 ±5	750 ±7
Output resistance	(Ω)	700 ±7
Insulation resistance	(MΩ)	≥ 5000(50VDC)
Zero balance	(%FS)	1.5
Temperature, compensated	(ºC)	-10~+40
Temperature,allowed	(ºC)	-35~+65
Excitation, Recommended	(V)	5~12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300

Hangzhou Gongheng Weighing Equipment Co., Ltd is a Hi-tech enterprise specialized in producing, researching, developing, and selling the electronic scales, crane scale, floor scale, platform scale, pallet truck scale, truck scale and weighing accessories and so on. We have a number of experienced and capable technical personnel and advanced technology, innovated designs, superior production equipment and self-contained QC system, and provides high quality products, best price and service.
We produces the products that are characterized by variety, complete specification, quick delivery, high quality, best price and have been widely praised by many users and distributors. In addition to the standard scales for common use, the company can design and produce products required by different users and meet their special demand. We have set up a well-managed network of in-sale and after-sale service as well as a complete mechanism for service supervision and hope to co-operate with the distributors by supplying the high quality crane scale, floor scale, platform scales at competitive price and on the principle of mutual benefit. Sincerely look forward to cooperating with you, welcome you into our HZGH.
