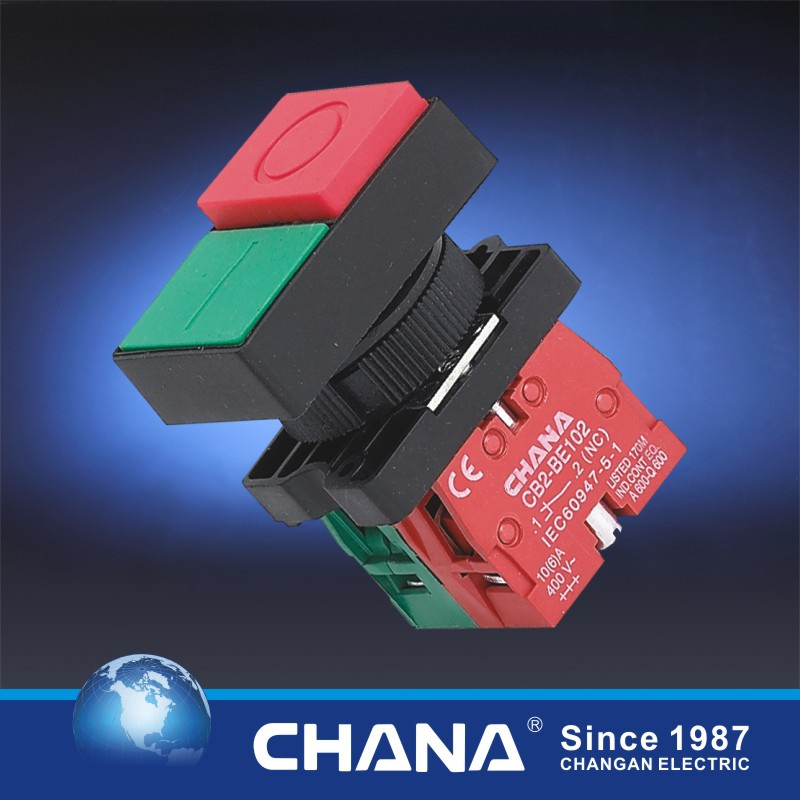

Double Head Type Pushbutton Switch

Double Head Type Pushbutton Switch
Price: US $ 0.95-1.8/Piece
Min Order: 200/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: CB2-EL Series
Type: Normal Open
Usage: Control Button
Kind: Double-pole on-off Switch
Brand: Chana or OEM
Certification: RoHS

Product Description

1. Application

CB*-series pushbutton switches are used in industrial for controlling circuits of AC 50Hz or 60Hz,rated operation voltage 380v or below and DC operational voltage 220v or below for controlling in magnetic starter,contactor,relay and other electrical circuits.The buttons indicator can also be used in the place with indicated light or signal.They meet with the standards:IEC60947-5-1


2. Main technical parameter

Operation temperature:-5ºC~+40ºCPower-frequency withstand voltage:2500V,1min
Operation humidity:45%~85%ELECTRIC durability:50*104
contact resistance:≤50mΩDegree of protection:IP40
Rated insulation voltageUi   660V
Conventional thermal currentIth   10A
Rated operation voltage Ue   380V  220V  110V  48V  24V
Rated operation currentAC-15  2.5A  4.5A   6A    8A    -
DC-13   -     0.3A  0.6A  1.3A  2.5A

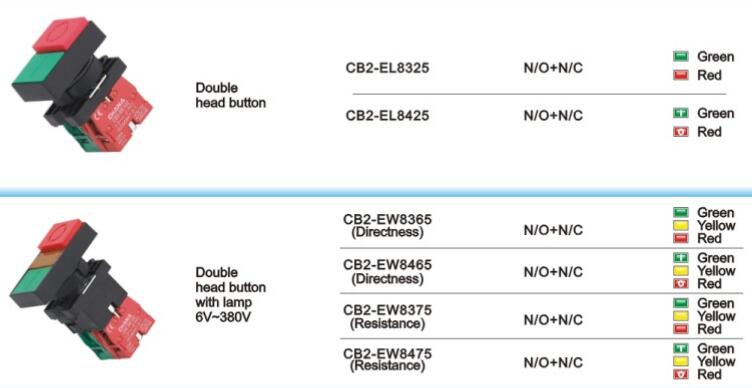

3. Product Parameter

    Plastic type           Description               Type                    Scheme            Color




4. How to Order?

1. Let us have the details of your requirements.
2. Price-list will be sent for confirmation.
3. After prices confirmed,PI will be sent for payment.
4. After get your Deposit,production will be arranged within one day.
5. When goods ready,all the documents for custom clearance will be scanned to you for the balance payment.
6. OEM/ODM is acceptable



5. Shipping:

1. Normally by SEA From NINGBO TO ...
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.




6. Payment:

1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptable




7. Warranty:

1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods




Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
