Double Jacket Dielectric 12 Cores Singlemode Optical Fiber Cable

Name: Double Jacket Dielectric 12 Cores Singlemode Optical Fiber Cable
Brand: all-electronics-online.com
SKU: 818232045
Availability: InStock
Rating: 4.6 (125 reviews)

Price:	US $ 0.2-0.6/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYFTY53-G
Fiber Count:	24 Cores 48 Cores 96 Cores
Fiber Type:	G652D/G655
Fiber:	Singlemode
Strength Member:	Glass Yarn
Jacket:	Double PE Jacket
Installations:	Duct/Direct Burial
Installation Temperature:	-40~+70
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Brand:	Yueyou
Sheath Material:	PE Material

Product Description

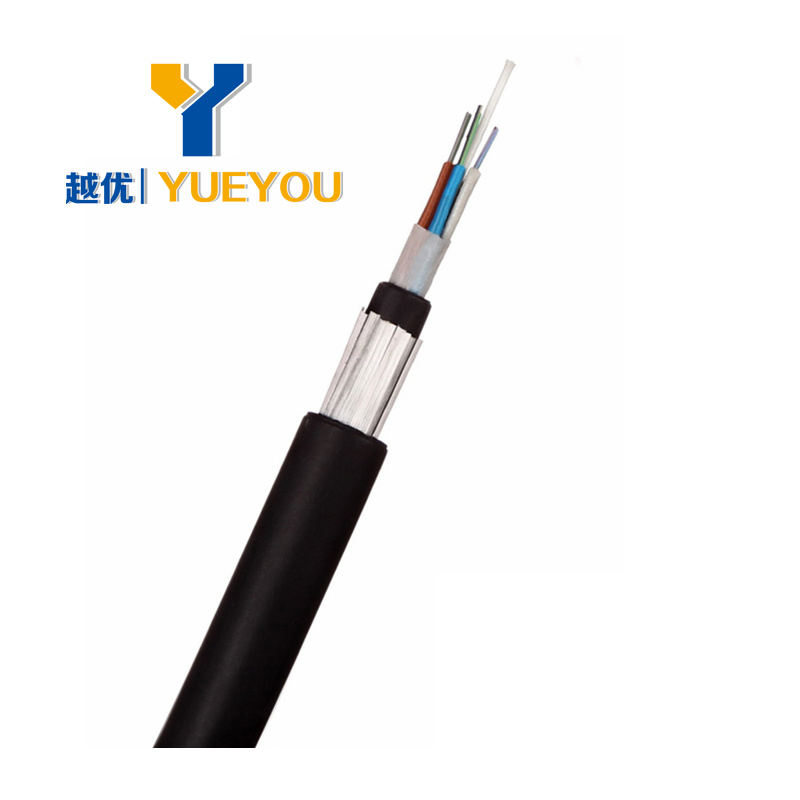

Double Jacket Dielectric 12 Cores Singlemode Optical Fiber Cable

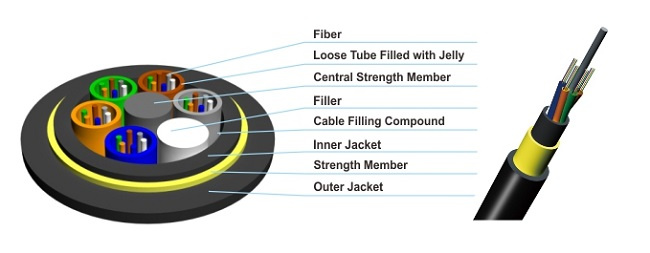

Description:

The fiber are positioned in a loose tube made of high modulus plastic,PBT loose tube are filled with
water-resistance filling compound,The tubes (and fillers) are stranded around a FRP (Fiber Reinforced
Plastic) as a non-metallic central strength member into a compact and circular cable core. After the
cable core is filled with filling compound. stranded layer of glass yarns are applied over the inner
sheath as strength member, Outer sheath is made of UV resistance PE jacket.

Features:

Fiber count: 2-144 Fibers in Gel filled loose tube.

Fiber selection: Single mode or Multimode.

Strength member: Glass Yarn.

Sheath: Double PE jacket.

Gel filled loose tubes for a critical protection of fiber.

Double Jacket offer additional mechanical protection and installation options.

Sheath materials suit a variety of installation environments, UV and moisture resistance design.

IEC 60794-1 standard.

Applications:

Duct, Aerial, underground conduit.

Fiber datasheets:

Fiber		G.652D	G.655	50/125um	62.5/125um
Attenuation(+20ºC)	@850nm			≤3.0dB/km	≤3.3dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.40dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth	@850nm			≥500MHz.km	≥200MHz.km
Bandwidth	@1300nm			≥500MHz.km	≥500MHz.km

Cable datasheets:

Fiber count	Cable diameter(mm)	Cable Weight(kg/km)	Allowable Tensile Load (N)	Allowable Crush resistance (N/100mm)	Dynamic and Static Bend (mm)	Installation Temperature Range(ºC)
2-36	12.0±0.2	115±10	3000/1000	3000/1000	20D/10D	-40~+70
38-72	12.6±0.2	120±10	3000/1000	3000/1000	20D/10D
74-96	13.2±0.2	140±10	3000/1000	3000/1000	20D/10D
98-120	14.8±0.2	160±10	3000/1000	3000/1000	20D/10D
122-144	16.3±0.2	190±10	3000/1000	3000/1000	20D/10D

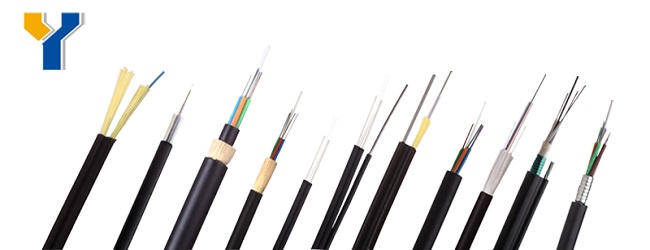

More popular products:
