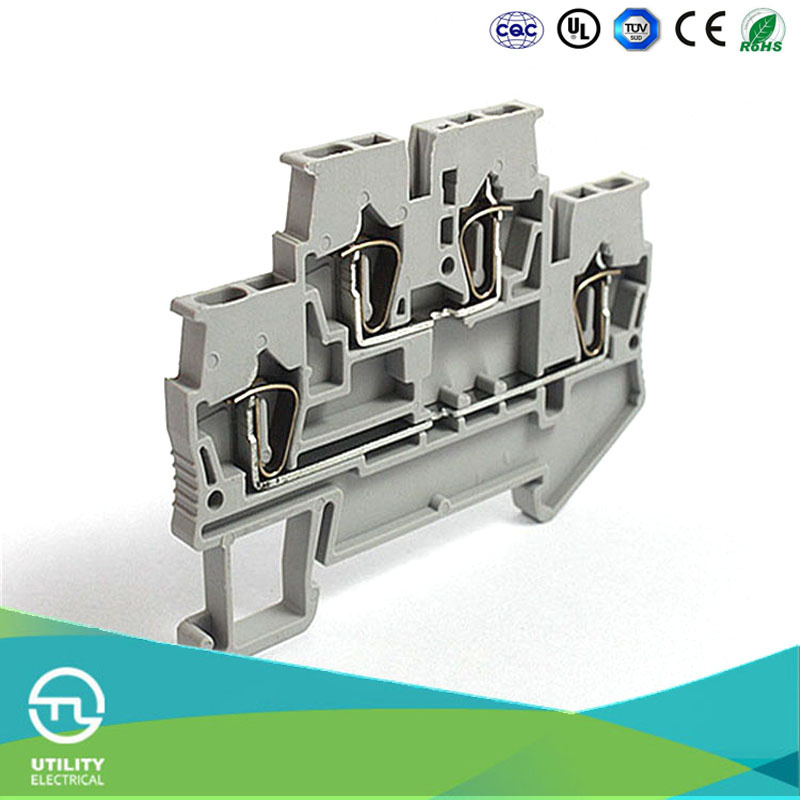

Double Layer DIN Rail Mount Spring Terminal Blocks Jut3-1.5/2

Double Layer DIN Rail Mount Spring Terminal Blocks Jut3-1.5/2
Price: US $ 0.306-0.354/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: JUT3-1.5/2
Wire Size: AWG 26-16
Rigid Cable: 0.14-2.5mm2
Soft Cable: 0.14-1.5mm2
Color: Grey
Standard: IEC 60947-7-1
Application: Wer Supply
Connection Mode: Push-Pull Connection
Shape: Rectangle
Environmental Protection: RoHS
Contact Termination Form: Spring
Type: Spring Type Dinrail Terminal Block
Brand: Utl

Product Description

Features:

Double-layer return-pulling spring terminal can be connected with two different potentials on one terminal,compared with single-layer terminal with the same rated section and thickness, the double-layer wiring could save 50% of track length, the upper/lower layer of double-layer terminal both can be bridge-connected and marked in order to finish different wiring duty, Making lead circuit ownership
relationship clearer for being distinguished.
Model No.JUT3-1.5/2
Item name JUT3 Spring Type Terminal Series
ColorGrey as photo,or OEM
Size TH:4.2 W:67.5 H:49
TerminalReturn-puling type spring termial,installed on tracks NS35-U type
Rigid/soft Cable0.14-2.5mm2/0.14-1.5mm2
Conductor Size26-16AWG
Bridging liaison componentCould form bridging by jumping some terminal position
Voltage rating/Current rating500V/17.5A
Payment termA.Below US$300,western,paypal accepted
B.Above US$300,bank account
CertificateTUV/CE/UL/VDE/RoHS/SGS/CCC/CQC  approved standard
Logo      Customized logo are available as request
Design ability        We can supply sample,OEM&ODM is welcome

Features:

UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
