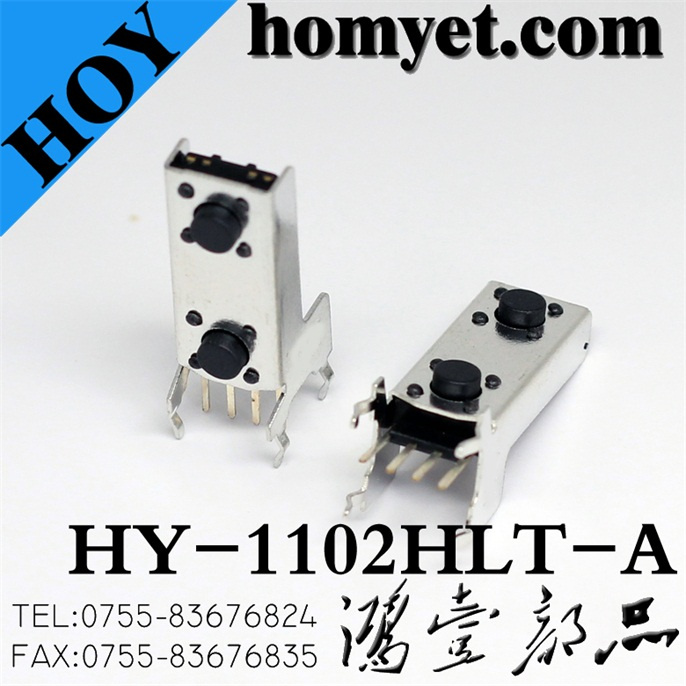

Double Layer DIP Type Vertical Tact Switch Micro Switch

Prod Model:	HY-1102HLT
Type:	Standard
Installation Form:	Insert Welding
Structure:	2-Point Contact
Package:	SMT Chip Package
Shape:	Vertical Type
Shrapnel:	Gold-Plated
Certification:	RoHS
Application:	Electronic and Electrical Equipment

Product Description

Double layer DIP Type Vertical Tact Switch Micro Switch
-----Good Performance&Long life&Install easily
Customizing the height&operating force&Button shape

Material
1. Keystoke: PA66
2. Base: PPA
3. Contact: Brass, Ag-Plated
4. Cover Plate: PPA
5. Shrapnel: Copper
6, Shell: PPA

Specification:
They can operate all types of electronic equipment such as the computer, telephone, PDA, DVD digital camera, audio equipment, instrument and meter equipment, autoimmunization equipments control etc.

Rated Current Capacity	DC 12V 0.5A
Contact Resistance	100mΩ Max
Insulation Resistance	100mΩ Min
Withstand Voltage	AC 250V
Press Force	160gf, 180gf, 250gf
Life	50,000 cycles Min
Travel	0.25+-0.1mm
Temperature	-25'C-85'C

Welding conditions
1. Hand soldering
Use a soldering iron of 30 watts, controlled at 350º C approximately 3 seconds while solder applying
2. Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260º C max. Condition for soldering temperature profile

Packing&Shipping:
1) Packaging: Carton
2) Shipping:
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms: T/T, L/C, PayPal; 20% deposits; 80% balance before delivery
