Double Layer LED PCB Board with Aluminum Base
Price: |
US $ 0.15-0.38/Piece |
Trade Terms: |
FOB,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Prod Model: |
Fl9856 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Board Material: |
Aluminum |
Board Thickness: |
1.5mm |
Copper Thickness: |
0.5oz |
Min. Hole Size: |
0.25mm |
Min. Line Width: |
0.15mm |
Min. Line Spacing: |
0.15mm |
Surface Treatment: |
HASL Lead Free |
Lead Time: |
5-7 Working Days |
Small Order: |
Accepted |
PCB Type: |
Aluminum LED PCB Board |
Type: |
Rigid Circuit Board |
Flame Retardant Properties: |
V0 |
Material: |
Aluminum |
Dielectric: |
Aluminum |
Brand: |
Fastline |
Product Description
Products Introduction

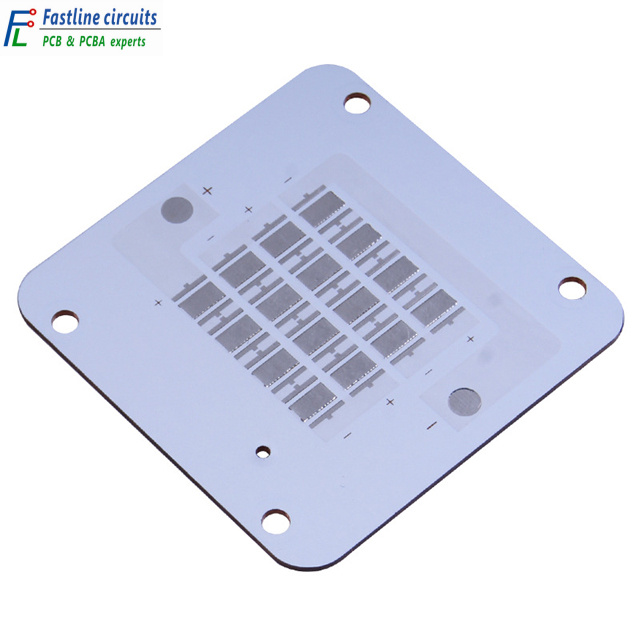

TECHNICAL DETAILS OF Fastline Aluminum PCB |
MATERIALS | Aluminum |
MAXIMUM LAYER COUNT | 4 Layers |
MAXIMUM PANEL SIZE | 17" x 23" (432 x 584 mm2) |
MIN. BOARD THICKNESS | 1.0mm Al, 4 mils (0.1 mm) FR4 |
COPPER CLAD (inner) | 1/2 oz, 1 oz, 2 oz, 3 oz, 4oz |
COPPER CLAD (outer) | 1/2 oz, 1 oz, 2 oz, 3 oz, 4 oz |
SURFACE FINISHES | ENTEK 106A, Immersion Gold, HAL, immersion silver |
SOLDER MASK | LPI: Taiyo PSR 4000, Tamura DS2200, Probimer 77MA |
MINIMUM TRACE (width) | 12.0 mils (0.30 mm) |
MINIMUM TRACE (spacing) | 12.0 mils (0.30 mm) |
MINIMUM PAD-TO-PAD TOL. | ± 3 mils (± 0.76 mm) |
HOLE SIZE TOLERANCE (NPTH) | ± 2 mils (± 0.05 mm) |
HOLE SIZE TOLERANCE (PTH) | ± 3 mils (± 0.076 mm) |
MINIMUM HOLE SIZE | 20 mils (0.50 mm) |
OUTLINE DIMENSIONAL TOL. | < ± 10 mils (0.25 mm) |
IONIC CLEANLINESS | < 5 mg/in2 of NaCl (0.775 mg/cm2) |
IMPEDANCE CONTROL | ± 10% (Differential) |
WARPAGE | < 1% |
Applications:LED Lighting



Features-Our Products Advantage
1. Over 10 years experience manufacturer in led aluminum pcb and pcb field.
2. Big scale of producing makes sure that your purchase cost is lower.
3. Advanced production line guarantees stable quality and long life span.
4. Design and produce almost any PCB as your requirement.
5. 100% test for all customized pcb products
Packaging & Shipping
Inner packing : Vacuum packing,Plastic bag
Outer packing : Standard carton packing
Shipping type : UPS , DHL ,FedEx , EMS, China Post Air Mail etc. You can choose the shipping cost as you want .

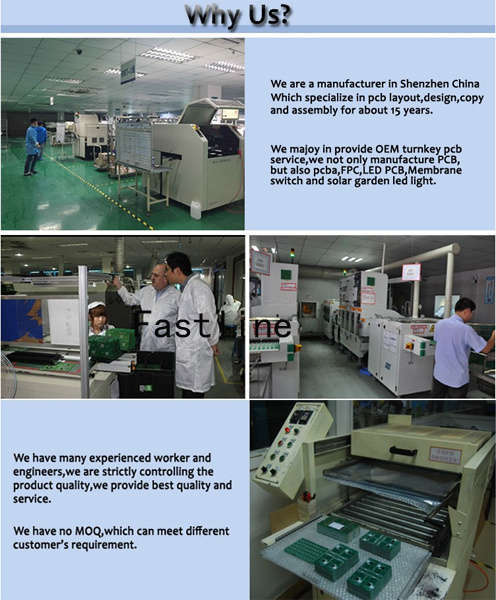

Can You Show Me some Picture of the factory?

Why Choose you ?

FAQ
Q1: What's your minimum order quantity?
A1: No MOQ , 1 pcs is accepted .
Q2: what file we should offer?
A2: PCB:Gerber file is better,( Protel ,power pcb,PADs file), PCBA : Gerber file and BOM list.
Q3:No PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A3: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB layout and work out the PCB files, then produce for you.
Q4: What payment terms do you have?
A4: For small orders, we usually prefer Paypal and Western Union; For bigger order,pls pay by TT.
Q5: How about the shipping method?
A5:We have stable cooperationship with DHL, Fedex, EMS, UPS, TNT and
other air flight way or sea freight company.Usually we will quote you the most
reasonable shipping method according to your country, good types, weight and
requested delivery time.
How to Contact Us?
Would like to know more about the product? Send us inquiry, click "Send" now!
Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.
And provides "PCB One-stop PCB solution" to meet customers' diverse demands.
Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.
Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
