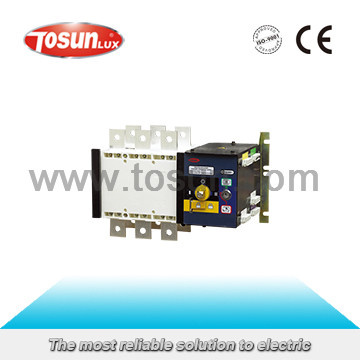

Double Power Automatic Changeover Switch

Name: Double Power Automatic Changeover Switch
Brand: all-electronics-online.com
SKU: 765492775
Availability: InStock
Rating: 5 (114 reviews)

Price:	US $ 60-1000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HGLD-250A 3P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Low-voltage
Series:	Three
Certification:	CE

Product Description

Conventional Heat Current		32	40	63	80	100	125	160	250	400	630	1000	1250	1600	2000	2500	3200
Rated Insulation Voltage (V)		750								1000
Dielectric Strength (KV)		3								5
Rated Impact Tolerance Voltage (KV)		8								12
Rated Working Current (A)	AC-31	32	40	63	80	100	125	160	250	400	630	1000	1250	1600	2000	2500	3200
	AC-35	32	40	63	80	100	125	160	250	400	630	1000	1250	1600	2000	2500	3200
	AC-33	32	40	63	80	100	125	160	250	400	630	1000	1250	1600	2000	2500	3200
Rated Short Time Tolerance Current (KV)		7	7	7	7	7	9	9	9	13	13	26	26	26	26	26	26
Rated limited Short circuit Current (KV)		70	70	70	70	70	70	70	70	100	100	120	120	120	120	120	120
Operating Torque (N.m)		12	12	12	12	12	19	19	26	39	39	50	50	50	80	80	80
Dissipation of Energy (W)	Start	300	300	300	300	300	325	325	325	355	355	440	440	440	600	600	600
Dissipation of Energy (W)	Normal	55	55	55	55	55	62	62	62	74	74	98	98	98	120	120	120
Transfer Timer(s)		0.45	0.45	0.45	0.45	0.45	0.45	0.45	0.45	0.6	0.6	1.2	1.2	1.2	1.5	1.5	1.5
Mechanical Life (times)		10000	10000	10000	10000	10000	10000	10000	10000	5500	5500	4000	4000	4000	3000	3000	3000
Weight(Kgs)	3P	7.2	7.2	7.2	7.2	7.2	8	8	8.2	14	15	30	34	42	85	79	120
Weight(Kgs)	4P	7.5	7.5	7.5	7.5	7.5	8.5	8.5	9	16	17	36	40	49	95	98	135

IF YOU ARE INTERESTED IN OUR PRODUCTS, PLEASE CONTACT WITH US. THANK YOU.

ABOUT US:

Wenzhou Tosun Electric Co., Ltd deals with numerous Electrical Products and LED Lights

in high quality, such as voltage stabilizers, circuit breakers, AC contractors, meters, relays, control units,

led spotling, led panel light.

1. Qualifications and Technological Strength: with full line of high-

tech production equipment and great strength of technology support , ,first class engineering team.

2. Products are novel in designs, excellent in workmanship and tope reliable in quality.

3. "SEMKO", "CB", "CE" and "IRAM", and other international quality approvals.

4. Always pays special attention to protecting the benefits of clients.

WHY US?

      1. Clients' benefit first.

       2. Experinced in the line for more than 21 years.

       3. Reasonable price and good source of raw material.

       4. A group of professional inspectors monitor quality.

       5. TUV, SEMKO, CE, CB, ROHS Approval for products.

       6. Unique design for packing.

       7. Experienced salesmen offer one-to-one service.

FOR MORE INFORMATION

www.tosun.com

www.tosunlux.com

We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.

· Qualifications and Technological Strength

We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "RoHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.

· Contact Us Today

We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.

Let's get busy and pull together to create a better future.
